Accessing Stored ZCS Information (w/ Progman v. 14 & 15)

Fig 1: Display Screen - New Session

Courtesy of BMW OF NORTH AMERICA, INC.

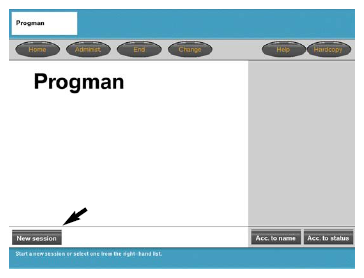

From the Progman startup window, select New session .

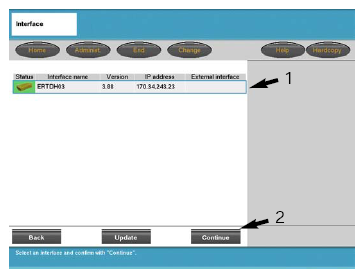

Establish a connection to the interface connected to the vehicle and select Continue .

Fig 2: Display Screen - Continue

Courtesy of BMW OF NORTH AMERICA, INC.

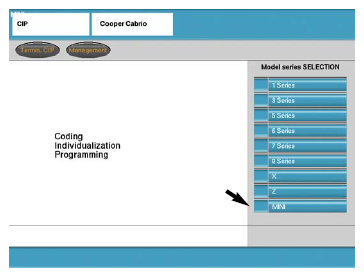

To perform the procedure from CIP the Model series must be selected.

Select the MINI .

Fig 3: Display Screen - MINI

Courtesy of BMW OF NORTH AMERICA, INC.

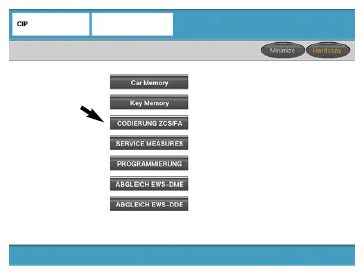

Select CodierungZCS/FA .

Advance screen to the right two times to enter the vehicle series selection screen.

Fig 4: Display Screen - CodierungZCS/FA

Courtesy of BMW OF NORTH AMERICA, INC.

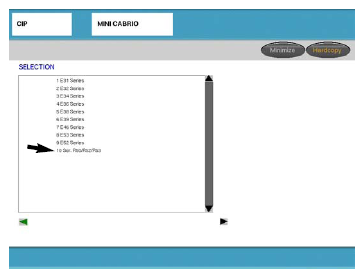

Select vehicle series.

Fig 5: Display Screen - Vehicle Series

Courtesy of BMW OF NORTH AMERICA, INC.

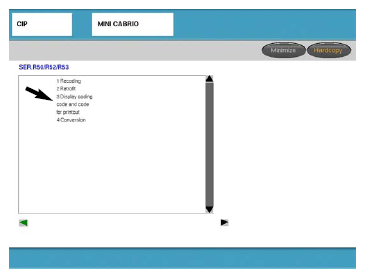

Select Display coding code and code for printout .

Fig 6: Display Screen - Coding Code And Code For Printout

Courtesy of BMW OF NORTH AMERICA, INC.

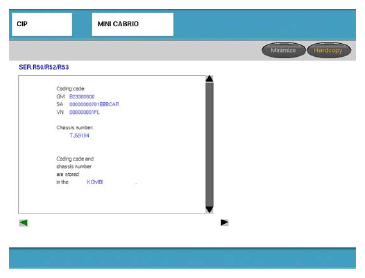

ZCS Information for vehicle is displayed along with the stored location.

Fig 7: Display Screen - ZCS Information For Vehicle Is Displayed Along With Stored Location

Courtesy of BMW OF NORTH AMERICA, INC.
