Electrical Component Locator: Motors
MOTORS LOCATION
| Component | Location |
|---|---|

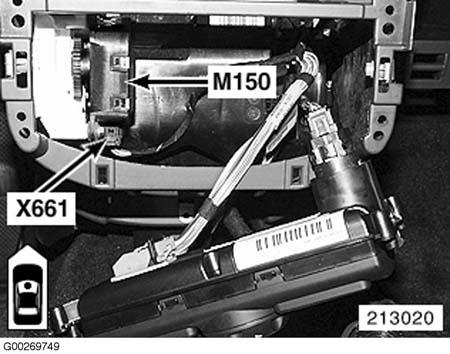

| Air Distribution Motor (M150) | Center console. See Figure . |

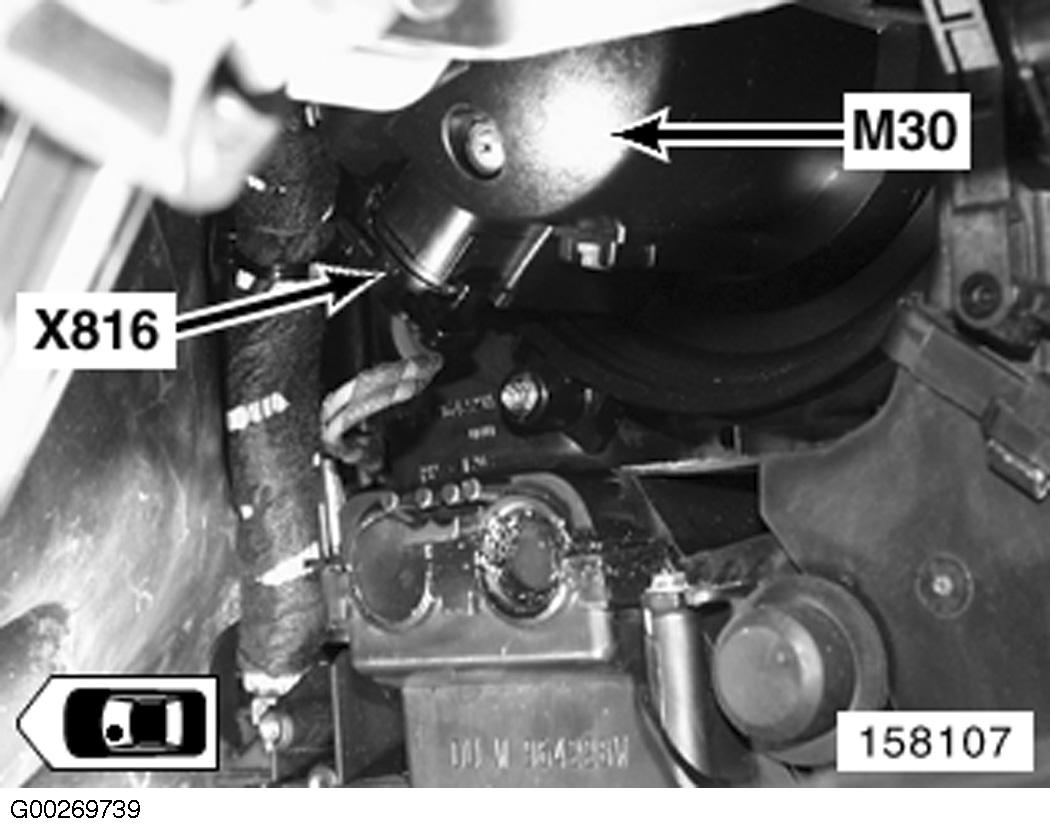

| Blower Motor (M30) (1.6L Supercharged) | Behind center of dash. See Figure . |

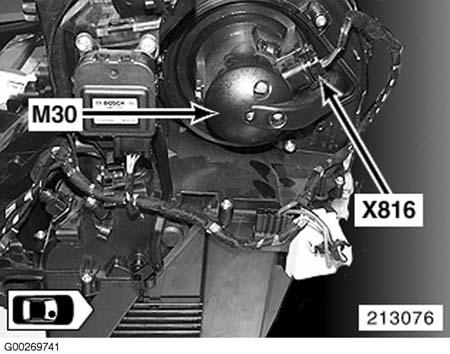

| Blower Motor (M30) (1.6L W/Automatic A/C) | Behind right side of center console. See Figure . |

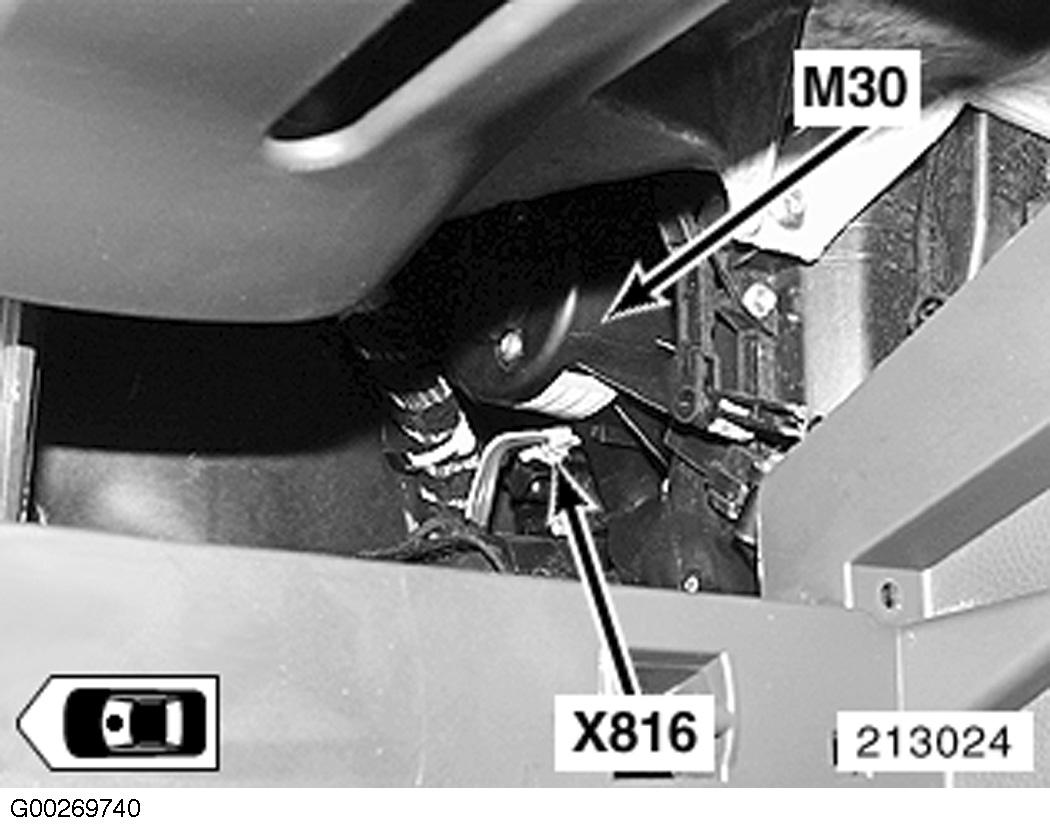

| Blower Motor (M30) (1.6L W/O Automatic A/C) | Behind center of dash. See Figure . |

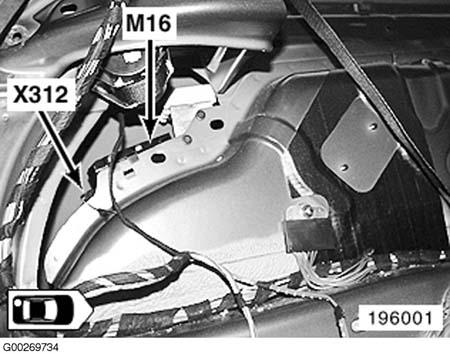

| Central Locking Drive, Fuel Filler Flap (M16) (Coupe) | Left rear side of luggage compartment. See Figure . |

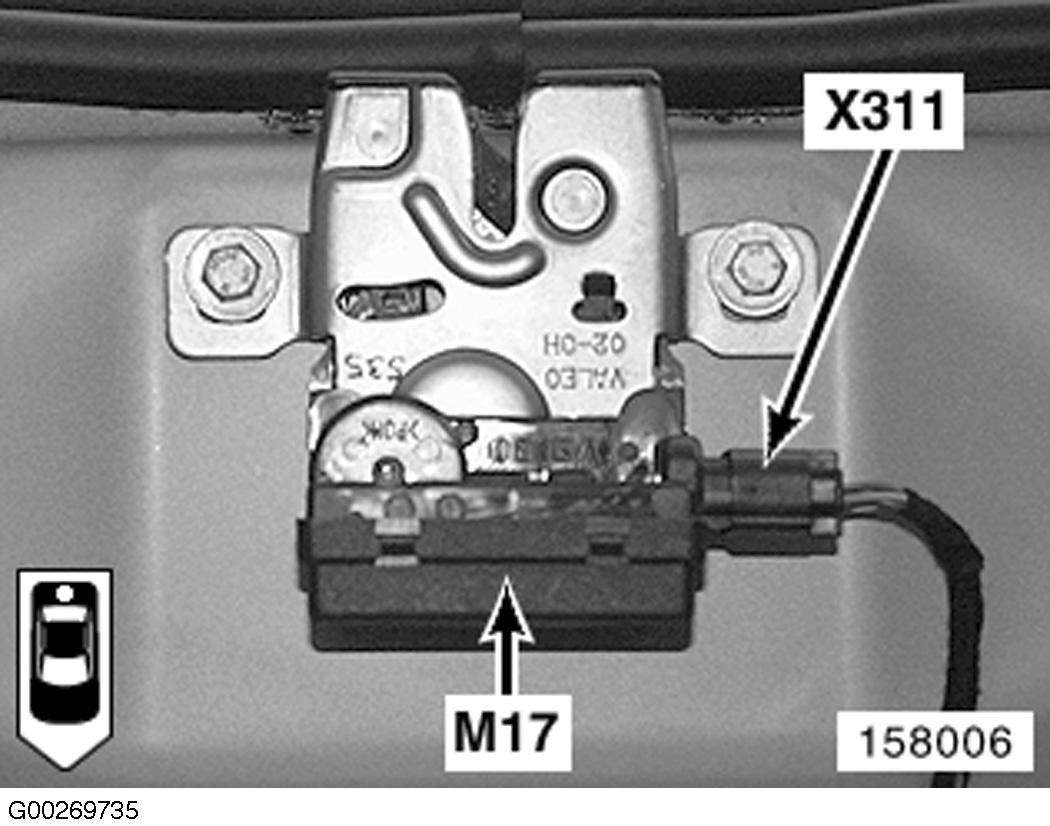

| Central Locking Drive, Trunk Lid (M17) | Rear apron. See Figure . |
| Central Locking Drive, Trunk Lid (M17) (Convertible) | Center rear of trunk. See Figure . |

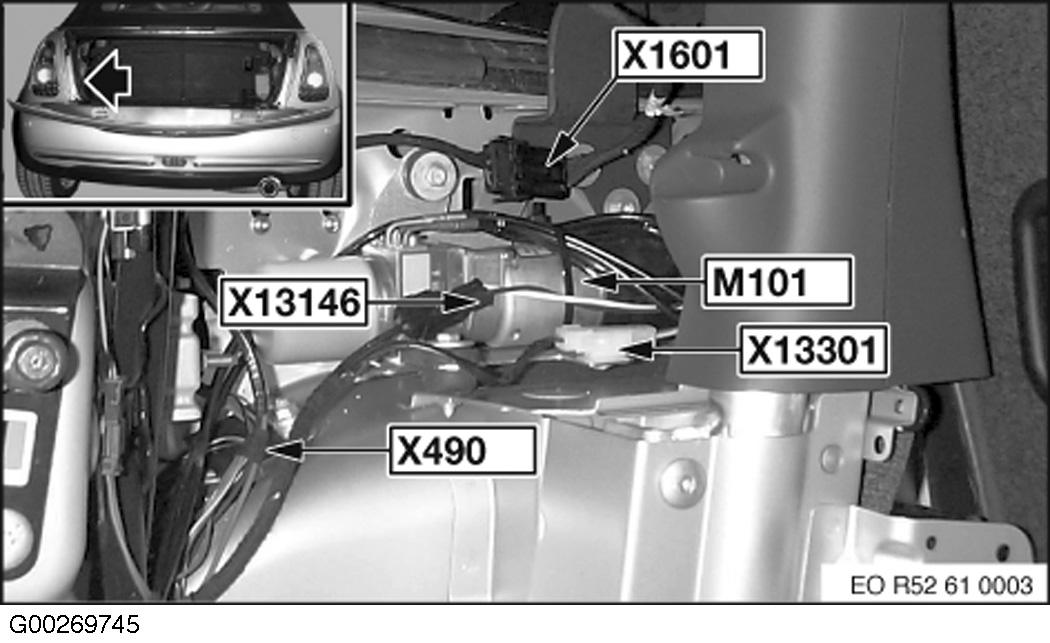

| Convertible Top Drive (M101) | Left rear trunk. See Figure . |

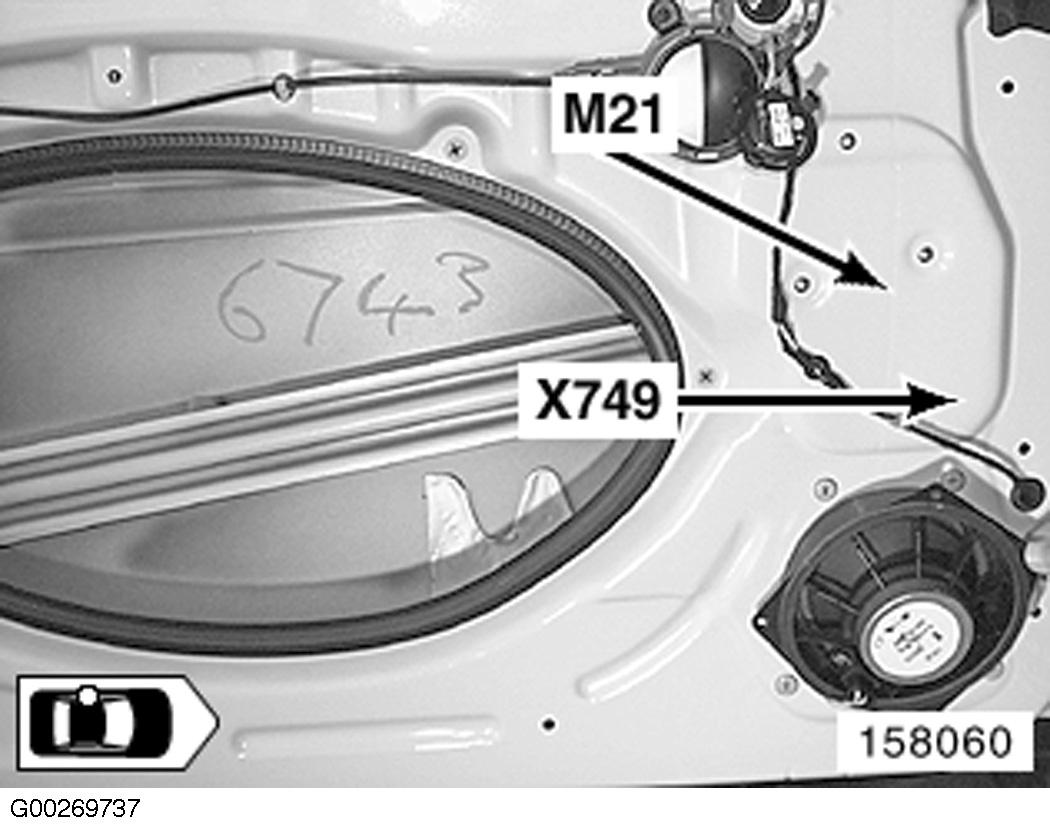

| Driver's Window Motor (M21) | Driver's door. See Figure . |

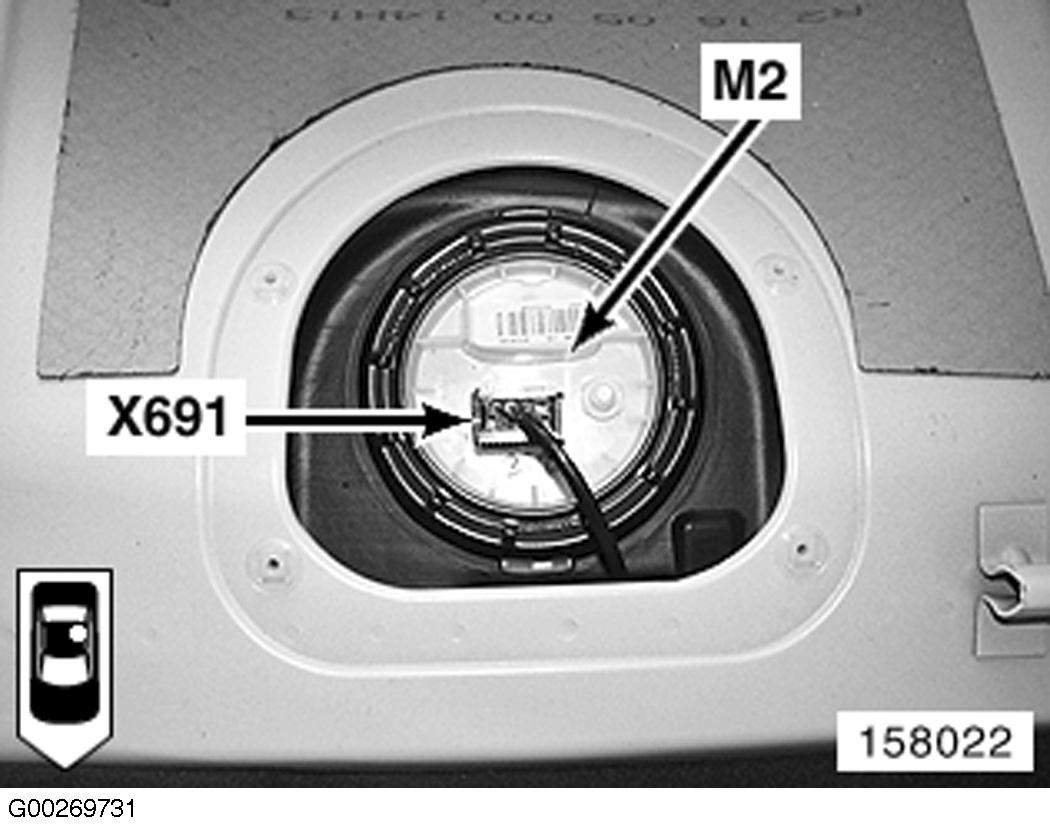

| Electric Fuel Pump (M2) | Under left side of rear seat. See Figure . |

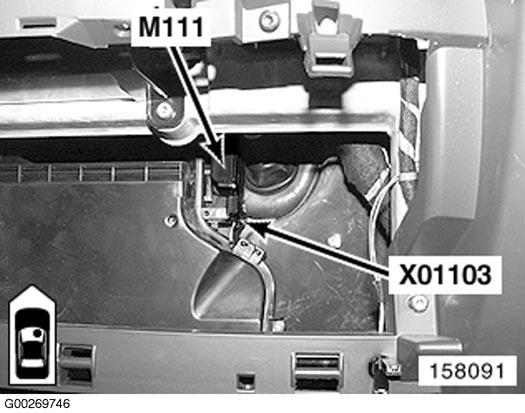

| Fresh Air/Air Recirculation Flap Motor (M111) | Behind glove box. See Figure . |

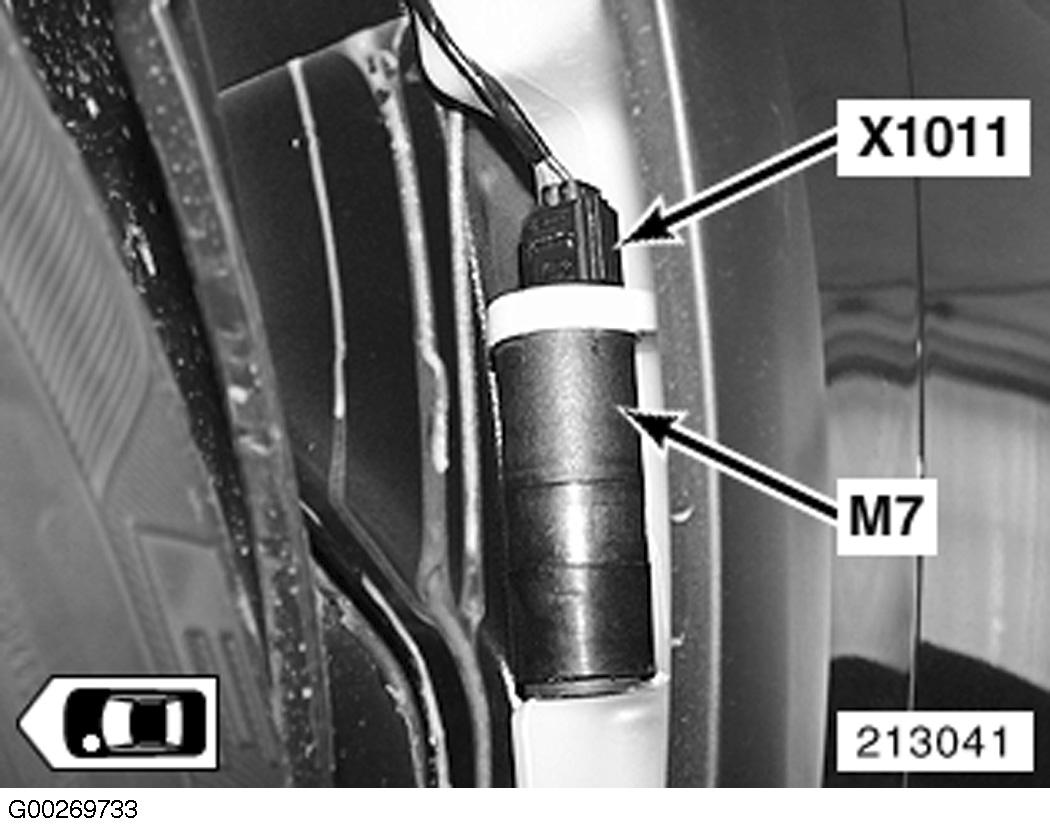

| Headlight Washer Pump (M7) | Left front wheelwell. See Figure . |

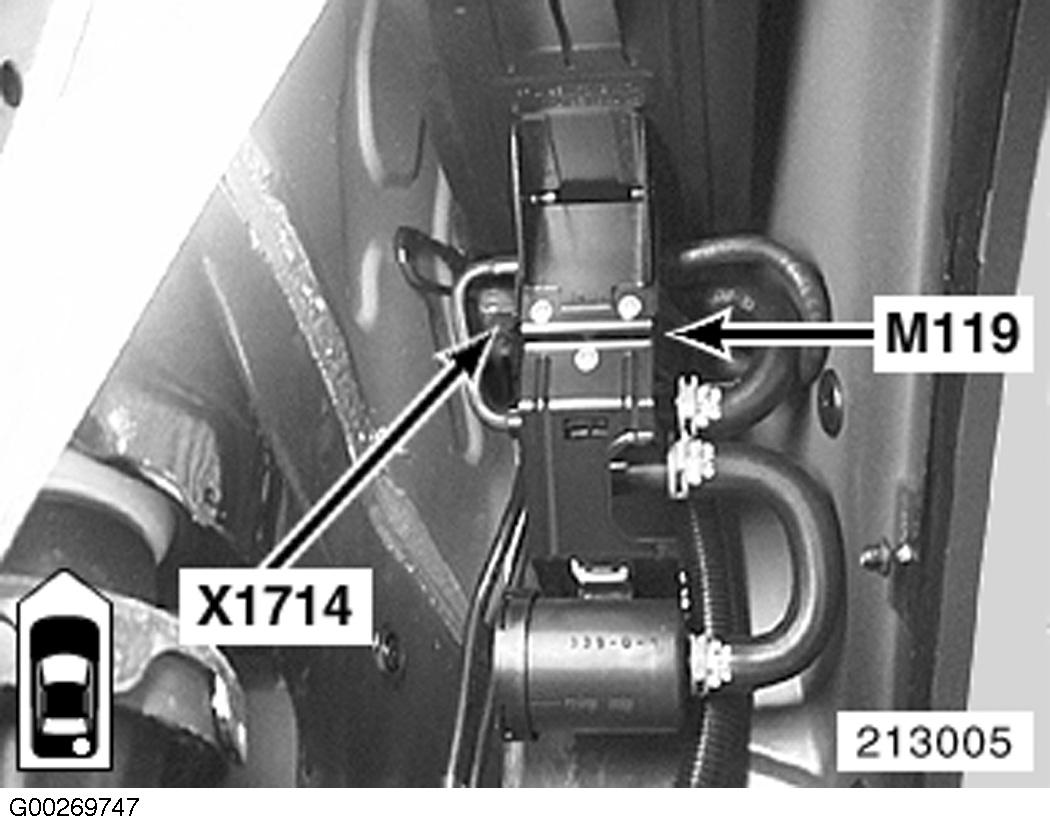

| Leakage Diagnosis Pump (M119) | Right rear wheelwell. See Figure . |

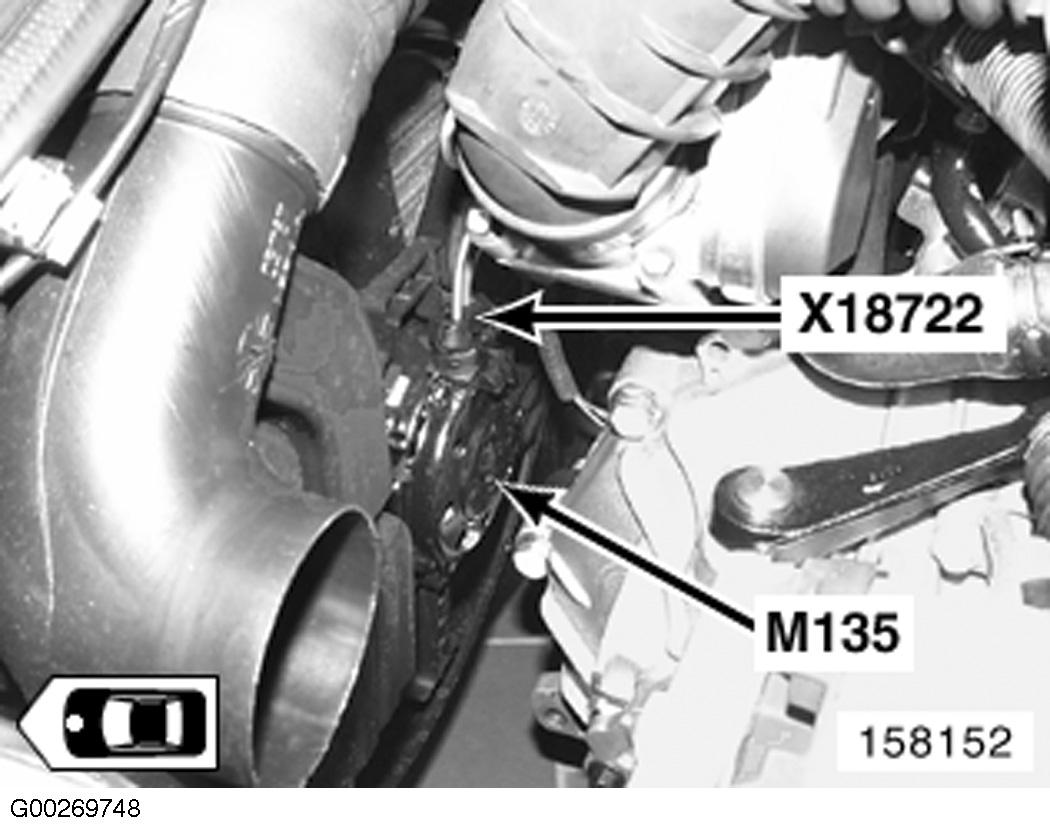

| Motor, Electric Fan I (M135) | Front of engine compartment. See Figure . |

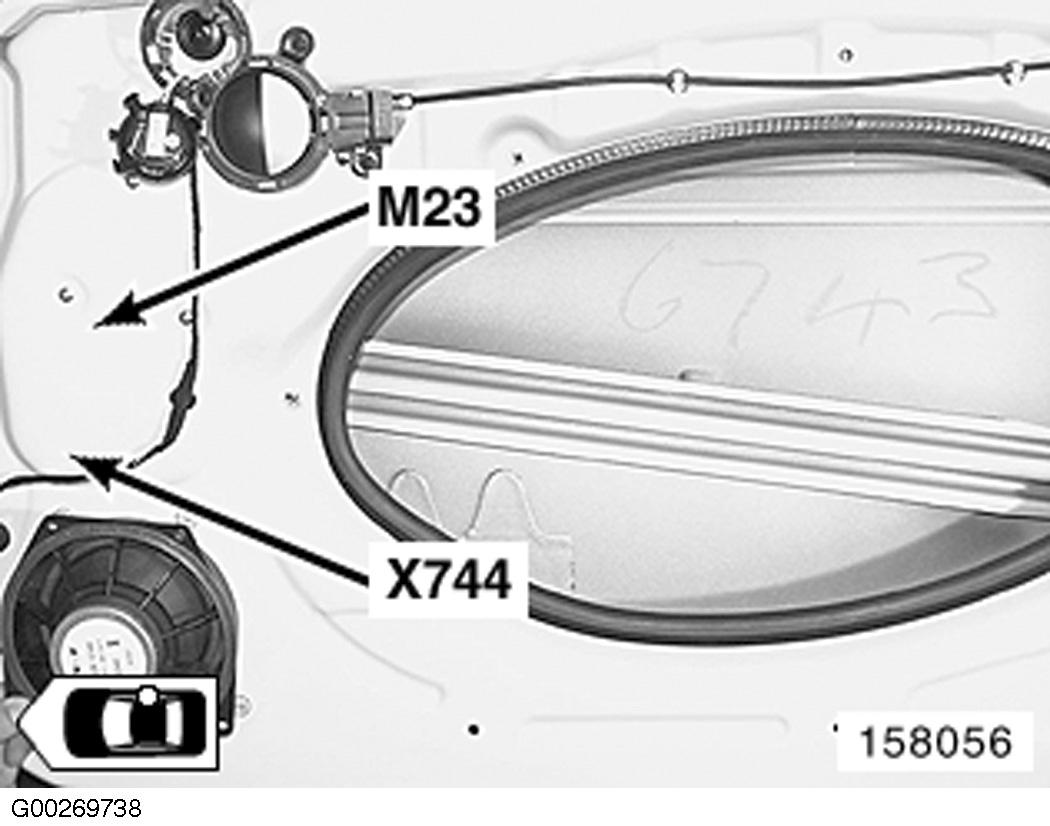

| Passenger's Window Motor (M23) | Passenger's door. See Figure . |

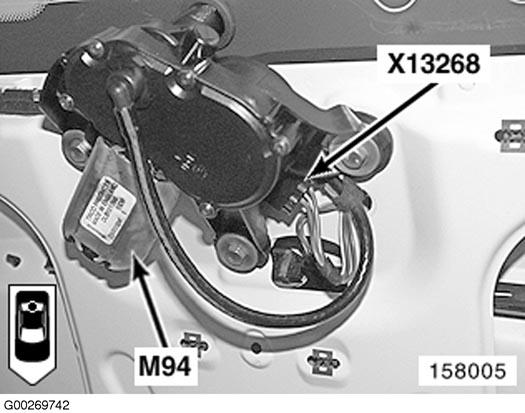

| Rear Window Wiper Motor (M94) | On lift gate. See Figure . |

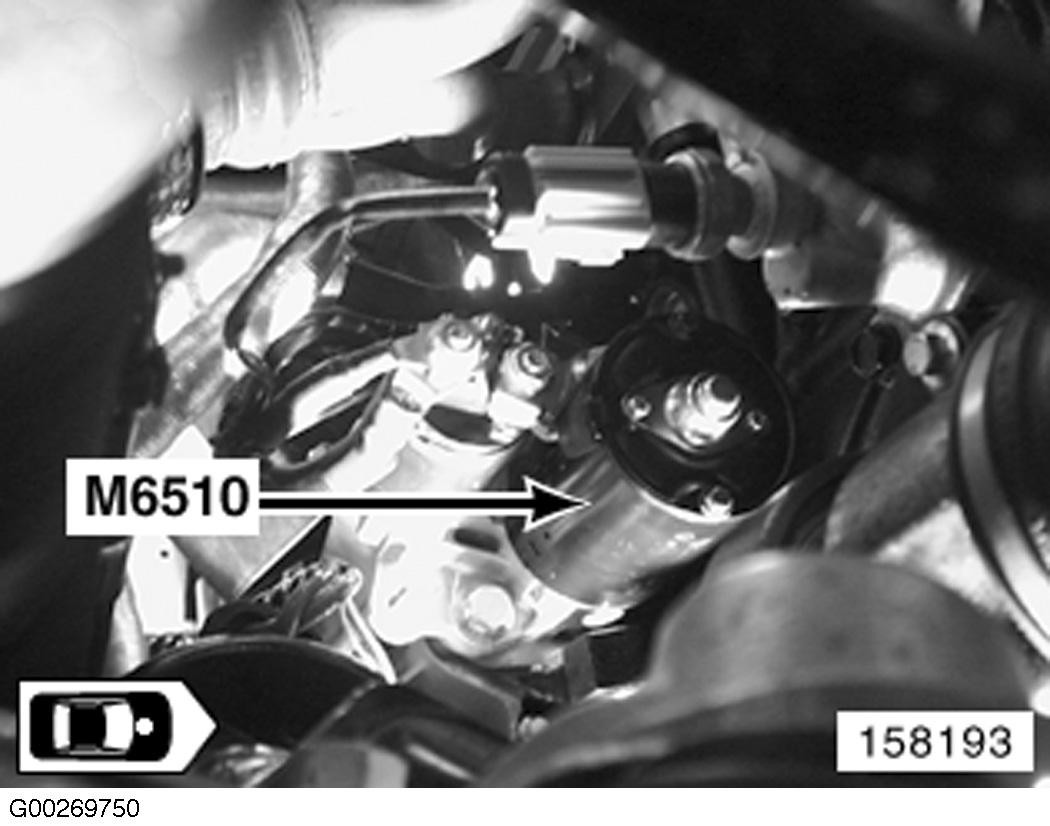

| Starter (M6510) | Bottom rear of engine compartment. See Figure . |

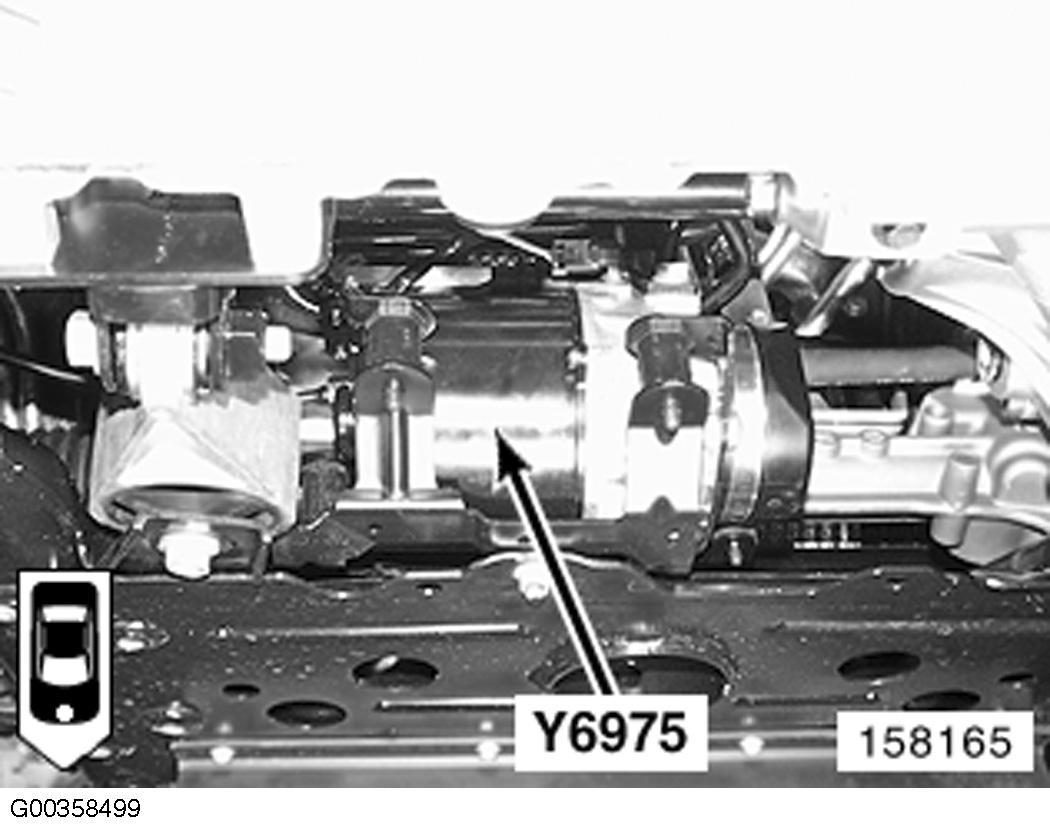

| Steering Control Unit/Hydraulic Pump (Y6975) | Lower left side of engine. See Figure . |

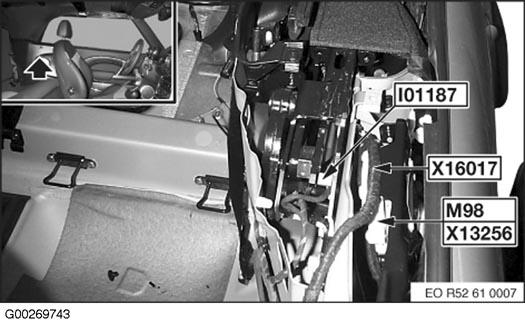

| Window Regulator Motor Left Rear (M98) | Left rear passenger compartment. See Figure . |

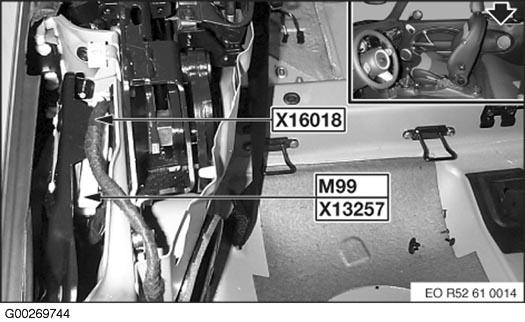

| Window Regulator Motor Right Rear (M99) | Right rear passenger compartment. See Figure . |

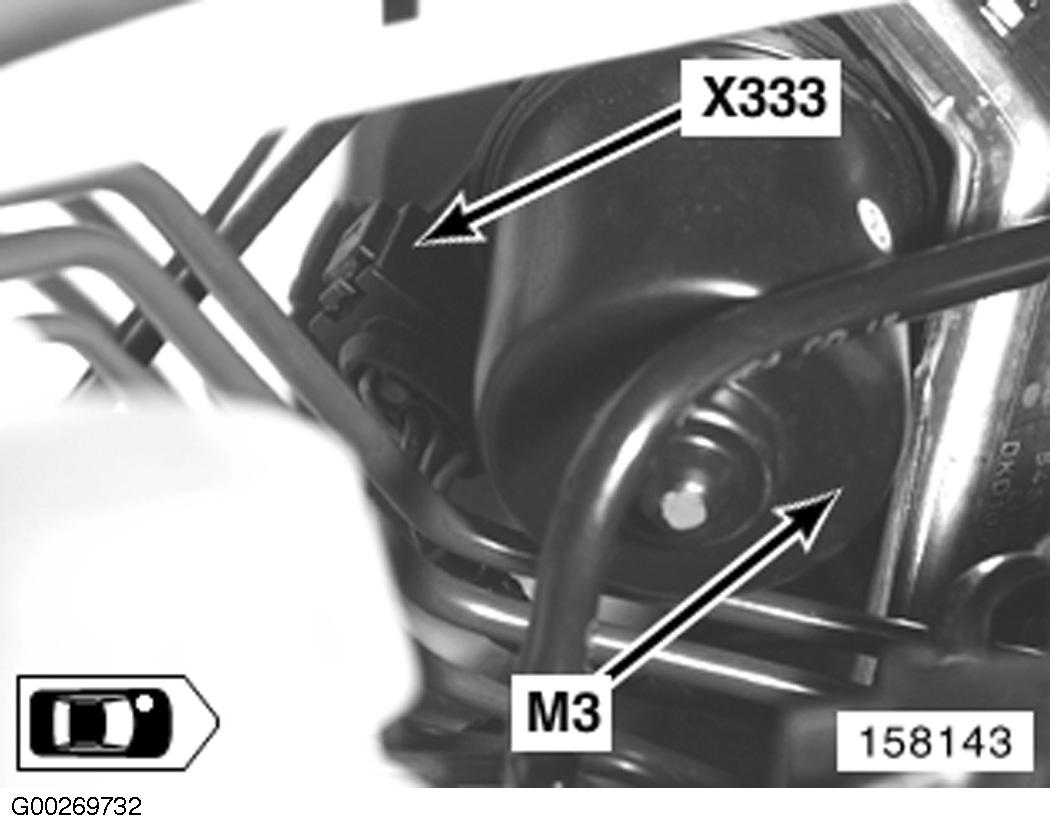

| Wiper Motor (M3) | Rear left side of engine compartment. See Figure . |
