Electric Starter Motor
The Starter Motor provides the mechanical energy to rotate the engine through a direct or a gear reduction drive.

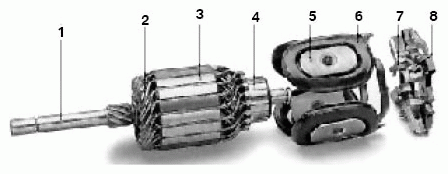

The major components of the starter motor are:
- Armature Shaft (1)
- Armature Winding (2)
- Armature Stack (3)
- Commutator (4)
- Poles Shoes (5)
- Field Coil (6)
- Carbon Brushes (7)
- Brush Holder (8)
