Docking Station

The Docking Station is intended for stationary operation, it replaces the bench power unit and provides the power supply. The Docking Station also provides the interfaces for connection to a USB device and the LAN Network.

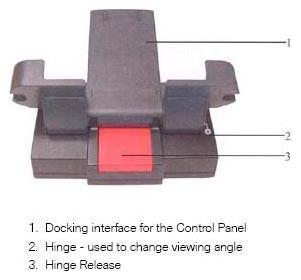

Fig 1: Docking Station (1 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

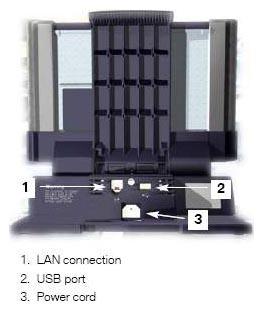

Fig 2: Docking Station (2 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.
