Service Information
At present repair/replacement is limited to:
- Drain and refill.
- Inhibitor switch and "O" ring.
- Selector shaft oil seal.
- Input shaft and drive shaft oil seals.
- Primary cover.
- Secondary cover "O" rings.
- Sump gasket.
- Oil cooler pipe and unions.
All diagnostics of the ECVT are carried out via the EMS. Using DISplus, the EMS can request actions from the GIU and monitor these actions for the correct performance. A requirement has been identified for the GIU to perform an integrity check on its output drives. This mode will be engaged as part of the end of line testing during production, and also for the technician performing diagnostic testing. In response to these signals, the GIU shall perform the following:
- Perform a test on LED drives.
- Test both clutch and pressure solenoids.
- Attempt to move motor through a complete cycle.

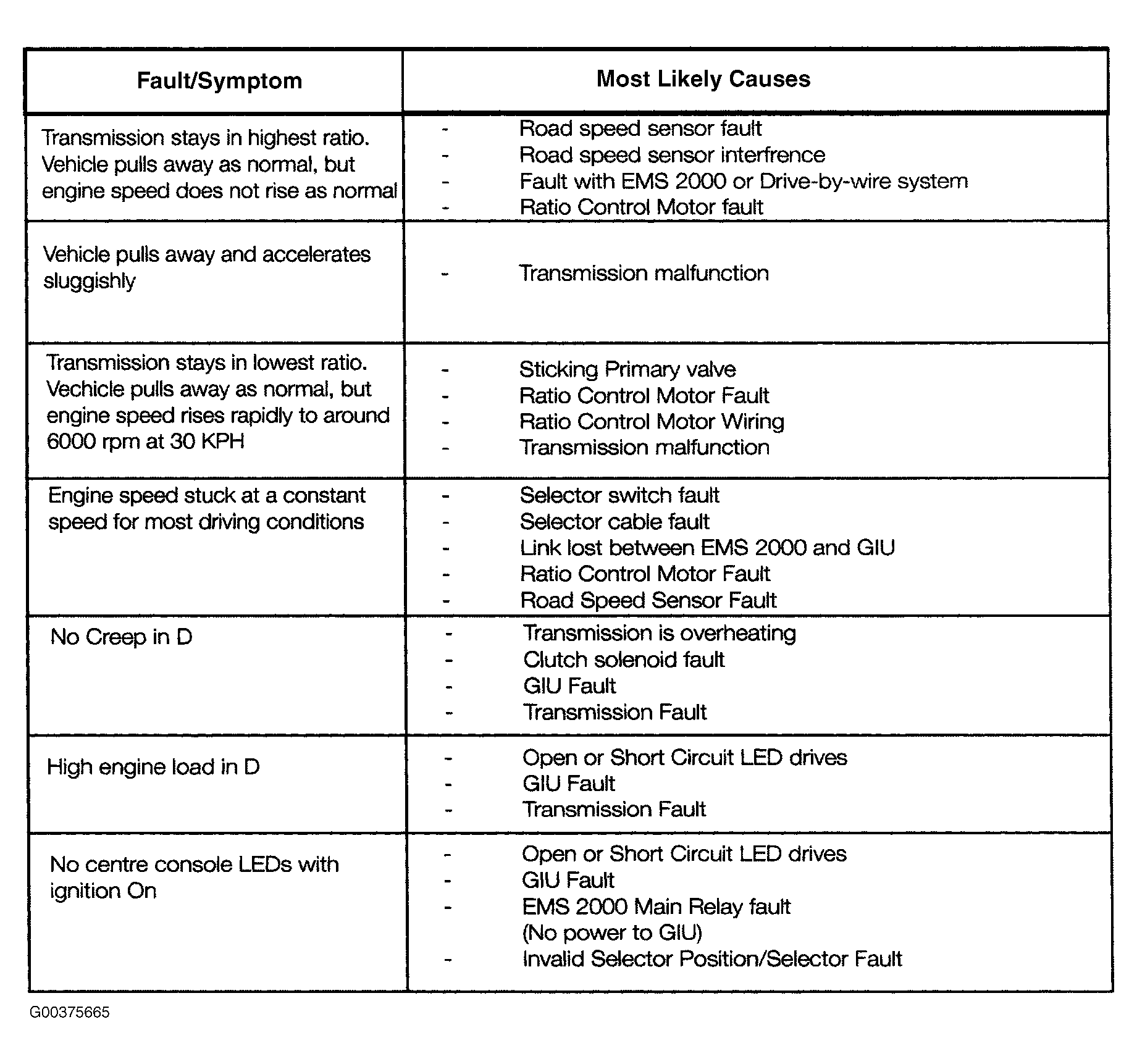

Once the operation of the EMS 2000 has been established, the GIU operation should be established. The CAN link between the GIU and the EMS 2000 can be verified by observing the LCD display in the instrument cluster. The display should change in accordance with the gear lever selector and is an indication that the selector switches are operational and the drive from the EMS 2000 to the instrument cluster is operational. If the ratio control motor is suspected to be faulty the following procedure can be carried out to confirm its state. See Fig 1 .
- Turn the ignition off and wait 5 minutes for the EMS 2000 to power down.
- Unplug the connector from the GIU and using a multi-meter measure phase coils across pins No. 5 & 6 and then 7 & 8. The reading should be between 18-30 Ohms.
- When a reading cannot be obtained, try reading the phase coils on the transmission connections by probing the connection directly on the transmission.
- When readings can not be obtained at the transmission, the motor is assumed to be faulty.
