Drive Plate

The engine is connected to the input shaft in the transmission, via a torsional damper, instead of the torque converter used by more conventional automatic transmissions.

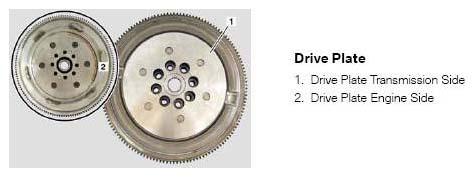

Fig 1: Drive Plate
G04724796Courtesy of BMW OF NORTH AMERICA, INC.
