Coolant Temperature Sensor Testing

Check status on DISplus status pages (0 - 5volts) Ensure that voltage changes and does not remain constant at 0 or 5 volts
Check Sensor Resistance
Perform TEST PLAN

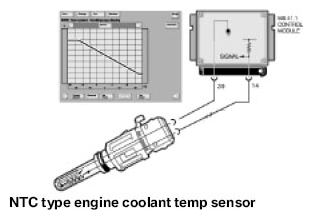

Fig 1: Checking NTC Type Engine Coolant Temp Sensor

Courtesy of BMW OF NORTH AMERICA, INC.
