Short Circuit

Any damage to a circuit is classified as a short circuit.

There are three types of common failures that can occur in a circuit:

• Open circuit  - break in the path of current flow
• Short to ground  - circuit grounded before load
• Short to power  - circuit path is exposed to another source voltage

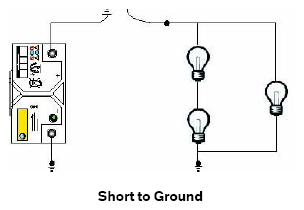

Fig 1: Short Circuit Diagram

Courtesy of BMW OF NORTH AMERICA, INC.
