Electrical Component Locator: Grounds
GROUNDS LOCATION
| Component | Location |
|---|---|

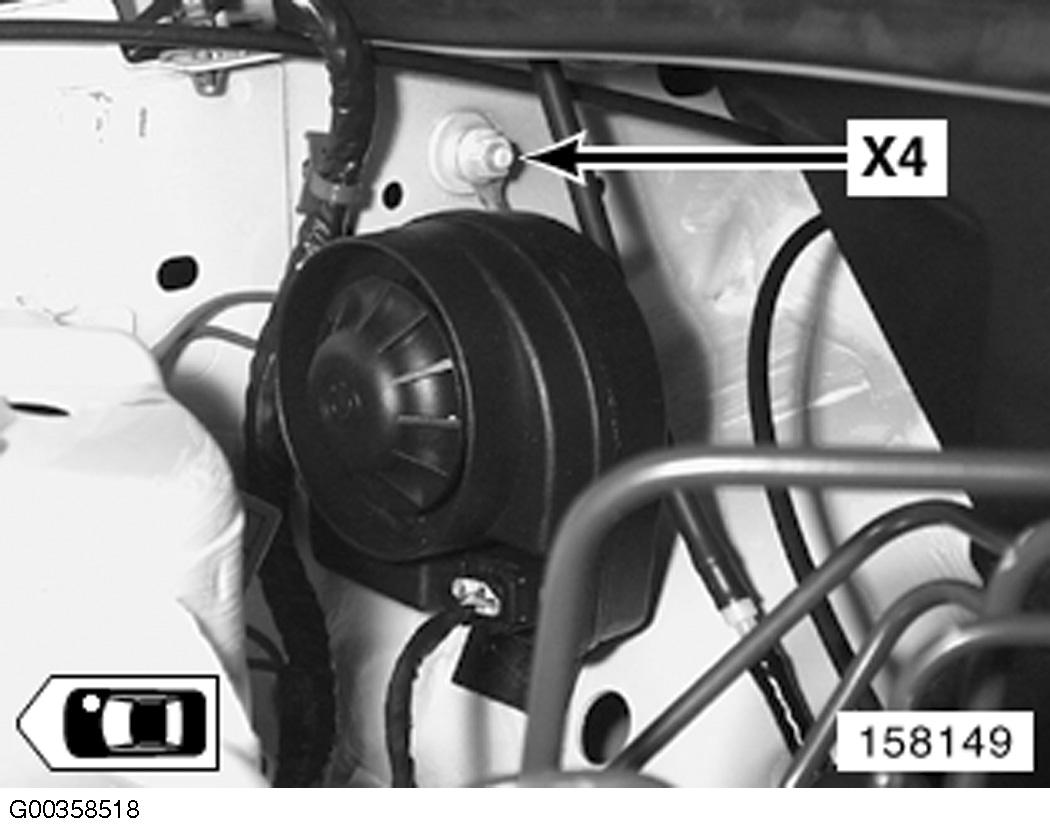

| X4 | Right rear of engine compartment. See Figure . |
| X46 | Under center console. See Figure . |
| X151 | Right side of right footwell. See Figure . |

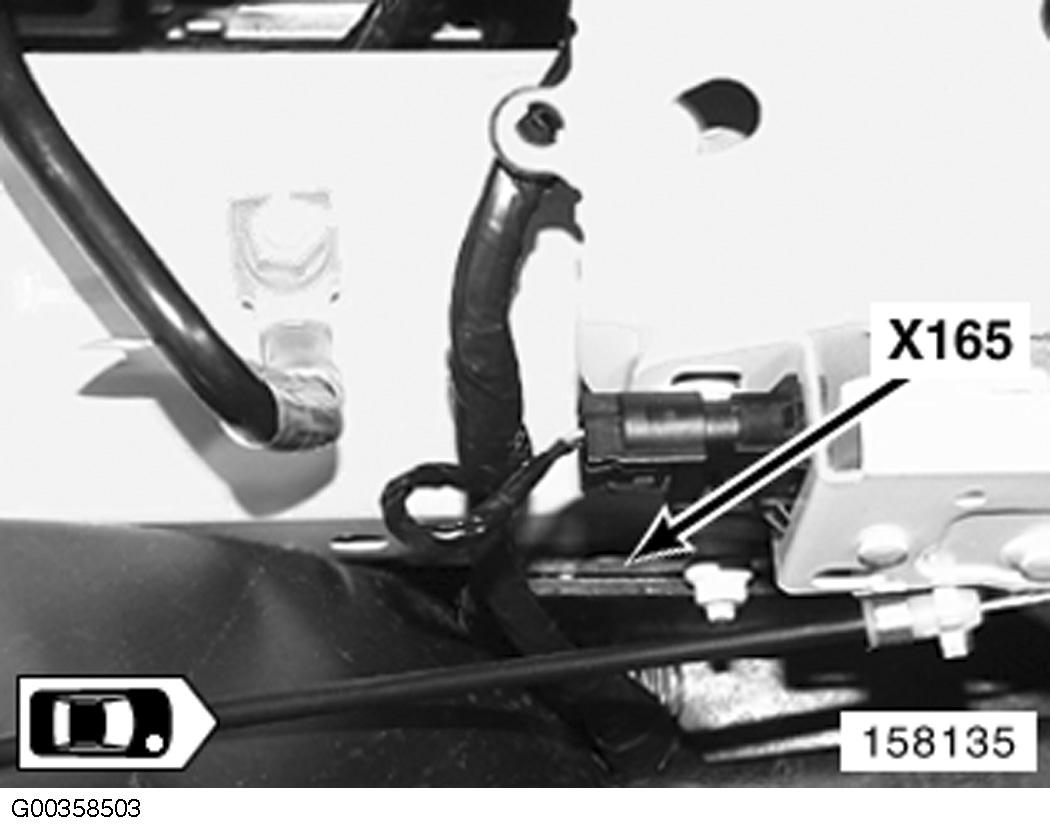

| X165 | Right side of engine compartment. See Figure . |
| X167 | Left side of engine compartment. See Figure . |
| X173 | Behind battery. See Figure . |

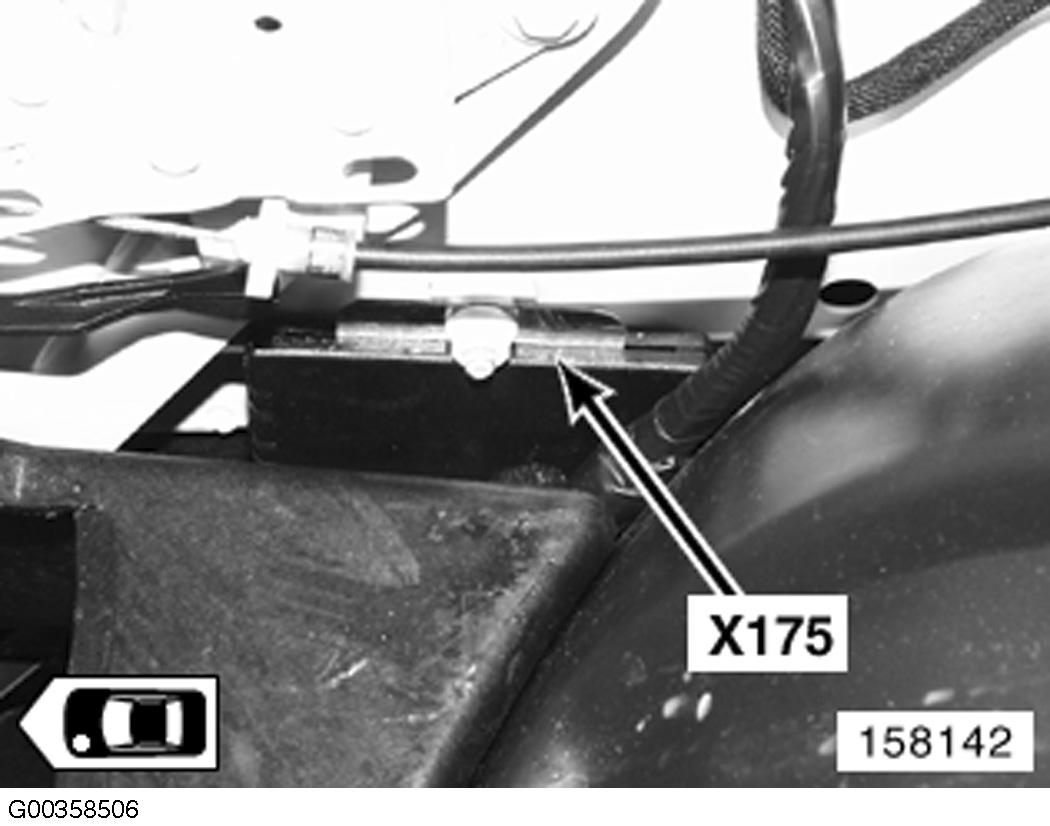

| X175 | Left side of engine compartment. See Figure . |

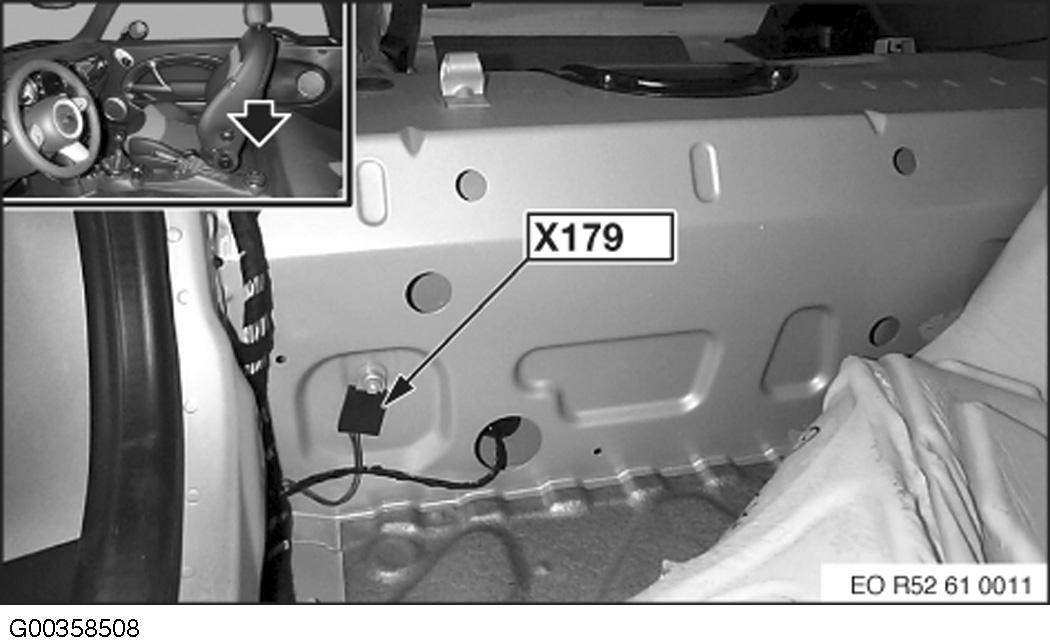

| X179 (Convertible) | Below right rear seat. See Figure . |
| X179 (Coupe) | Right door. See Figure . |
| X490 (Convertible) | Left rear of trunk. See Figure . |
| X490 (Coupe) | Left rear side of luggage compartment. See Figure . |

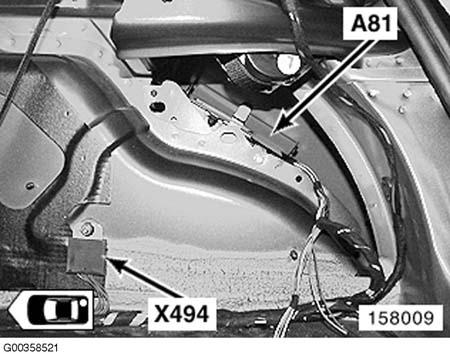

| X494 | Right rear side of luggage compartment. See Figure . |

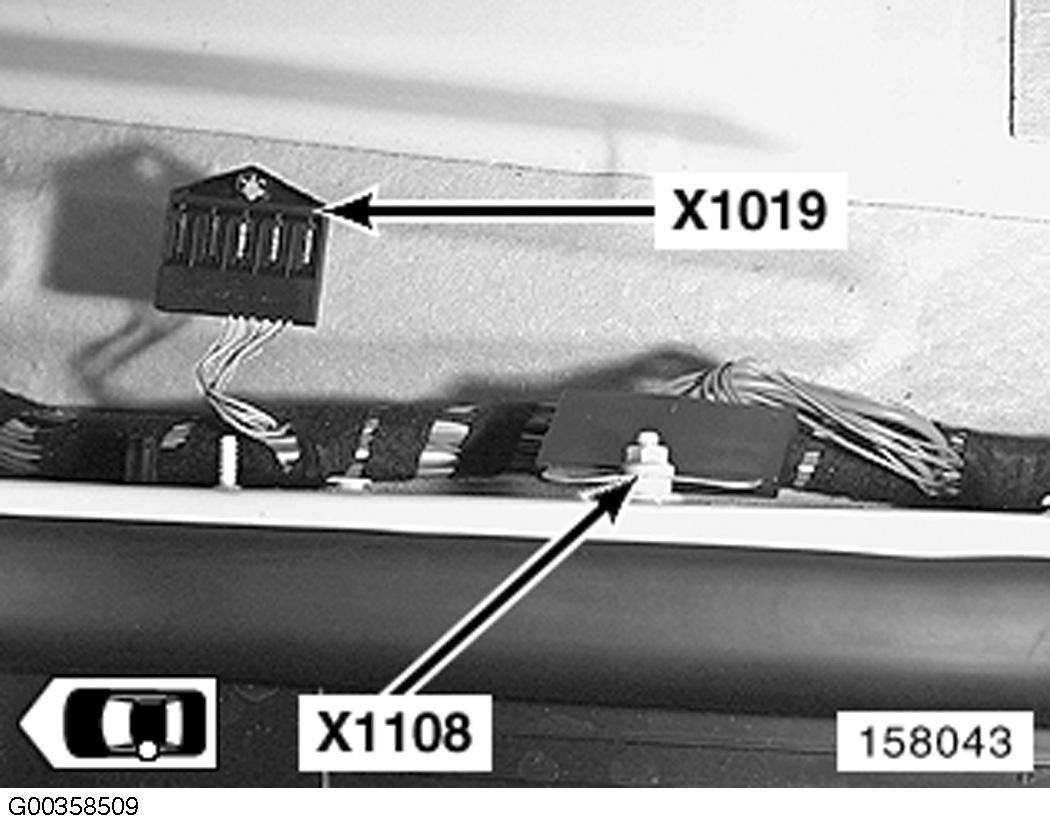

| X1019 | Left door. See Figure . |
| X1108 | Left door. See Figure . |
| X10116 | Right side of right footwell. See Figure . |
| X13016 (Convertible) | Right front headliner. See Figure . |
| X13016 (Coupe) | Headliner. See Figure . |

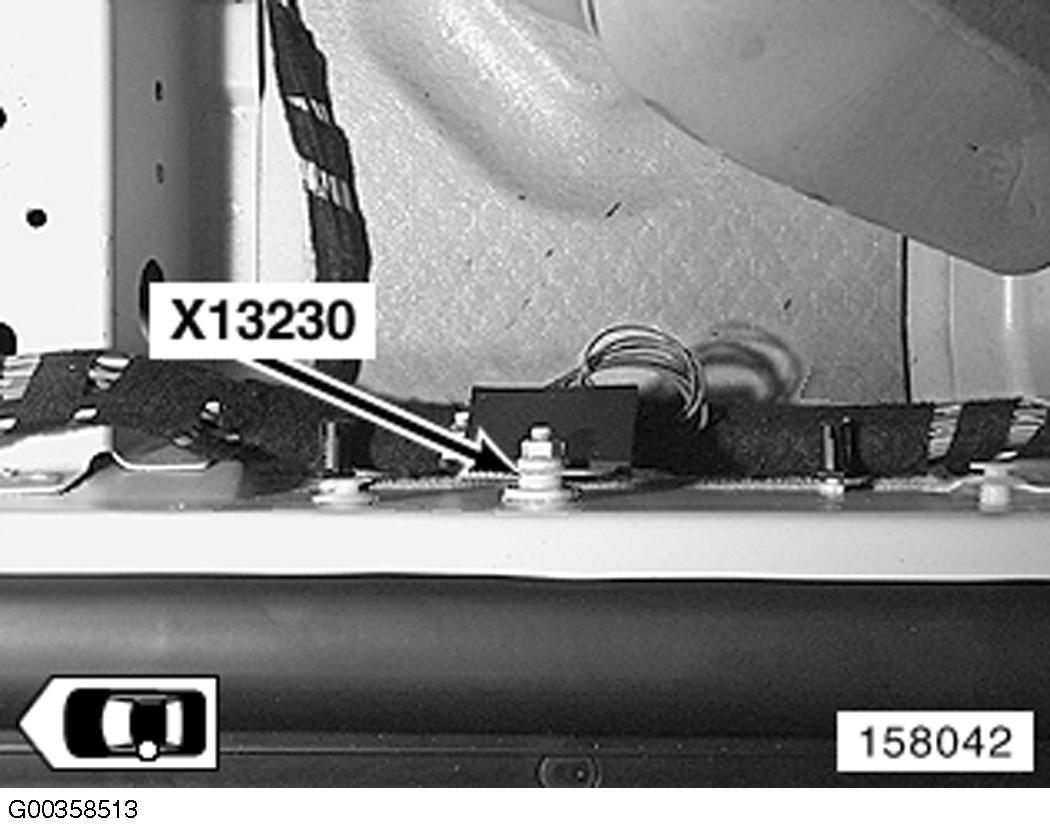

| X13230 (Convertible) | Under left rear seat. See Figure . |
| X13230 (Coupe) | Left door. See Figure . |
| X18170 | Under center console. See Figure . |

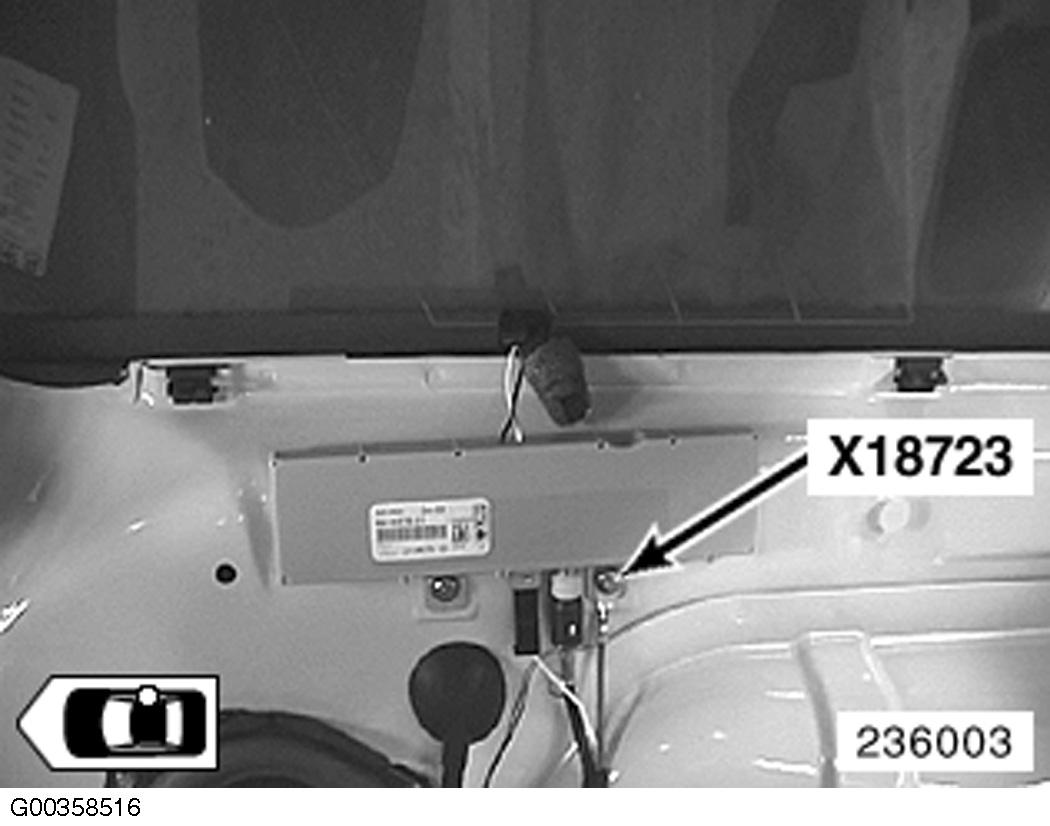

| X18723 | Behind right side trim panel. See Figure . |
