Starter Motor Assembly: Notes

The Starter Motor Assembly is a DC motor which uses the interaction of magnetic fields to convert electrical energy into mechanical energy.

The starter motor assembly consists of:

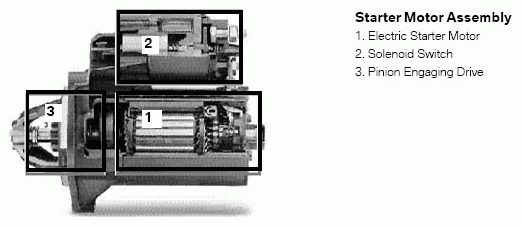

Fig 1: Starter Motor Assembly Components
G04730671Courtesy of BMW OF NORTH AMERICA, INC.
