Mode 6 - 2007

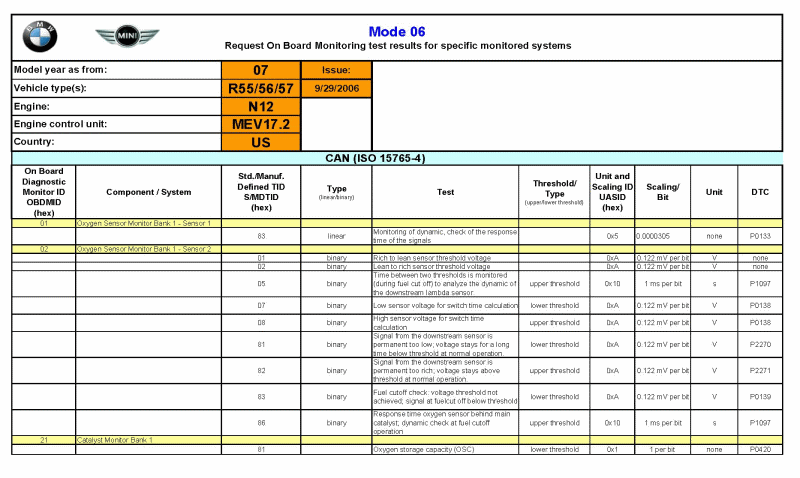

Fig 1: MINI Mode 6 Data - Without Turbo (1 Of 3)
Courtesy of BMW OF NORTH AMERICA, INC.

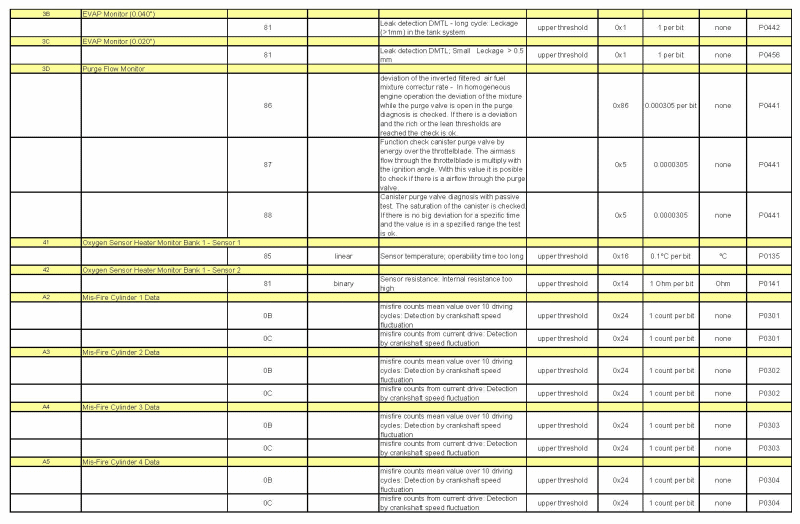

Fig 2: MINI Mode 6 Data - Without Turbo (2 Of 3)
Courtesy of BMW OF NORTH AMERICA, INC.

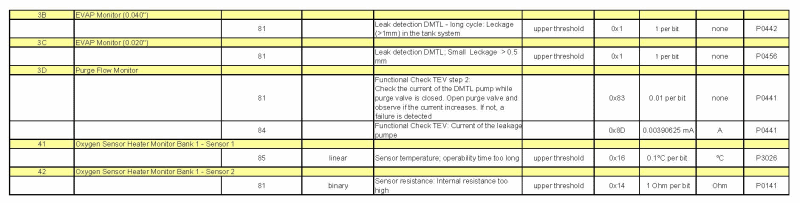

Fig 3: MINI Mode 6 Data - With Turbo (3 Of 3)
Courtesy of BMW OF NORTH AMERICA, INC.

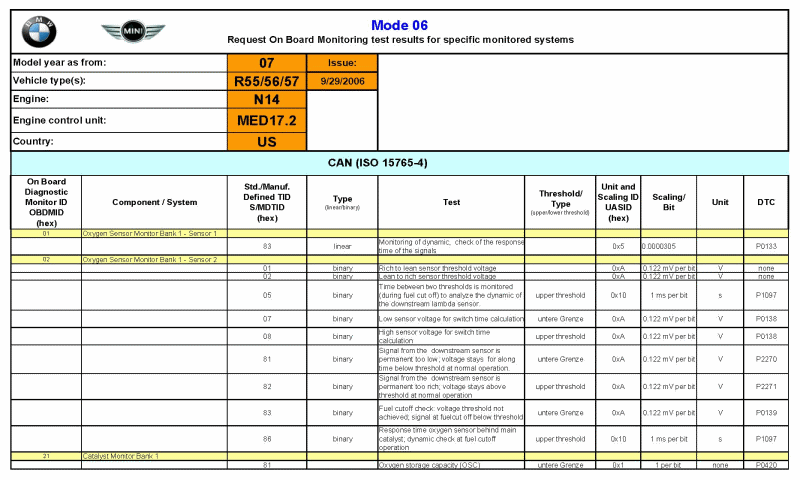

Fig 4: MINI Mode 6 Data - With Turbo (1 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.

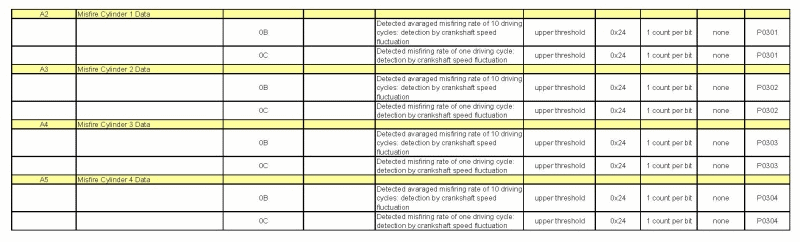

Fig 5: MINI Mode 6 Data - With Turbo (2 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.
