LAN (Local Area Network) Connection

The LAN connection has the appearance of a large phone receptacle. It provides the connection for the DISplus to the Ethernet wiring for the Service Department Network.

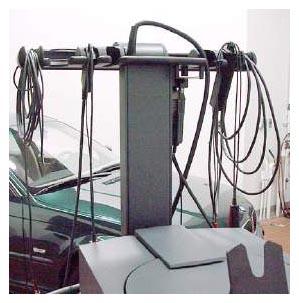

Fig 1: Test Cables

Courtesy of BMW OF NORTH AMERICA, INC.
