Power Windows: Notes

Standard on the MINI is power operation of the Driver and Passenger windows. The Rear Quarter windows are fixed.

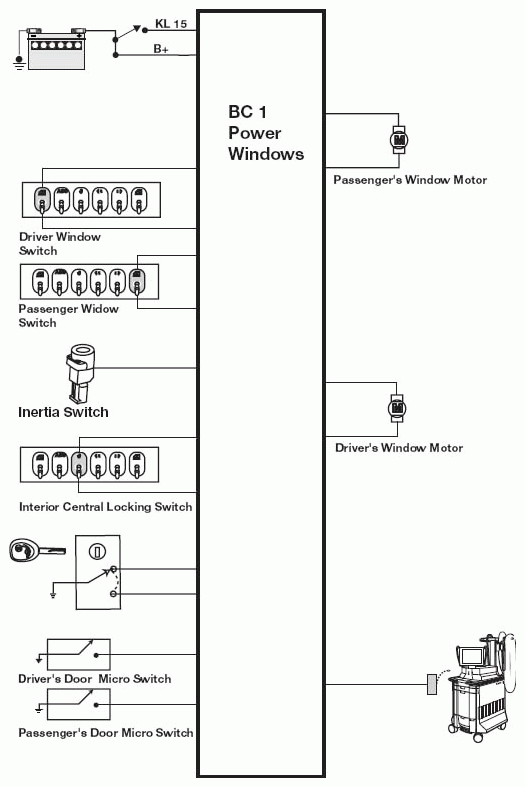

Fig 1: Power Operation Diagram Of Driver And Passenger Windows
G04730168Courtesy of BMW OF NORTH AMERICA, INC.
