ZCS Codable Control Modules (w/ Progman v. 14 & 15)

Control modules located in a vehicle that are ZCS codable are listed/identified by the "Codierung ZCS/FA" function contained in CIP.

To perform the procedure from CIP the Model series must be selected.

Select the MINI  .

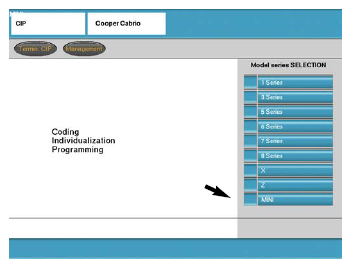

Fig 1: Display Screen - MINI

Courtesy of BMW OF NORTH AMERICA, INC.

Select Codierung ZCS/FA  .

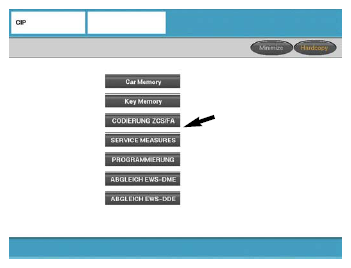

Fig 2: Display Screen - Codierung ZCS/FA

Courtesy of BMW OF NORTH AMERICA, INC.

Select vehicle series.

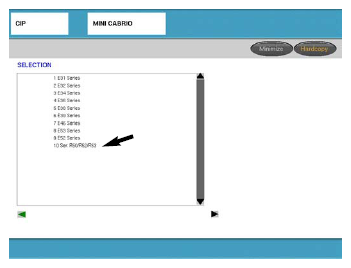

Fig 3: Display Screen - Vehicle Series

Courtesy of BMW OF NORTH AMERICA, INC.

Select Recoding  .

Then advance screen to the right.

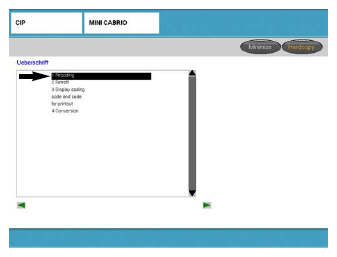

Fig 4: Display Screen - Recoding

Courtesy of BMW OF NORTH AMERICA, INC.

The window now displays a list of control modules that are ZCS codable.

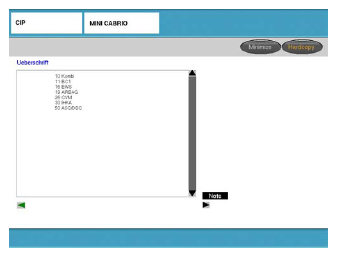

Fig 5: Display Screen - Window

Courtesy of BMW OF NORTH AMERICA, INC.
