Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

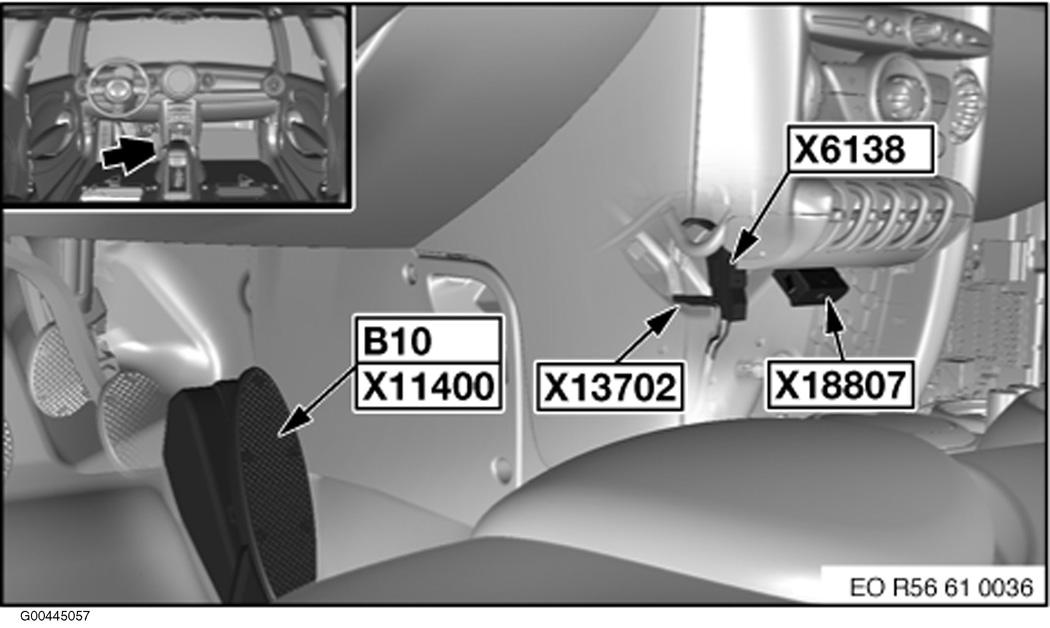

| Accelerator Pedal Module (B10) | Part of acceleration pedal assembly. See Figure. |

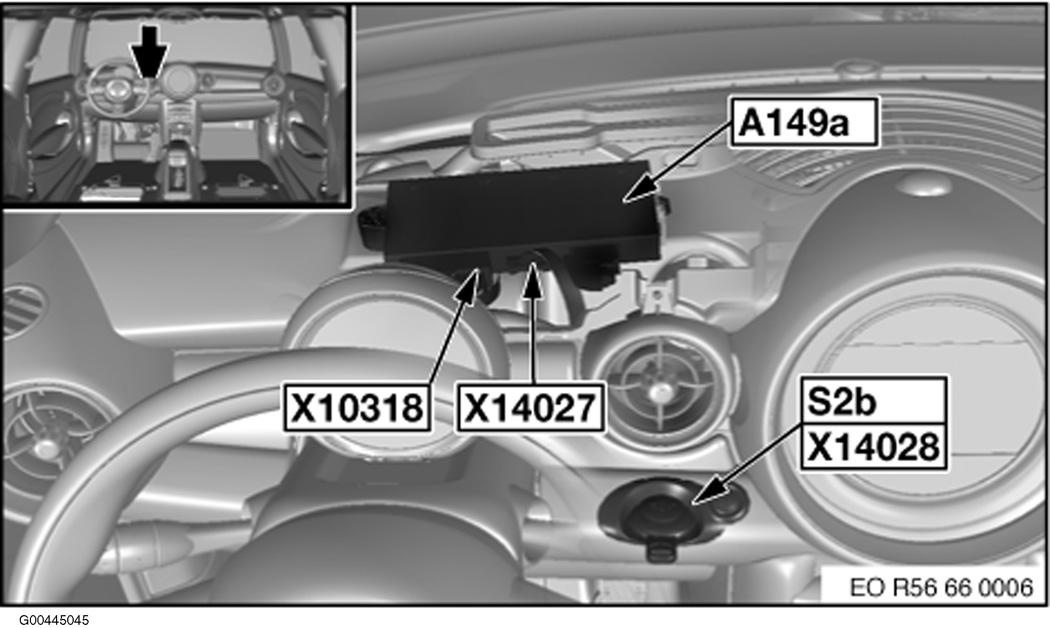

| Car Access System (A149a) | Left top side of dash. See Figure. |

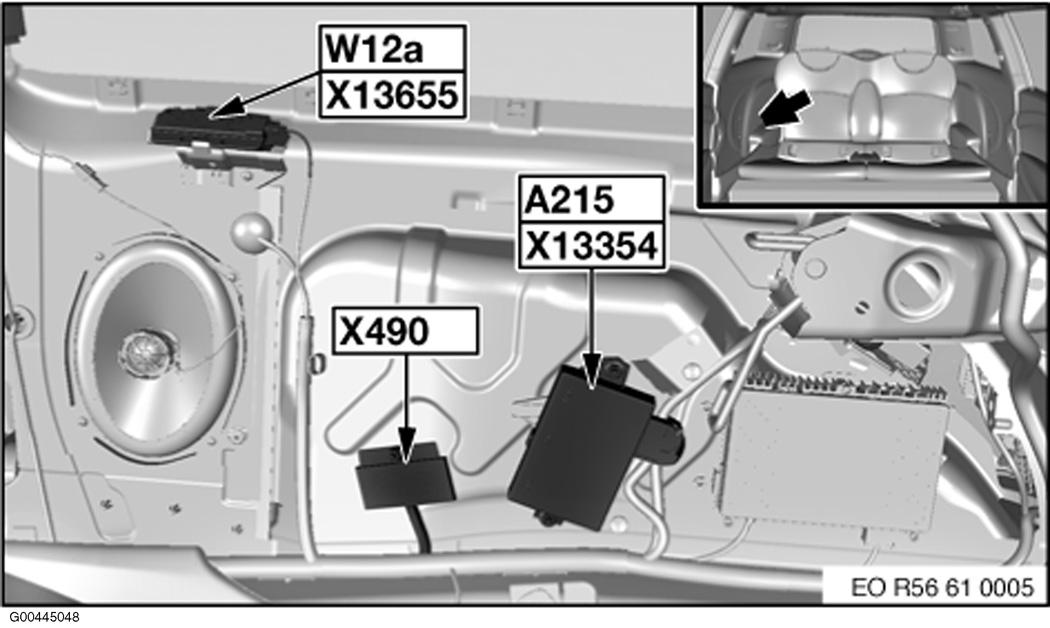

| Comfort Access Control Module (A215) | Behind right rear trim panel. See Figure. |

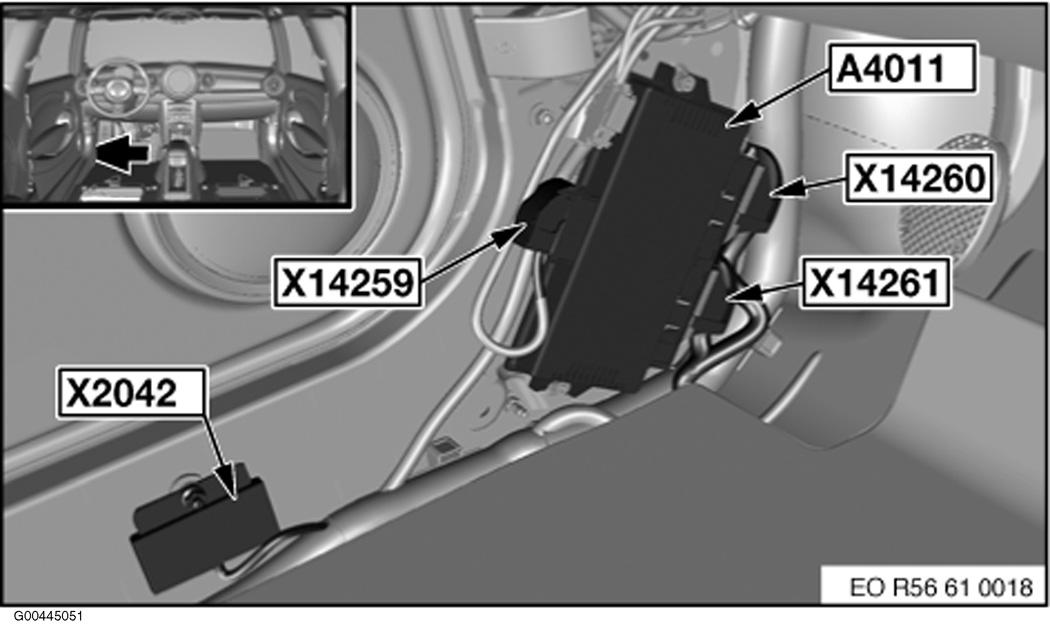

| Footwell Module (A4011) | Left side of left footwell. See Figure. |

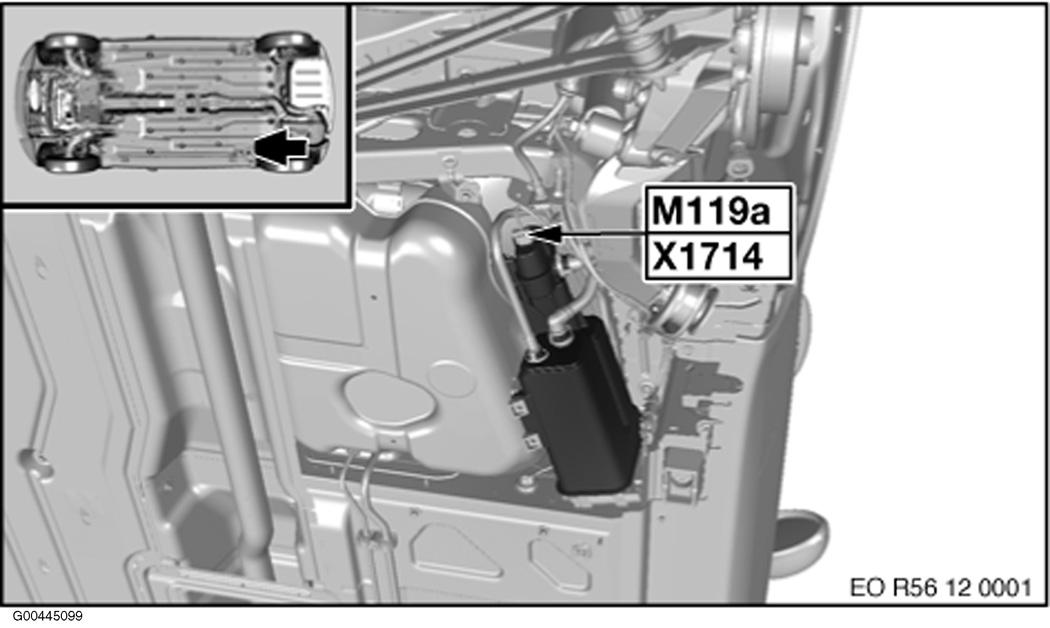

| Fuel Tank Leakage Diagnostic Module (M119a) | Front of right rear wheel. See Figure. |

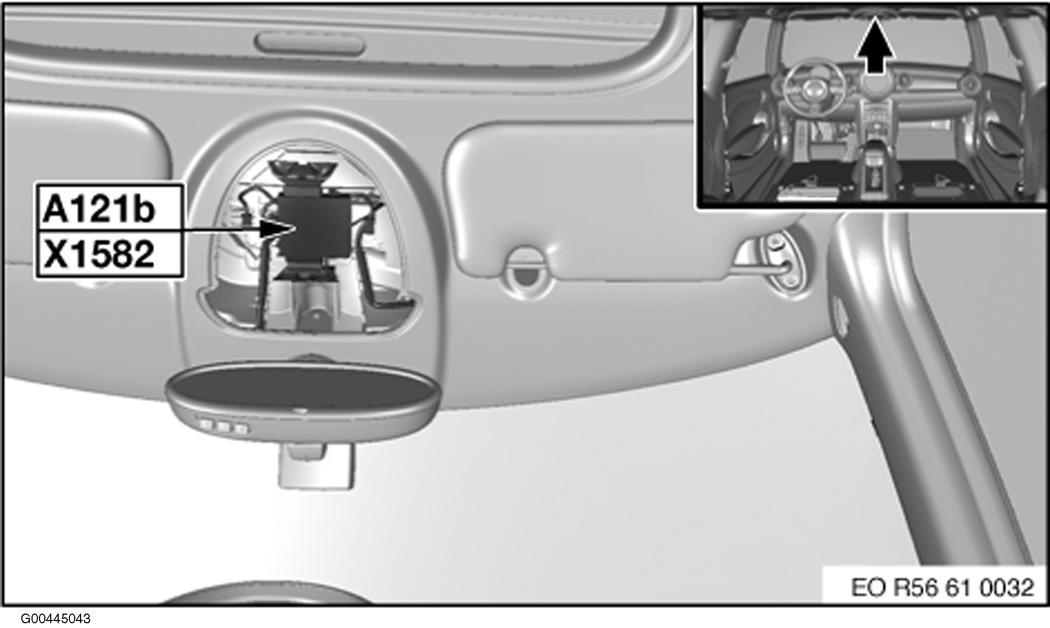

| Interior Movement Detector (A121b) | In overhead console. See Figure. |

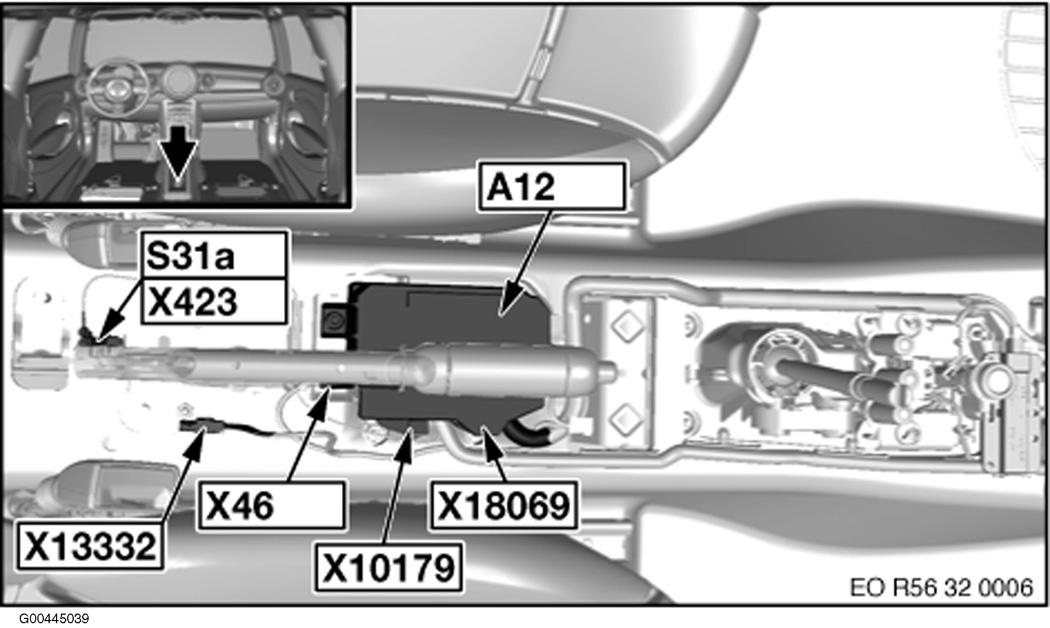

| Multiple Restraint System Control Unit (A12) | Center console. See Figure. |

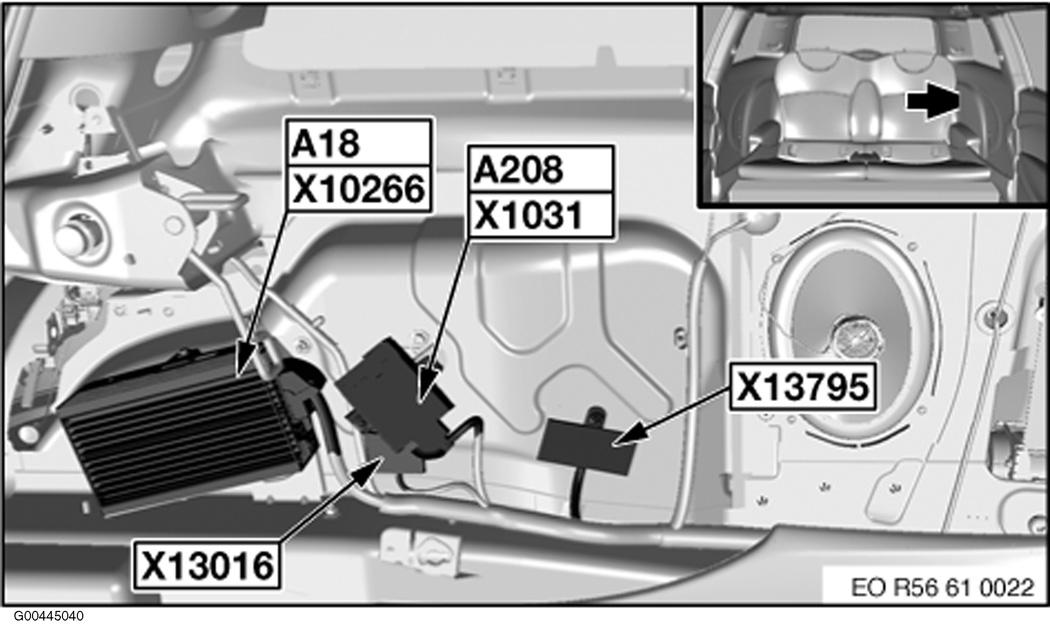

| Outside Mirror Fold-In (A208) | Behind left rear trim panel. See Figure. |

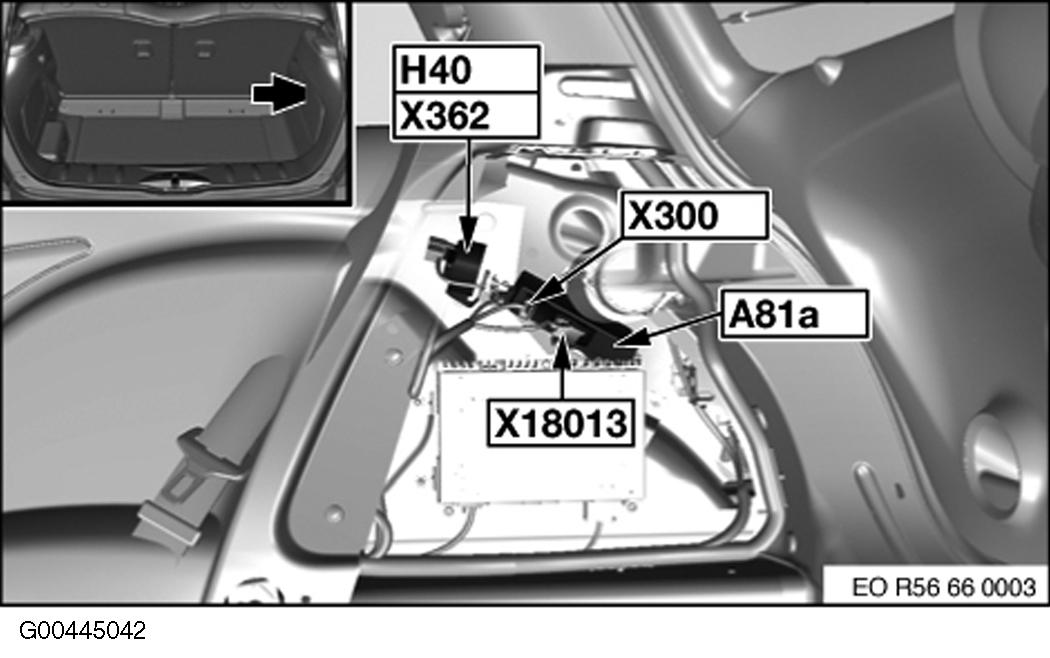

| Park Distance Control Unit (PDC) (A81) | Right side of rear compartment. See Figure. |

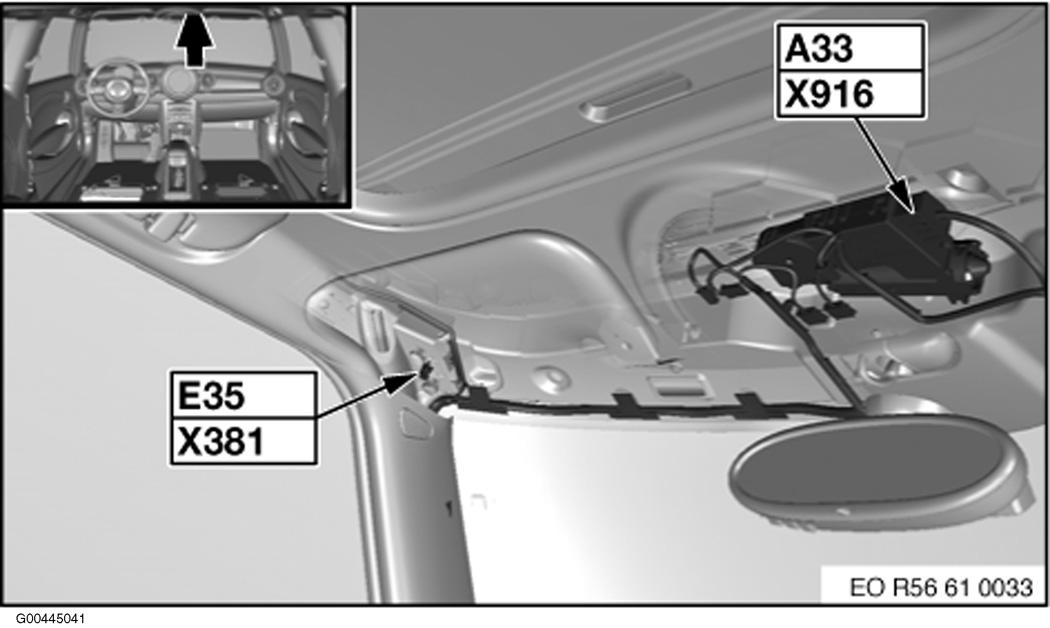

| Sunroof Module Control Unit (A33) | Under center front headliner. See Figure. |
