Display of ZCS for Printout

WARNING: This page does not describe the selected car, but rather 136 other vehicles, including the 2008 BMW 760Li, 2008 BMW 650i, 2007 BMW Z4, 2007 BMW X5, and 2007 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

This selection from the ZCS coding menu displays the coding code as well as the stored chassis number of the vehicle.

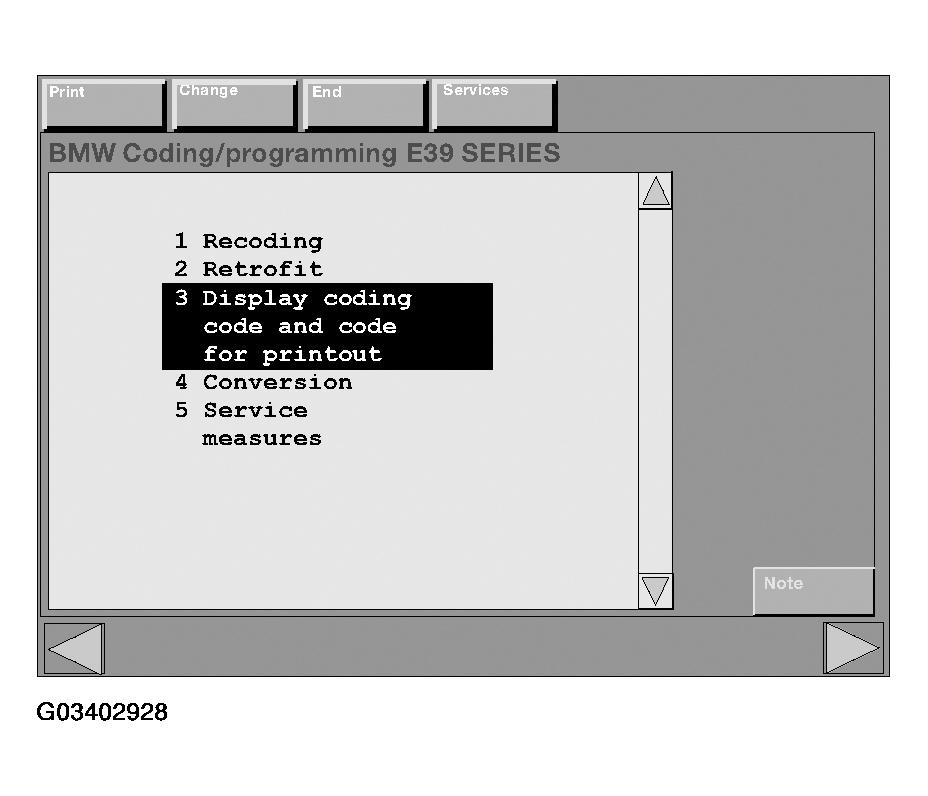

Fig 1: View Of ZCS Printout Selection Screen (1 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

The information is displayed so that a print out can be made of the original code. Having the original code is useful if the vehicle needs to be returned to the original state when retrofitted items are removed or just to view what the code is to verify status.

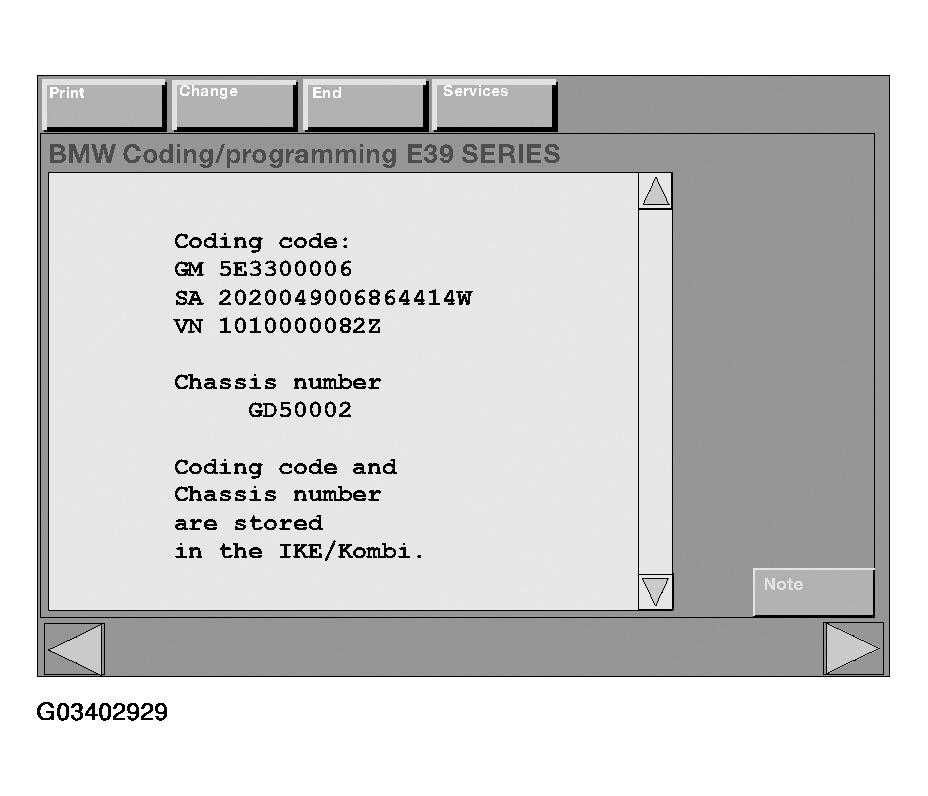

Fig 2: View Of ZCS Printout Selection Screen (2 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.
