Variant Code Structure

WARNING: This page does not describe the selected car, but rather 136 other vehicles, including the 2008 BMW 760Li, 2008 BMW 650i, 2007 BMW Z4, 2007 BMW X5, and 2007 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

The four digit structure of the variant code is a two word hex code. Each hex character provides specific control module encoding information

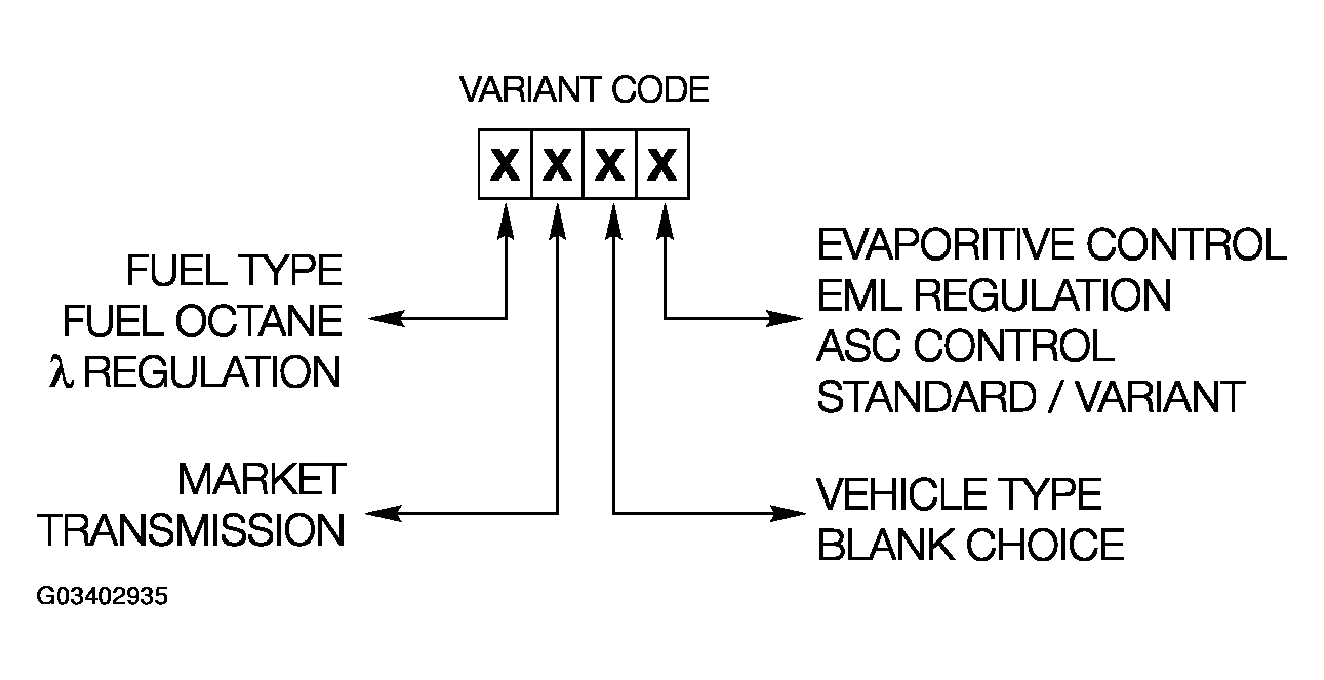

Fig 1: Identifying Variant Code Structure

Courtesy of BMW OF NORTH AMERICA, INC.

Each hex digit has a binary equivalent that provides four 1s or Os. This provides a total of 16 bits of information (or choices).

The control module assigns specific functions, characteristic maps and control module program constants based on the individual 1s and Os.

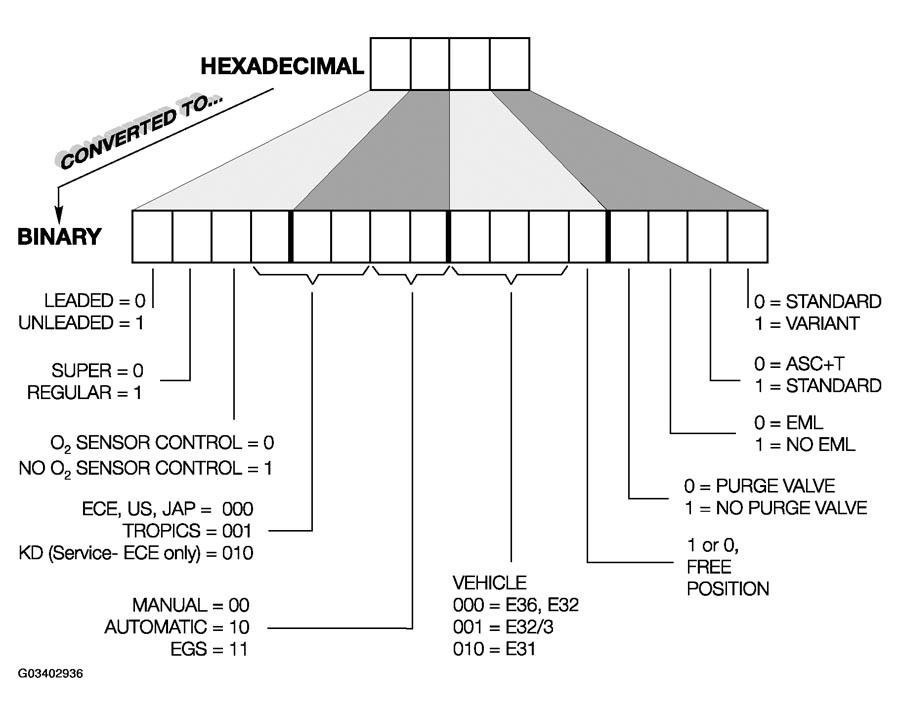

Fig 2: Identifying Variant Code Map Definitions

Courtesy of BMW OF NORTH AMERICA, INC.

Intentionally miscoding a DME will not create any performance advantages and quite possibly could lead to engine damage.
