Removal & Installation

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW Z4, 2008 BMW M Roadster, 2008 BMW M Coupe, 2007 BMW Z4, and 2007 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.

Remove steering column. Slacken nut. See Fig 1 . Secure clamping bearing (by hand, adhesive tape).

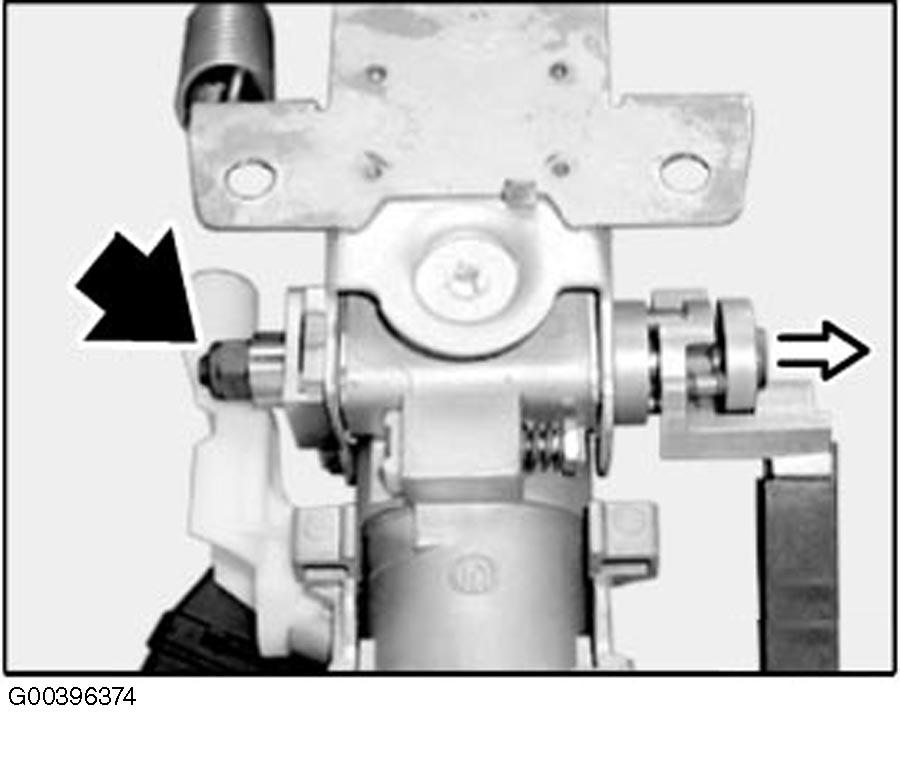

Fig 1: Identifying Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Remove nut (1), needle bearing (2), slide (3) and compression spring (4). Pull out adjusting lever. During installation, adjusting lever unit is supplied in assembled state with a transportation lock (5). Remove transportation lock (5) and install preassembled adjusting lever. Clamping bearing (6) must be secured while transportation lock (5) is being removed until insertion into steering column. Incorrect assembly will result in malfunction. See Fig 2 .

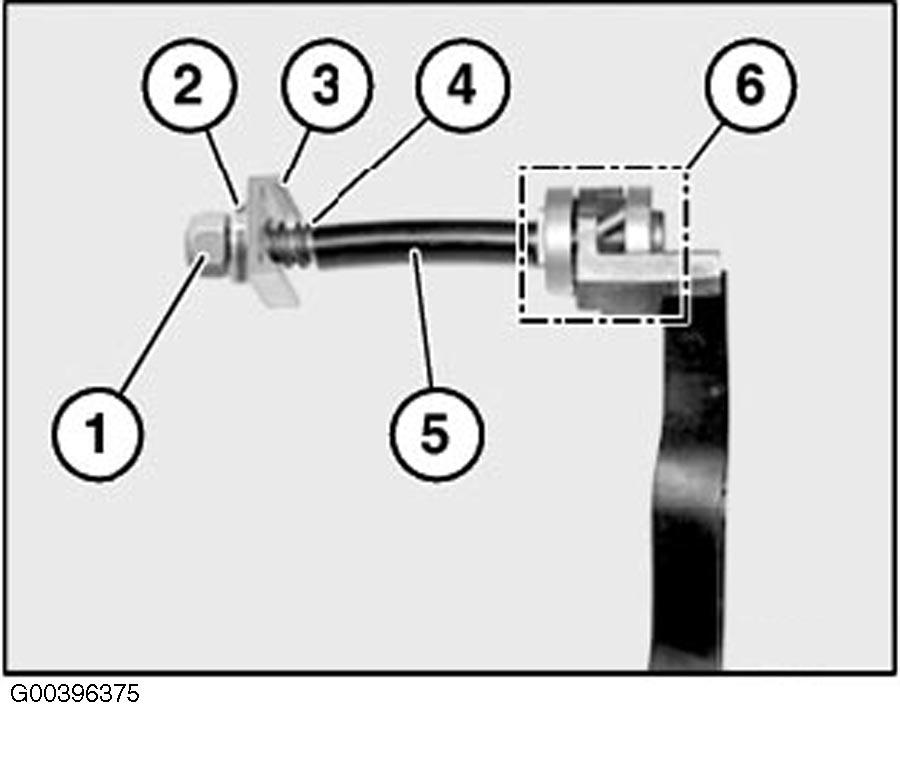

Fig 2: Identifying Nut (1), Needle Bearing (2), Slide (3), Compression Spring (4), Transportation Lock (5) & Clamping Bearing (6)

Courtesy of BMW OF NORTH AMERICA, INC.

Replace nut. Screw on nut a few turns. Move adjusting lever into locked position. Tighten nut to correct torque. See TORQUE SPECIFICATIONS . Clamping force is adjusted by means of the tightening torque.

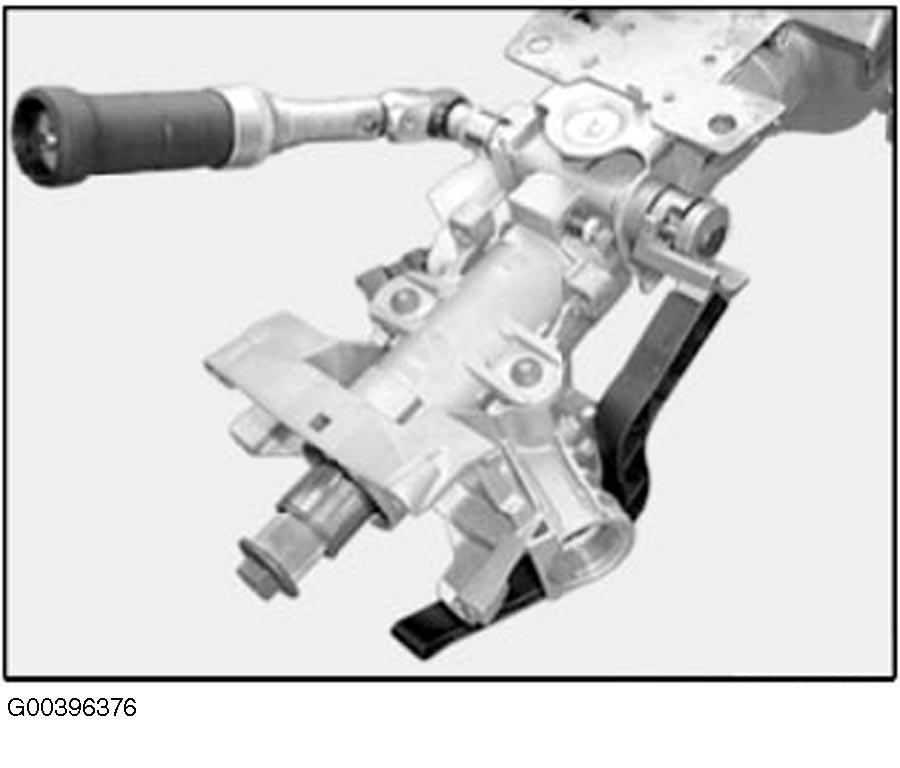

Fig 3: Moving Adjusting Lever Into Locked Position

Courtesy of BMW OF NORTH AMERICA, INC.
