Loading/Activation Of Enabling Codes With ISTA/P (M09 01 11)

Publication date: 2011-07-01
Reference number: M09 01 11

LOADING/ACTIVATION OF ENABLING CODES WITH ISTA/P

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI M09 01 11, Date of Issue: July 2011

MINI:	R56 (Cooper, Cooper S); R55 (Cooper Clubman, Cooper S Clubman); R57 (Cooper Convertible, Cooper S Convertible); R60 (Cooper Countryman, Cooper S Countryman)
GROUP:	Programming/Coding Explanations

SUBJECT

Loading/Activation of Enabling Codes with ISTA/P

SITUATION

Enabling codes are needed for certain module replacements, retrofits, modules that fail programming, or during the QC1 pre-delivery check. This bulletin gives an overview on how to load and activate enabling codes with ISTA/P.

CAUSE

The general purpose of the enabling codes is to unlock value-added functions or components in MINI vehicles.

INFORMATION

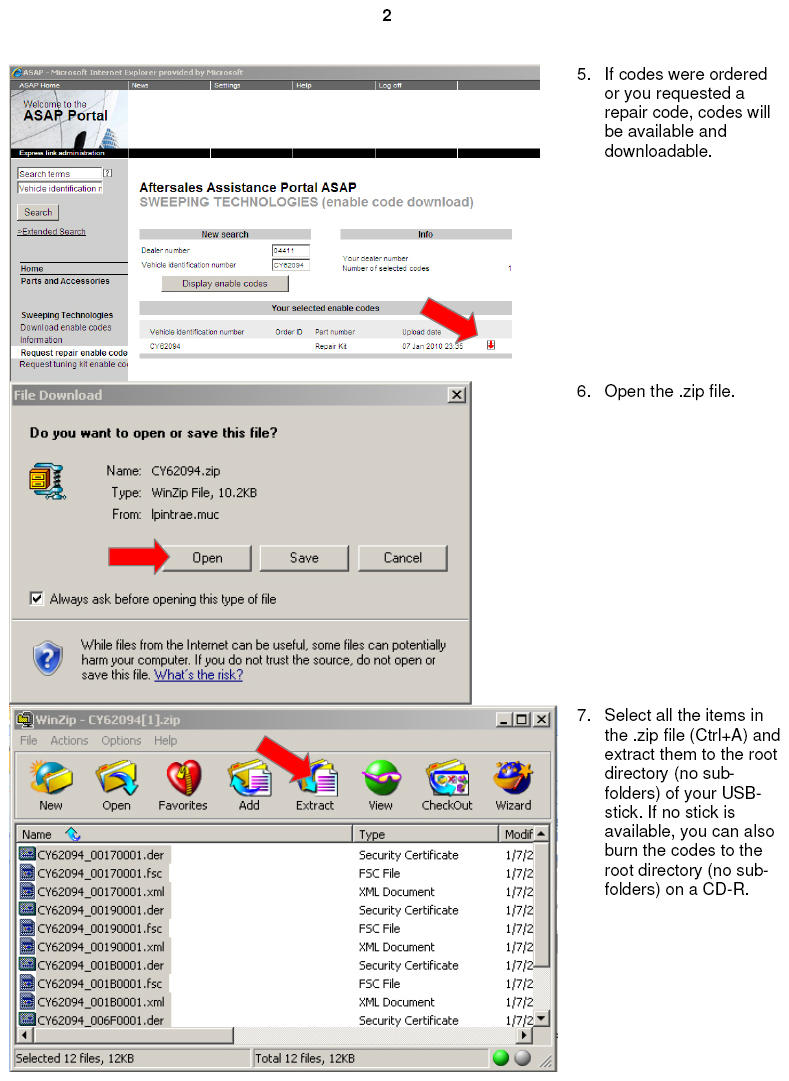

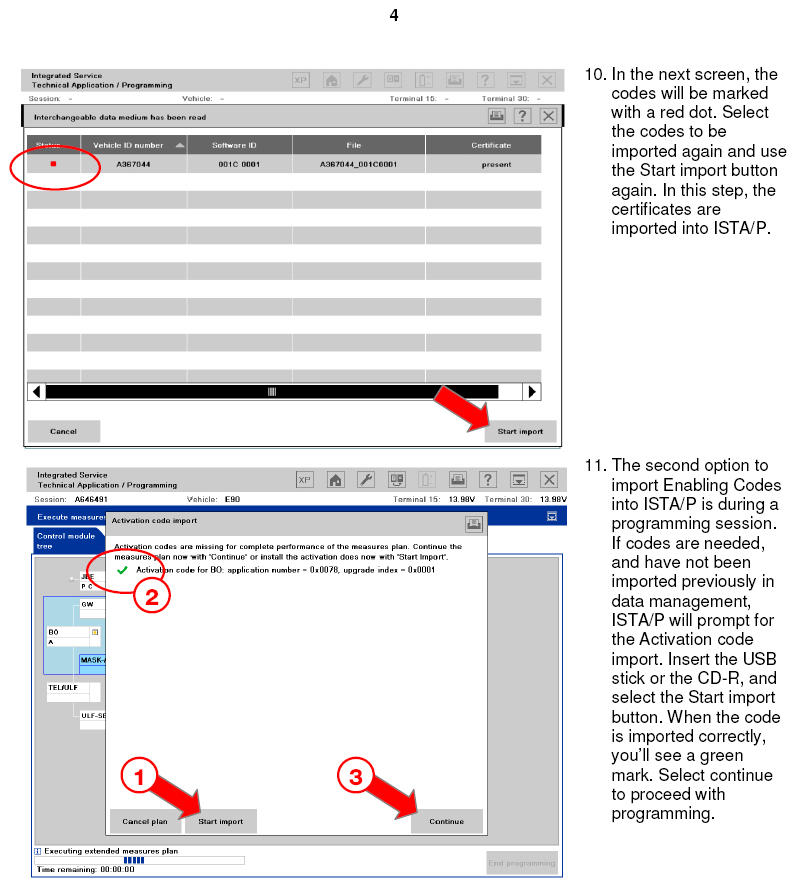

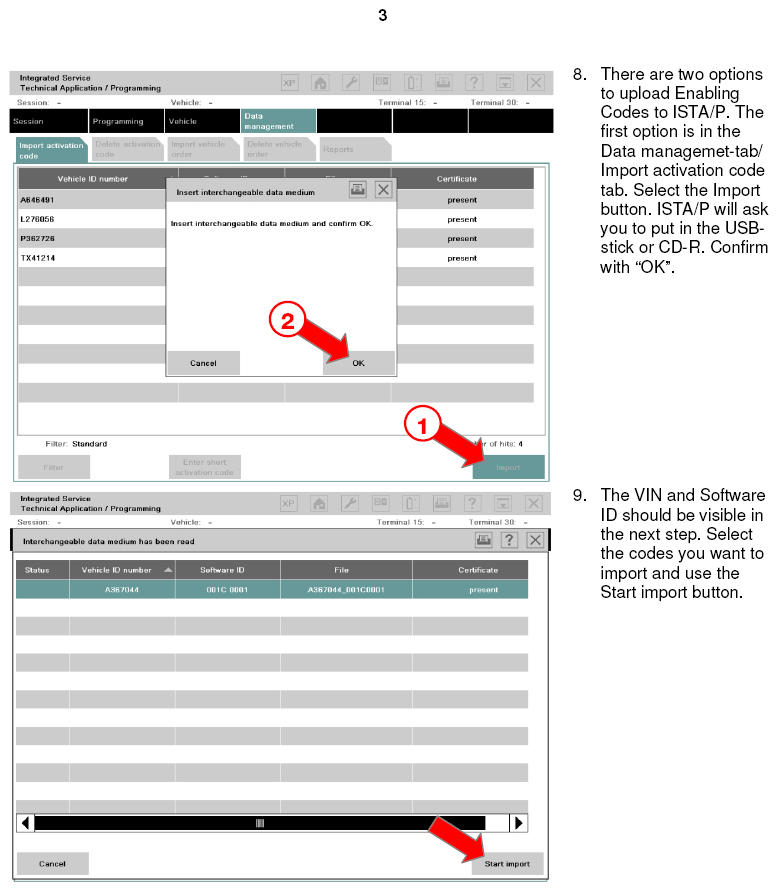

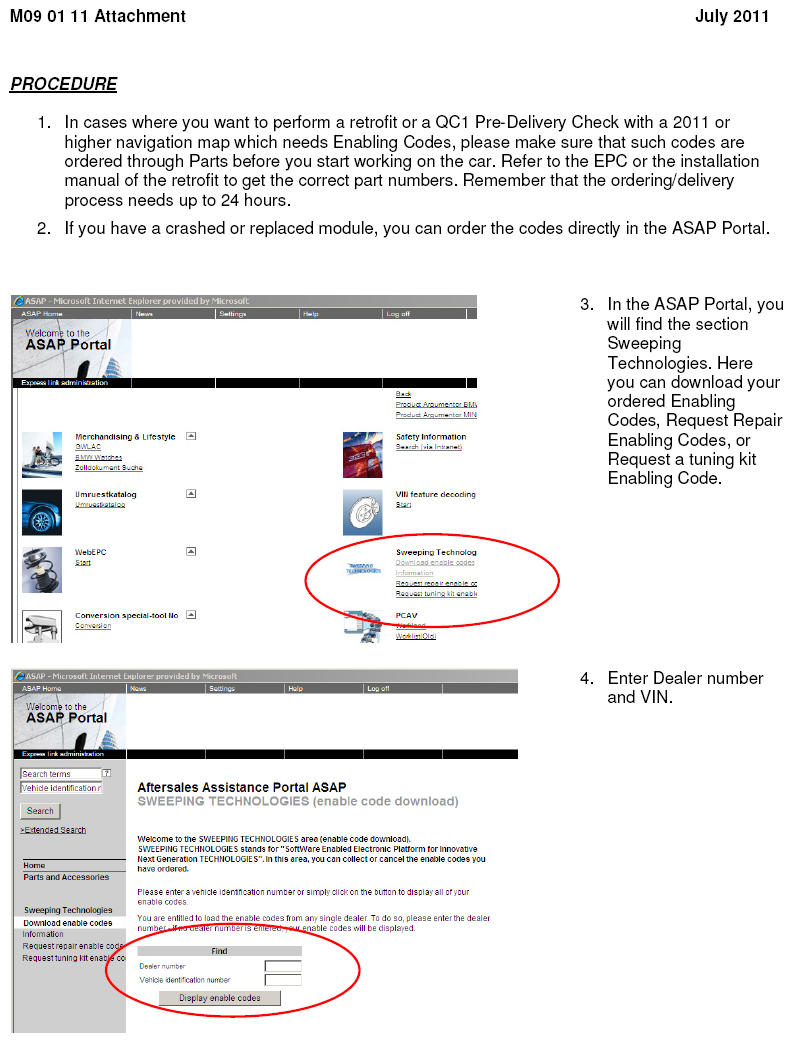

Please follow the procedures below to load and activate the enabling codes with ISTA/P. Refer to the attached document for detailed information and screenshots:

Refer to SI M09 02 11 to determine which enabling code is needed for which function/component.

For further information on enabling codes, please refer to the document "Information on Enabling Codes" in the Workshop Technology portal in Centernet.

PROCEDURE

Module Replacement Procedure

ISTA/P will ask you to import codes depending on the option codes and replaced module.
Download repair codes in ASAP.

Retrofit Procedure

ISTA/P will ask you to import codes depending on the retrofit.
Order the codes as mentioned in the installation instructions and in the EPC.
It can take up to 24 hours to generate codes.
Download the codes in ASAP.

Module Failed Programming Procedure

ISTA/P will ask you to import the codes, depending on which module failed programming.
Download the repair enabling codes in ASAP.
Try to import and activate in another ISTA/P session.
If those codes don't work, open a PuMA Case to receive technical support.

PDI with Navigation (SA 606) Procedure

During PDI, you will be asked in ISTA if you want to activate the Navigation Map.
Please refer to SI M65 03 10.

WARRANTY INFORMATION

This Service Information bulletin is intended to provide technical diagnostic and/or repair information.

ATTACHMENTS
