Programming Version Vehicle Data Status (M09 04 07)

Publication date: 2012-03-01
Reference number: M09 04 07

PROGRAMMING VERSION VEHICLE DATA STATUS

PROGRAMMING VERSION VEHICLE DATA STATUS

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI M09 04 07, Date of Issue:  March 2012
MINI: R56 (Cooper, Cooper S); R55 (Cooper Clubman, Cooper S Clubman); R57 (Cooper, Cooper S); R58 (Cooper, Cooper S); R60 (Cooper Countryman, Cooper S Countryman)
GROUP: Programming/Coding Explanations
Superceded Bulletin(s): M09 04 07, Date of Issue:  February 2012

SERVICE INFORMATION

NOTE: This Service Information bulletin supersedes M09 04 07 dated February 2012.
Changes only affect the attachment.

SUBJECT

Programming Version Vehicle Data Status

SITUATION

All affected vehicles have Vehicle Data Status stored in the vehicle, e.g., R056-08-06-500. This Vehicle Data Status describes the current configuration of the vehicle, and is used for programming by ISTA/P.

INFORMATION

To compare the Vehicle Data Status with the ISTA/P version, refer to the attachment or the 3g Technology website on Centernet. For future ISTA/P releases, the attachment will only be posted on the 3g Technology website in Centernet.

ATTACHMENTS

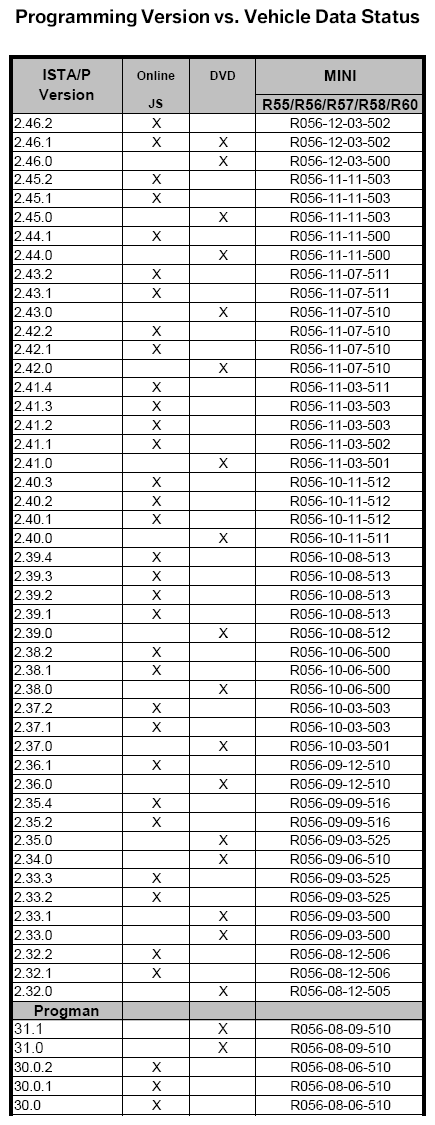

G08586304

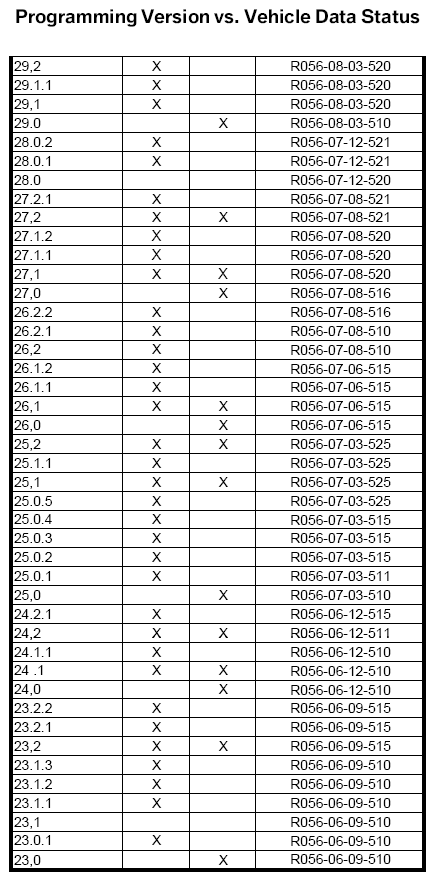

G08586305
