61 13... Crimping annular contacts

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Crimpacll crimping pliers from repair kit 1 are used to crimp annular contacts.

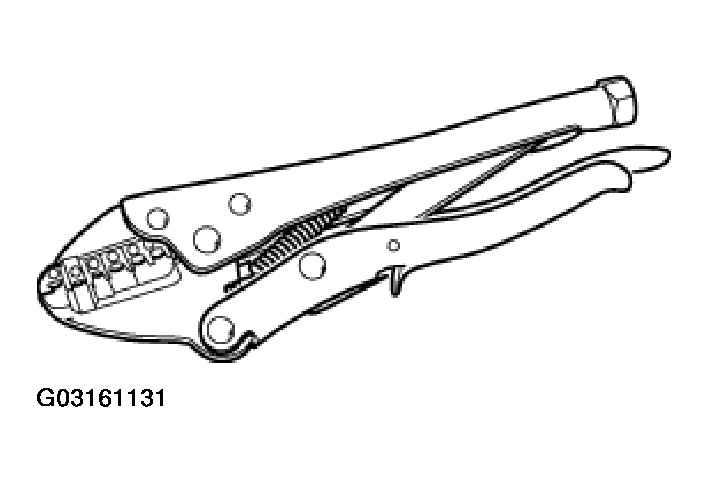

Fig 1: Identifying Crimpacll Crimping Pliers

Courtesy of BMW OF NORTH AMERICA, INC.

Open crimping pliers (1).

NOTE: Place contact (2) in designated nest (observe wire cross-section) with particular care. Make sure it is exactly positioned.

Insert annular contact (2) in crimping pliers (1).

Close crimping pliers (1) gently and keep closed.

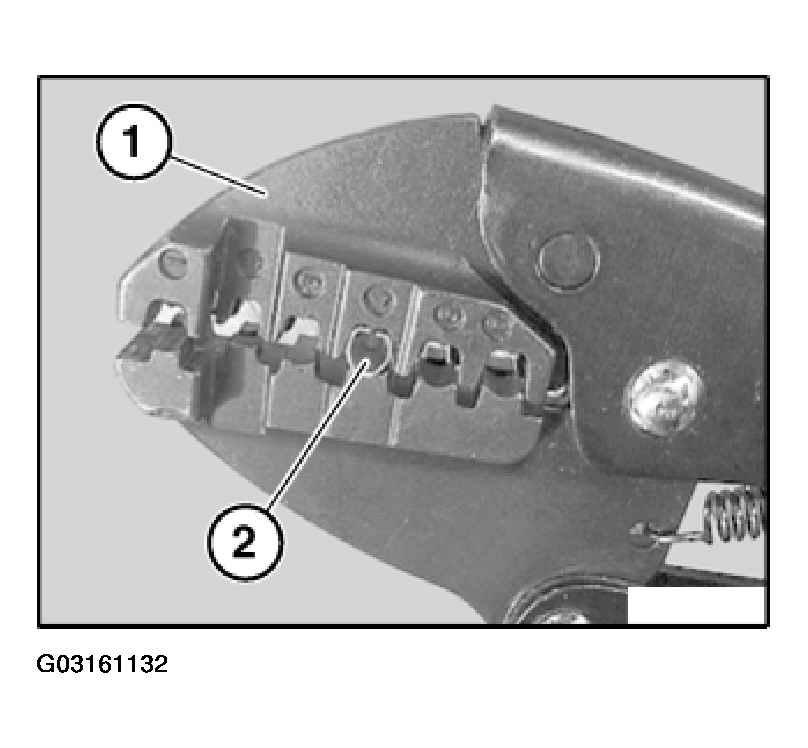

Fig 2: Inserting Annular Contact In Crimping Pliers

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Follow procedure for cutting and stripping insulation from cables.

Feed stripped cable (1) into annular contact (2) completely.

Close crimping pliers (3) fully.

Open crimping pliers (3) and remove cable (2).

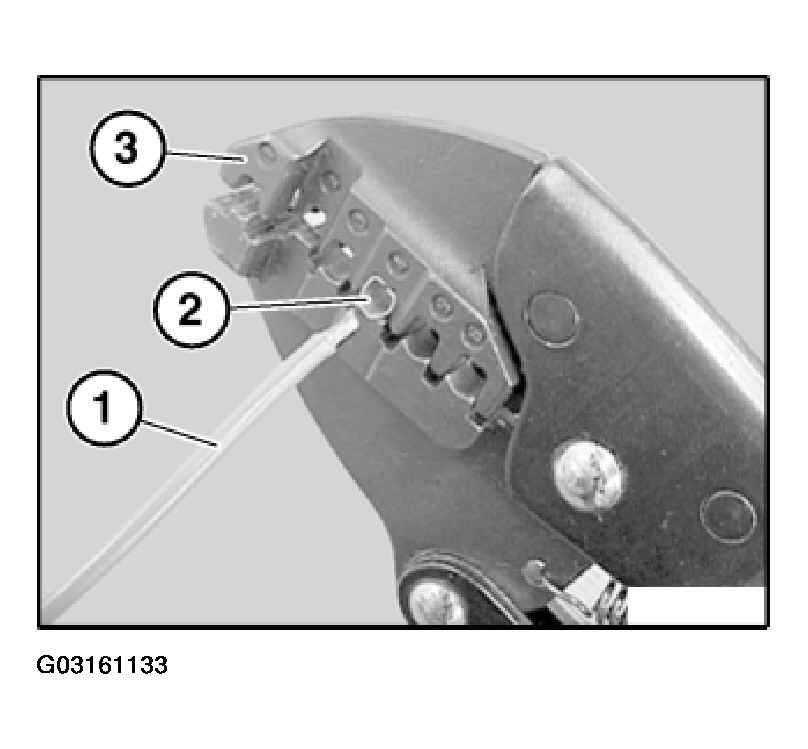

Fig 3: Feeding Stripped Cable Into Annular Contact

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check contact for correct crimping.
