New Programming Feature: Exclusion Of Infotainment Control Units From Programming (M09 01 15)

Publication date: 2016-02-01
Reference number: M09 01 15

NEW PROGRAMMING FEATURE: EXCLUSION OF INFOTAINMENT CONTROL UNITS FROM PROGRAMMING

TECHNICAL SERVICE BULLETIN

Reference Number(s): SI M09 01 15, Date of Issue: February 2016

MINI:	R55 (Clubman); R56 (Cooper); R57 (Cooper Conv.); R58 (JCW Coupe); R59 (JCW Roadster); R60 (Countryman); R61 (Paceman)
GROUP:	Programming/Coding Explanations

Superceded Bulletin(s): SI M09 01 15, Date of Issue: December 2015

NOTE: This Service Information bulletin supersedes SI M09 01 15 dated December 2015.

SUBJECT

New programming feature: Exclusion of Infotainment Control Units from Programming

SITUATION

Programming with ISTA/P 3.57.4, or a more recent update, displays a new Pop-Up window providing options for systems programming.

INFORMATION

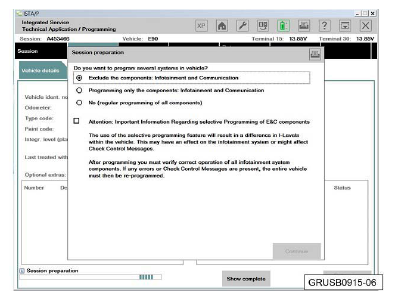

In order to gain flexibility and save time when programming R-Series vehicles, ISTA/P now provides three options (as shown in the screenshot above) for programming the control units on the vehicle:

Selected Option

Control Units Programmed

Infotainment and Communication⁽¹⁾

All other

regular programming of all components - DEFAULT

Partial Programming only excluding Infotainment and Communication

⁽¹⁾	Infotainment and Communication Control Units:

Headunit/Radio
Amplifier
Telephone/Connectivity
Central Display
IDrive

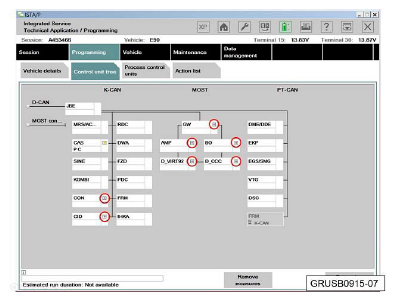

When the complete programming plan has been calculated, the control unit tree displays all control units, indicating with a gray dot which will not be updated.

WARRANTY INFORMATION

Not applicable.
