Functional networking

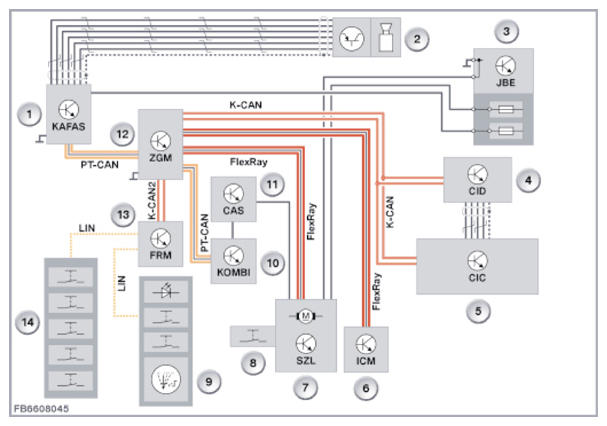

A complex system network with distributed functions in other control units is necessary for implementation of the lane departure warning as well as the high-beam assistant. The following graphic shows the system network.
| Item | Explanation |
|---|---|
| 1 | Control unit for camera-based driver support systems (KAFAS) |
| 2 | Video camera in the inside mirror |
| 3 | Junction Box Electronics (JBE) |
| 4 | Central information display (CID) |
| 5 | Car information computer (CIC) |
| 6 | Integrated chassis management (ICM) |
| 7 | Steering column switch center (SZL) |
| 8 | High beam assistant button |
| 9 | Light switch |
| 10 | Instrument panel (KOMBI) |
| 11 | Car access system (CAS) |
| 12 | Central gateway module (ZGM) |
| 13 | Footwell module (FRM) |
| 14 | Assist systems operating facility |
