Automatic engine start-stop function button
The automatic engine start-stop function button can deactivate the automatic engine start-stop function at any time.
The automatic engine start-stop is reactivated at every manual engine restart.

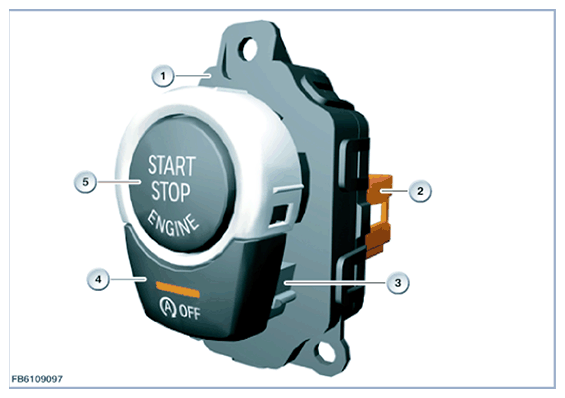

| Item | Explanation |
|---|---|
| 1 | START-STOP button |
| 2 | 10 pin plug connection |
| 3 | MSA button |
| 4 | MSA button with search and function indicator light |
| 5 | START-STOP button with locator lighting |

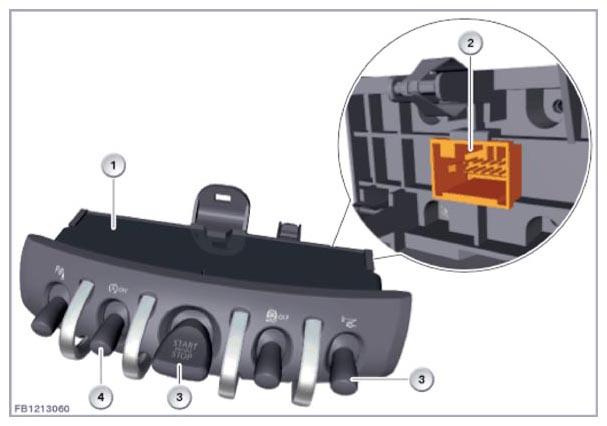

The following graphic shows the automatic engine start-stop function button in the center console control panel, taking F56 as an example.
| Item | Explanation |
|---|---|
| 1 | Center console control panel |
| 2 | 14 pin plug connection |
| 3 | START-STOP button |
| 4 | Automatic engine start-stop function button |
