Wiring Diagrams

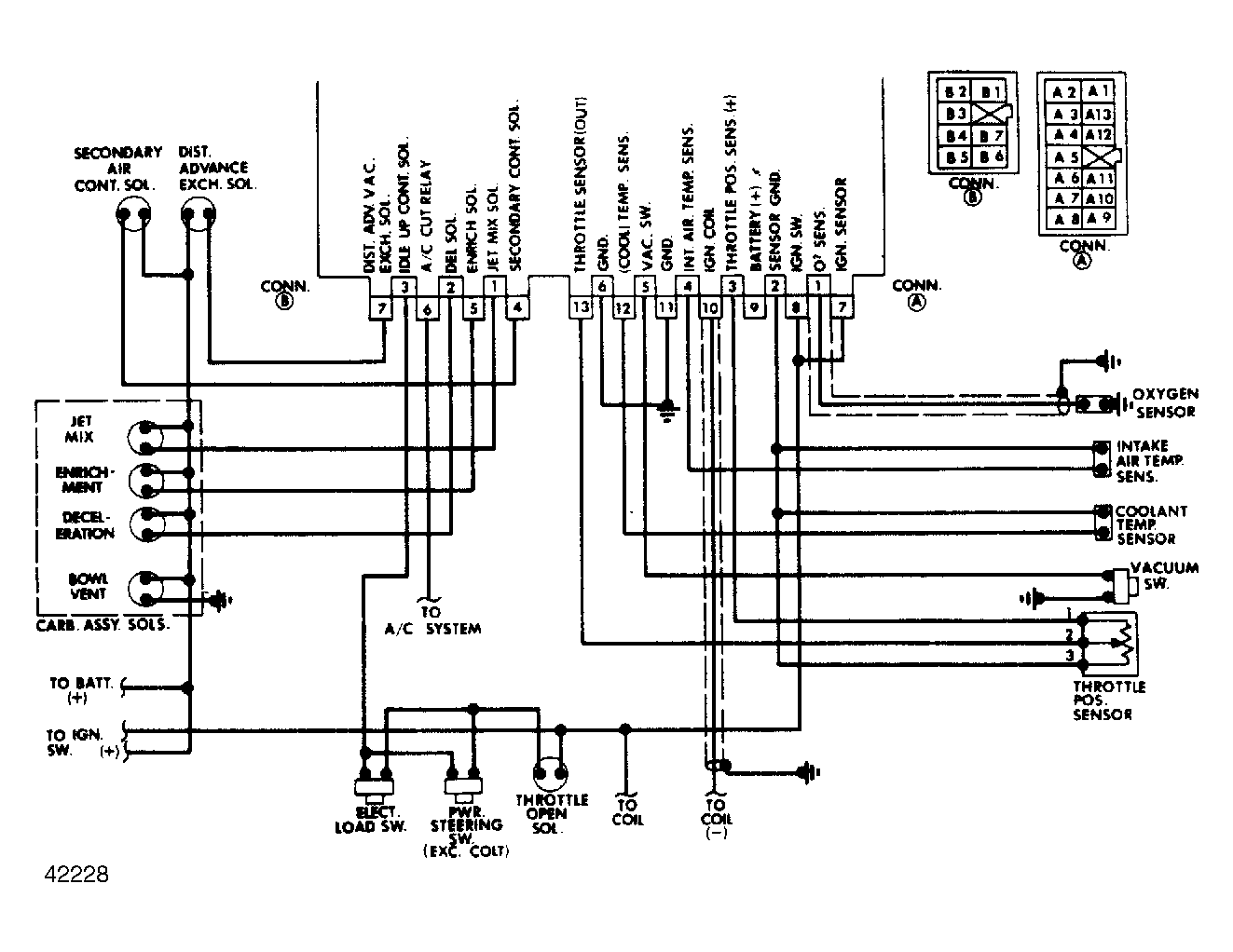

Fig 1: Feedback Carburetor Wiring Diagram for Cordia & Tredia

G42228

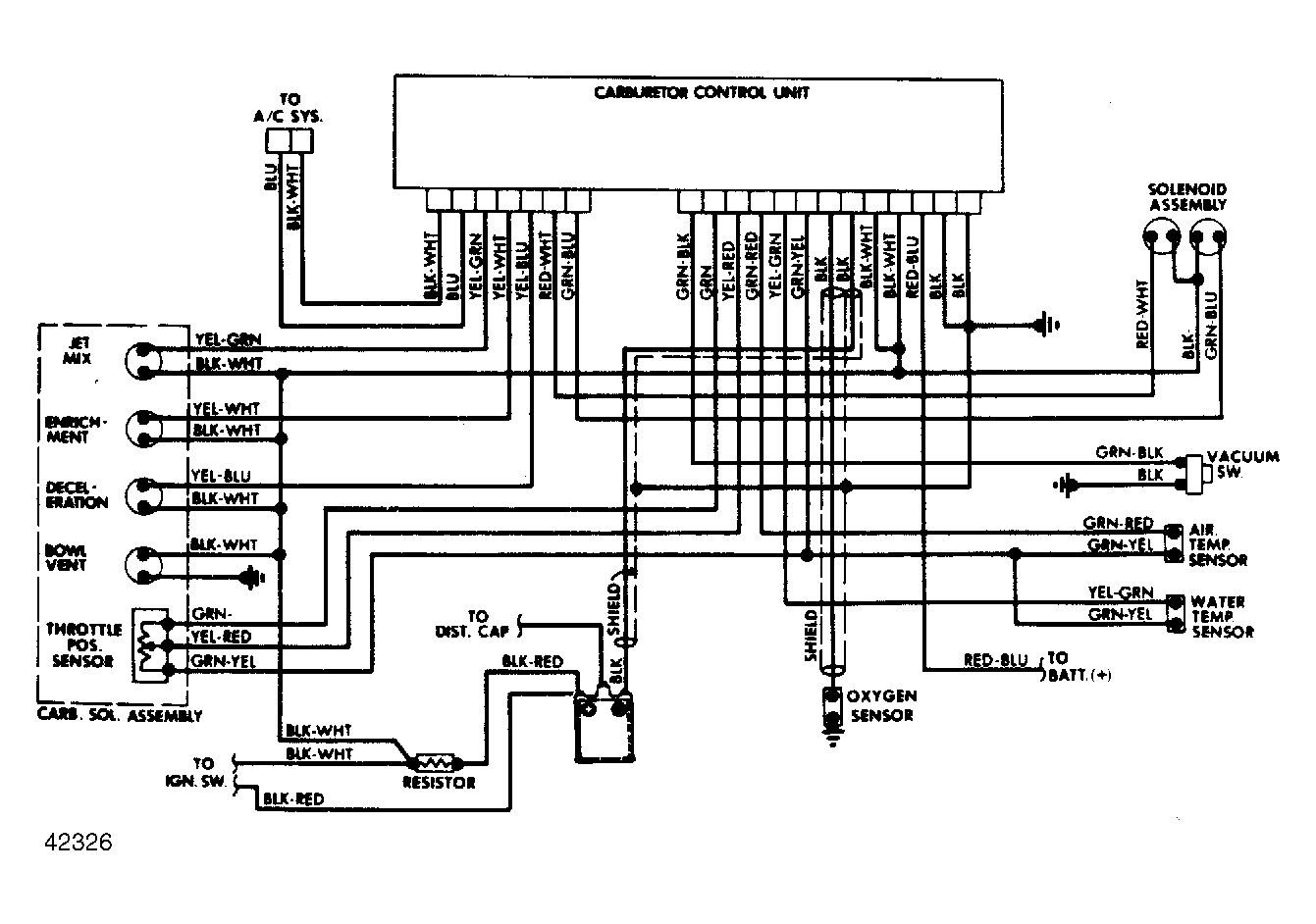

Fig 2: Feedback Carburetor Wiring Diagram for Montero

G42326
