Deceleration Spark Advance

When engine speed sensor detects 1500-2500 RPM, it activates a solenoid which changes intake manifold vacuum to carburetor ported vacuum, maintaining smooth vehicle operation .

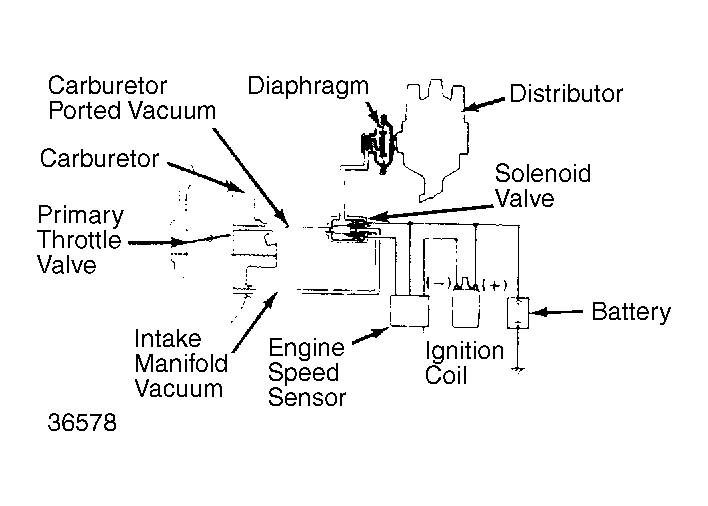

Fig 1: Deceleration Spark Advance System
G36578
