Light Engine Load

When a light engine load condition exists, throttle opener system stops working and engine runs at normal speed.

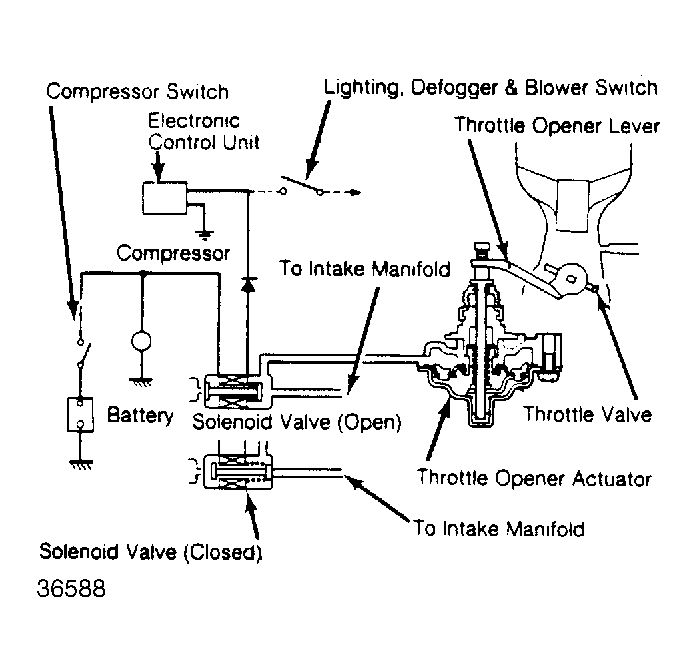

Fig 1: Air Conditioning Throttle Opener System (Typical)

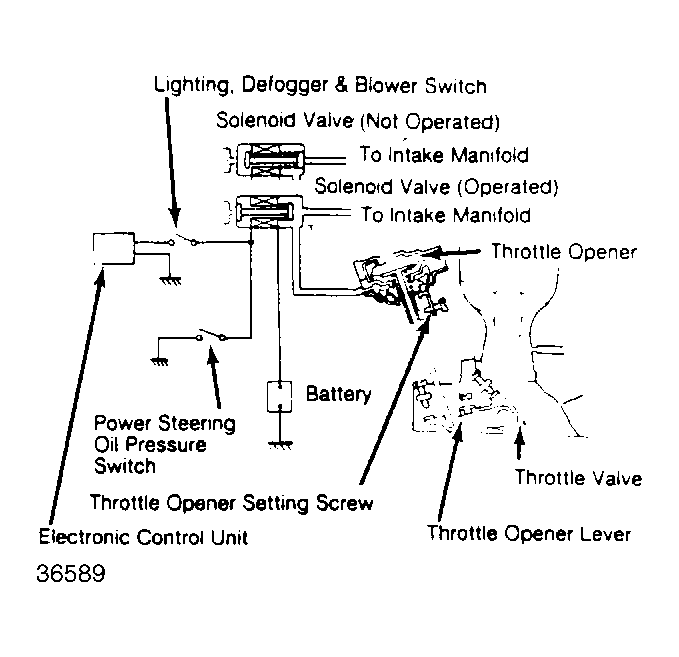

Fig 2: Power Steering & Electrical Load Throttle Opener System (Typical)
