ECI System Check Charts

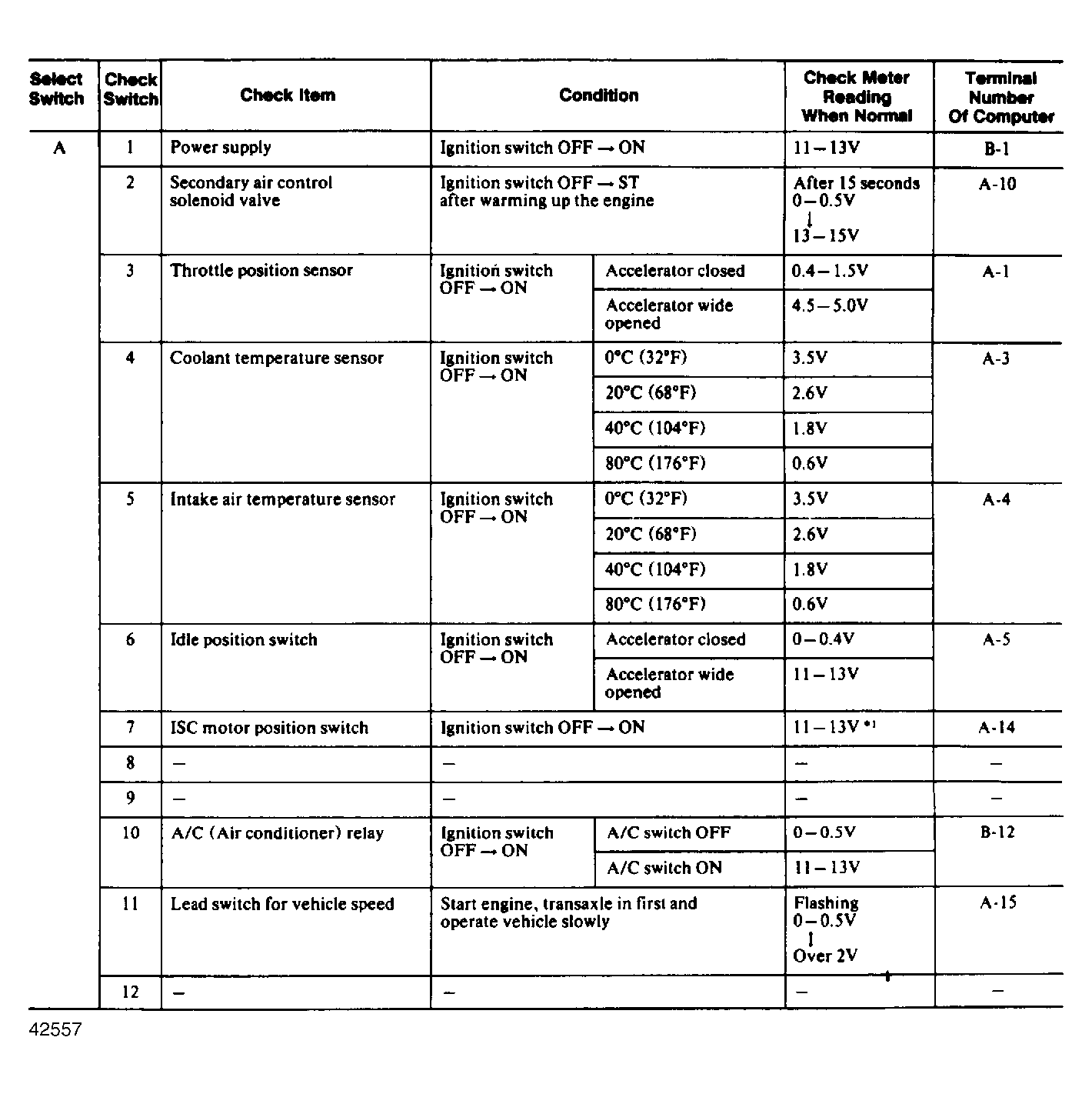

Fig 1: Mitsubishi Motors Starion ECI Check Chart (1 of 2)

G42557

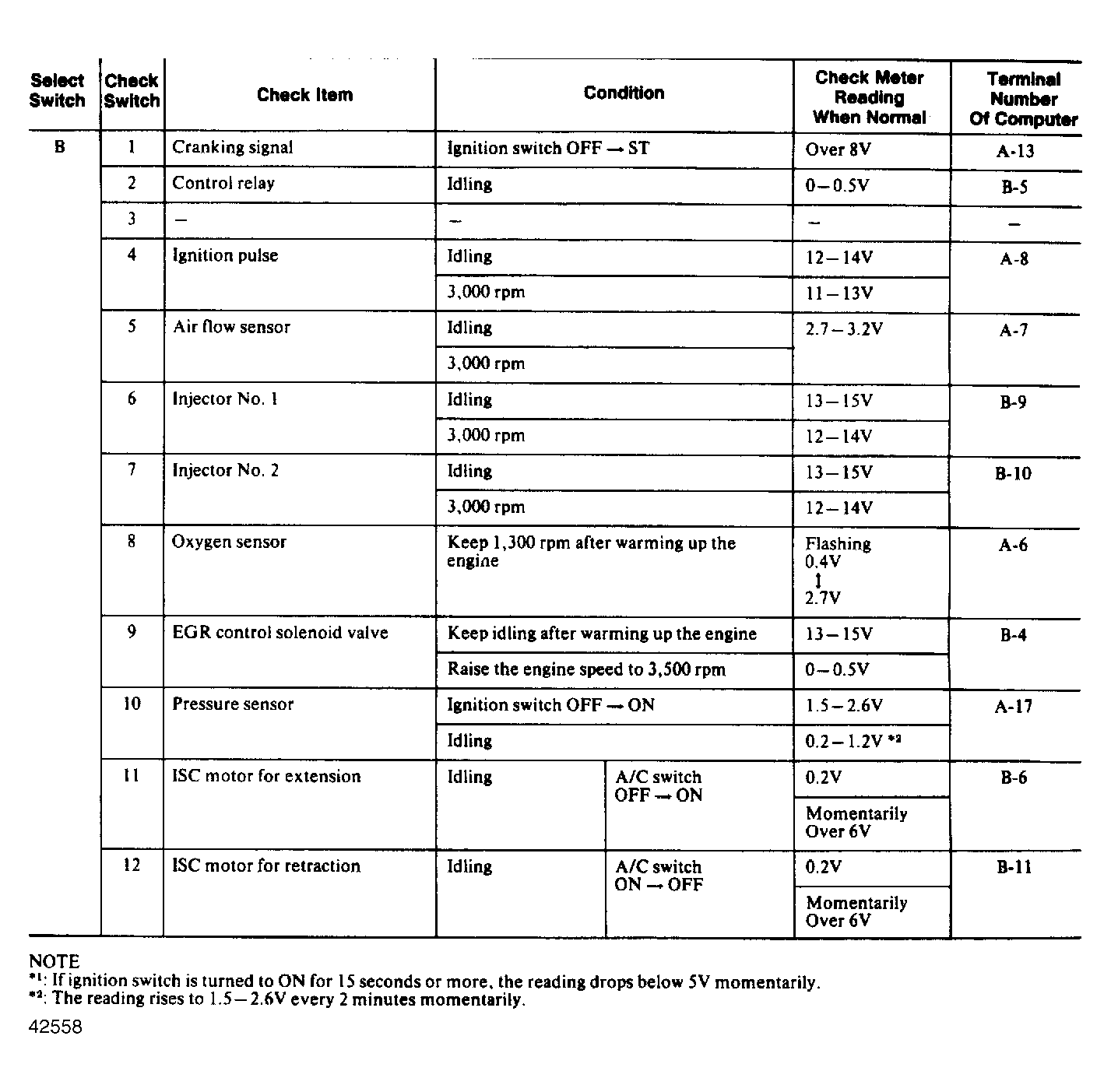

Fig 2: Mitsubishi Motors Starion ECI Check Chart (2 of 2)

G42558

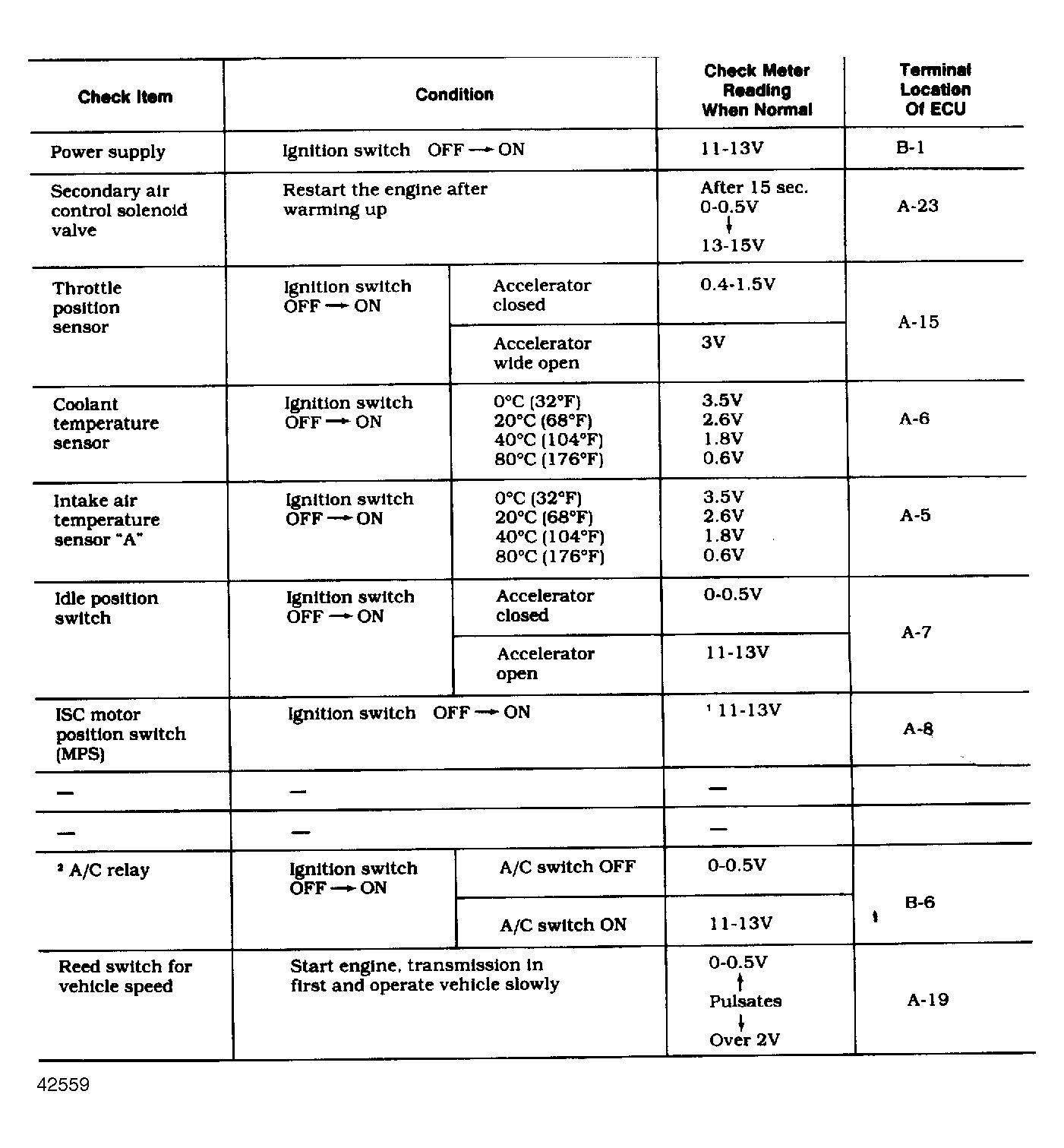

Fig 3: Intercooled Turbo Models ECI Check Chart (1 of 2)

G42559

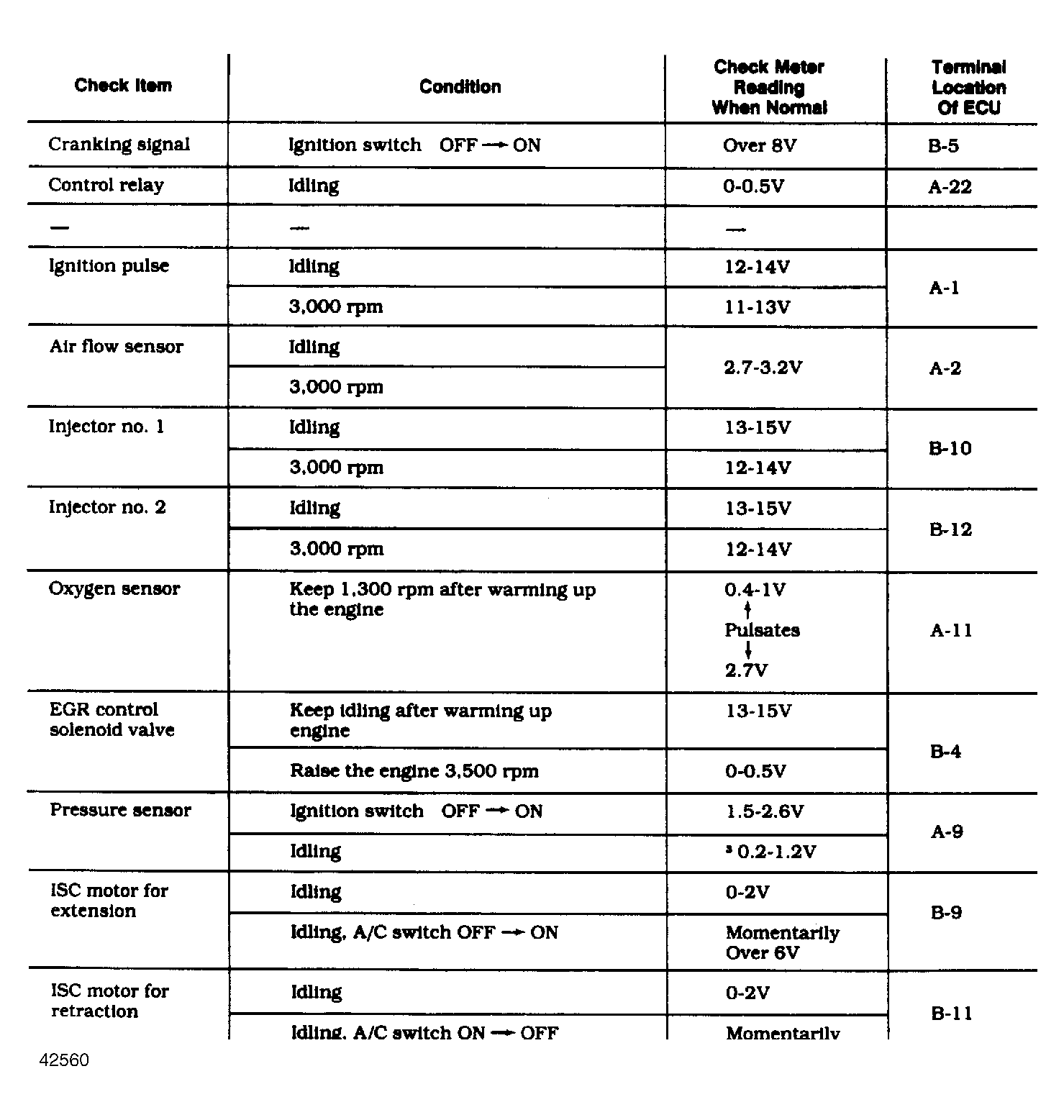

Fig 4: Intercooled Turbo Models ECI Check Chart (2 of 2)

G42560
