Wiring Diagrams

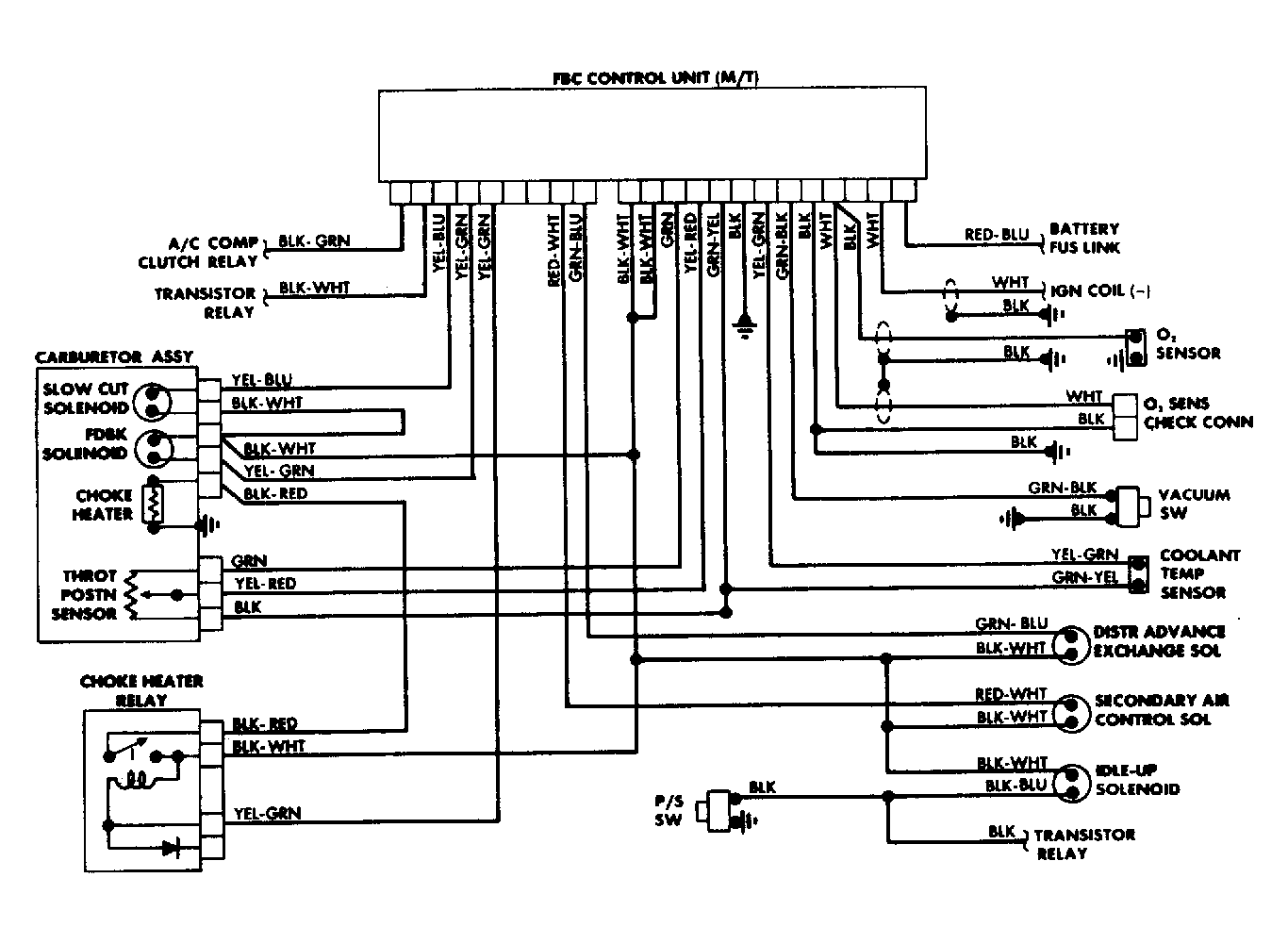

Fig 1: Wiring Diagram For Cordia & Tredia (Manual Transmission)
G61371
Fig 2: Wiring Diagram For Cordia & Tredia (Automatic Transmission)
G61372
Fig 3: Wiring Diagram For Mirage
G61374

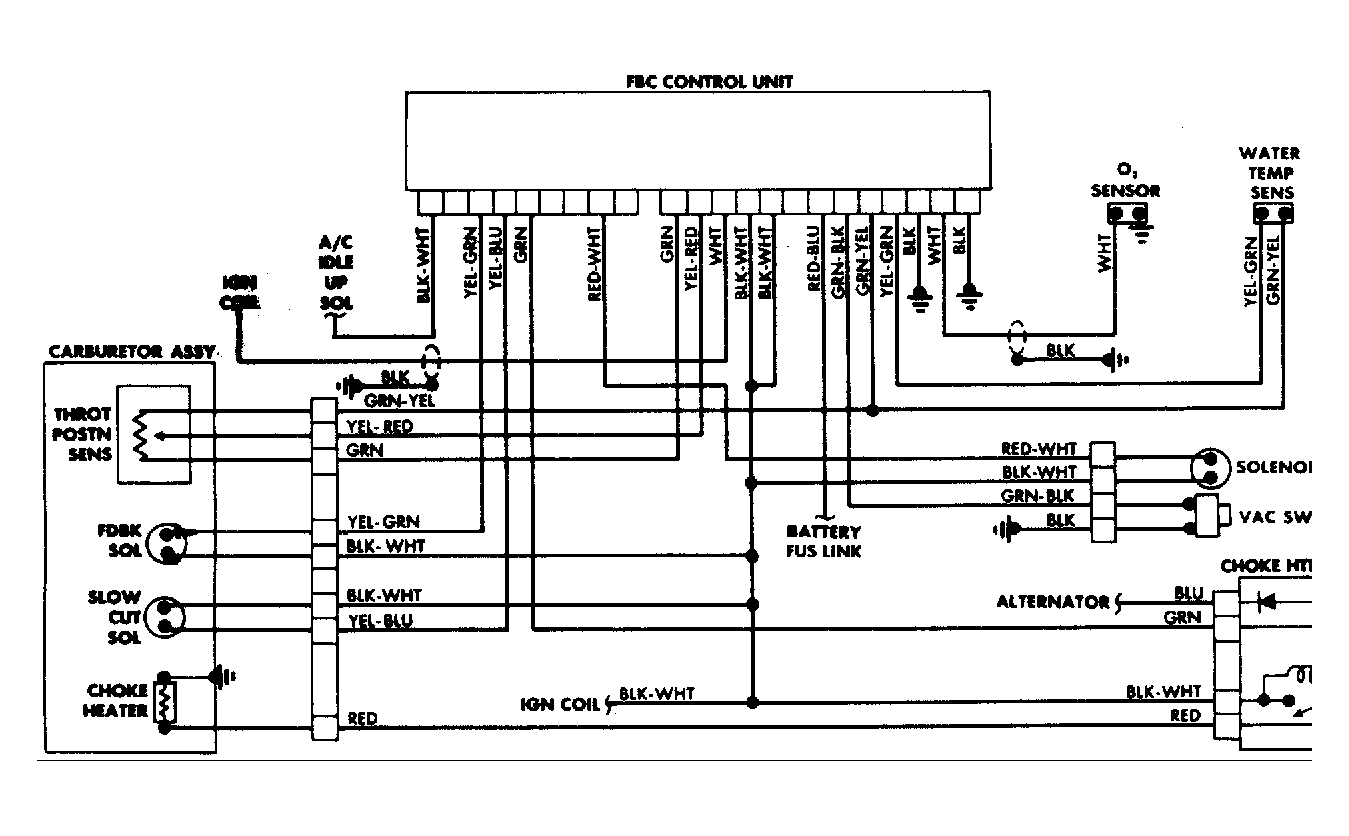

Fig 4: Wiring Diagram For Pickup
G61373

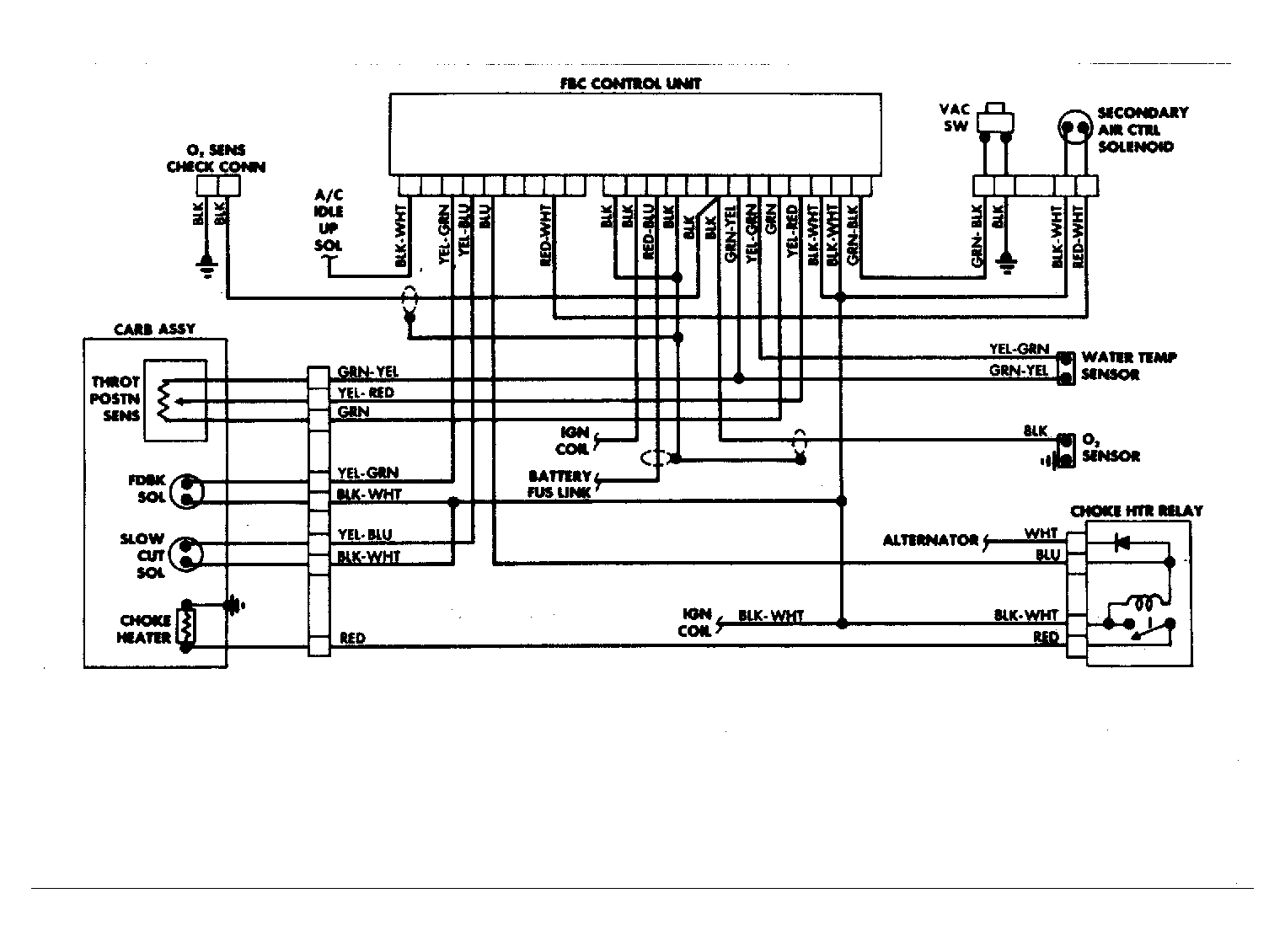

Fig 5: Wiring Diagram For Montero
G61376
