EGR Control Valve

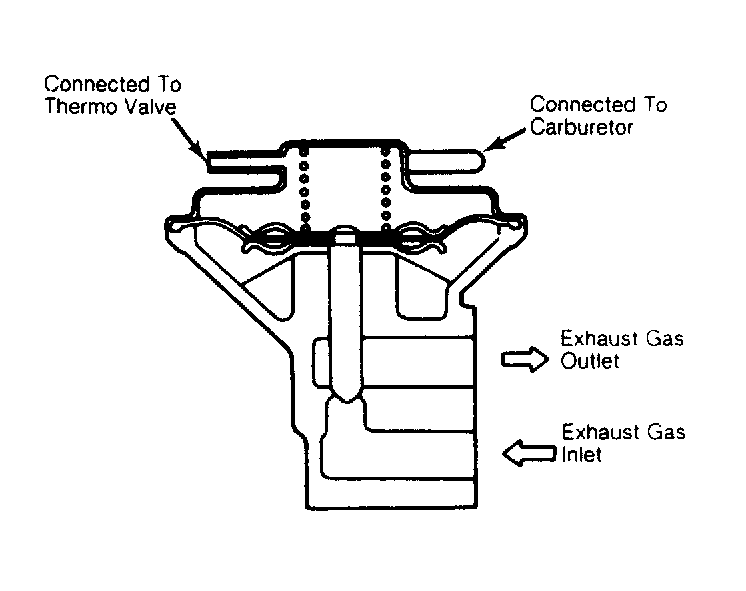

The EGR control valve is controlled by carburetor vacuum in response to throttle valve opening, while EGR flow is suspended at idle and wide open throttle operations. The thermo valve controls vacuum that is applied on the EGR control valve. See Fig 1 .
