Sub EGR Control Valve

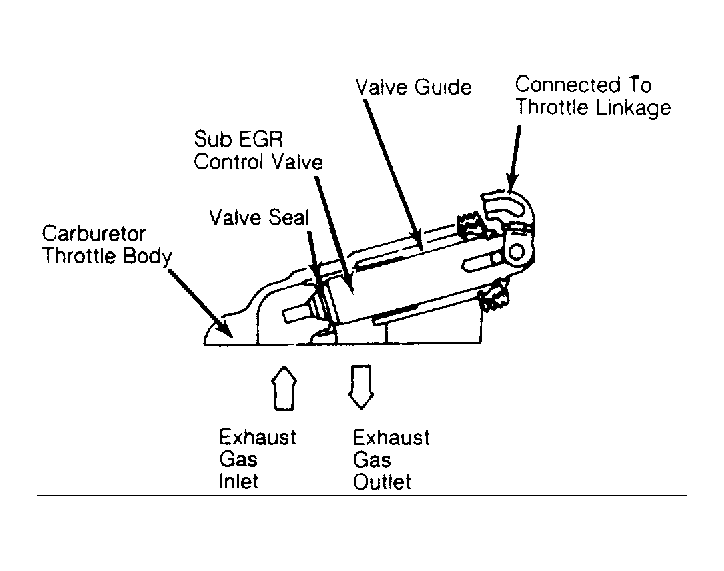

The sub EGR control valve opens and closes in unison with the movement of the throttle valve due to a linkage. See Fig 1 . This is done to closely modulate EGR flow controlled by the EGR control valve in response to the throttle valve opening.
