Solenoid Valve

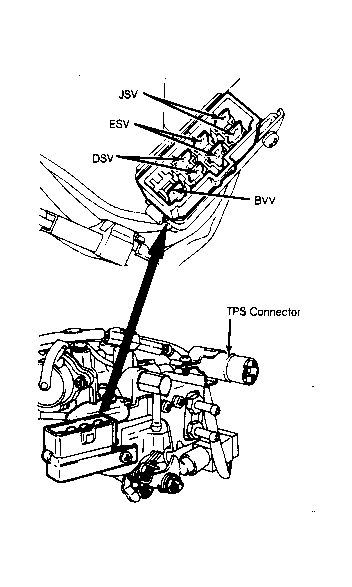

Disconnect solenoid valve connector. Check solenoid valve coil for continuity using an ohmmeter between terminals. See Fig 1 . If an open or short circuit is found, replace solenoid valve.
SOLENOID VALVE CONNECTOR TERMINALS
| Valve | Ohms |
|---|---|
| Deceleration Solenoid (DSV) | 50.0 |
| Enrichment Solenoid (ESV) | 50.0 |
| Jet Mixture Solenoid (JSV) | 50.0 |
| Bowl Vent Solenoid (BVV) | 80.0 |
