Service Point Locations

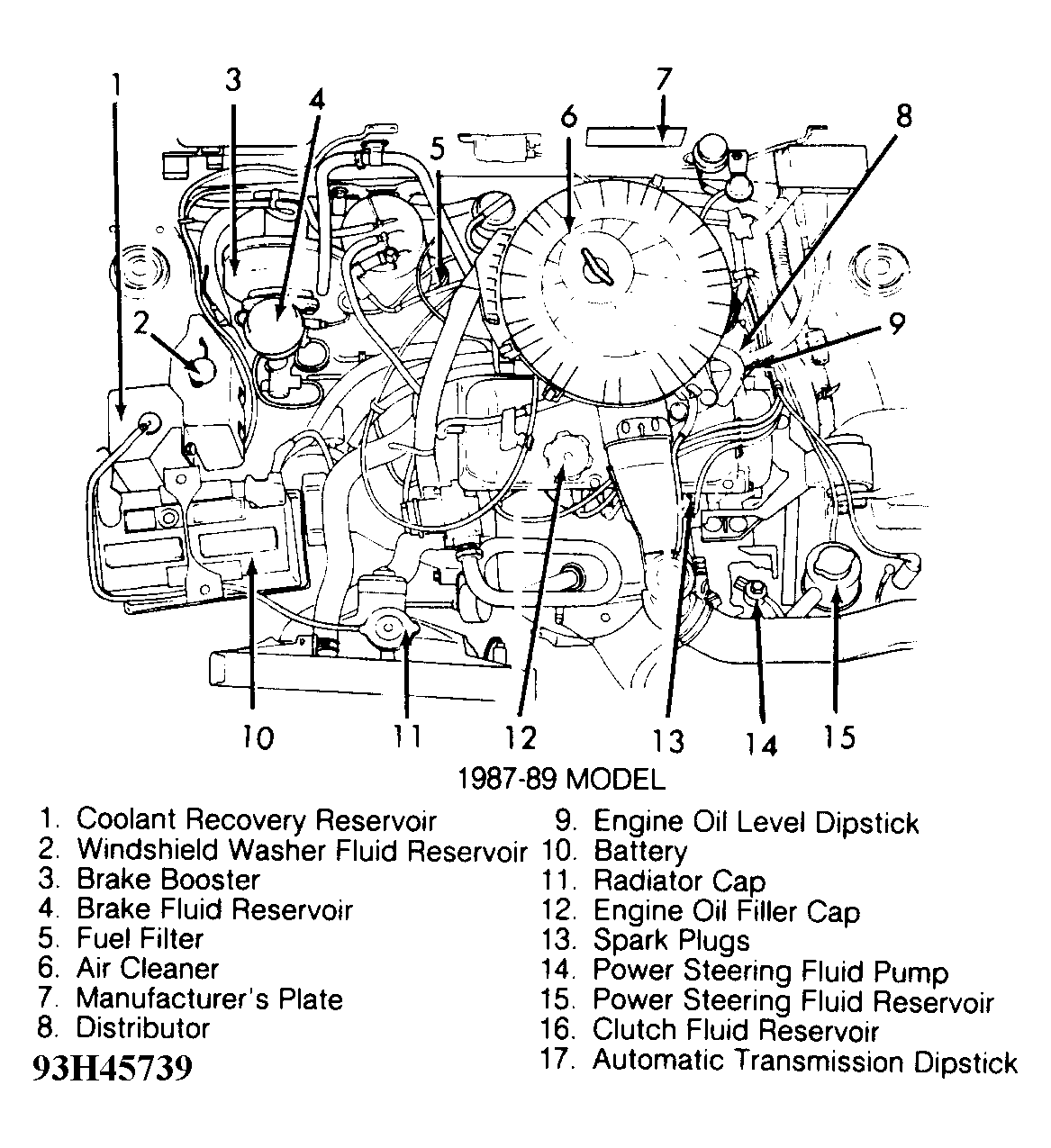

Fig 1: Service Point Locations (1987-89 Engines)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

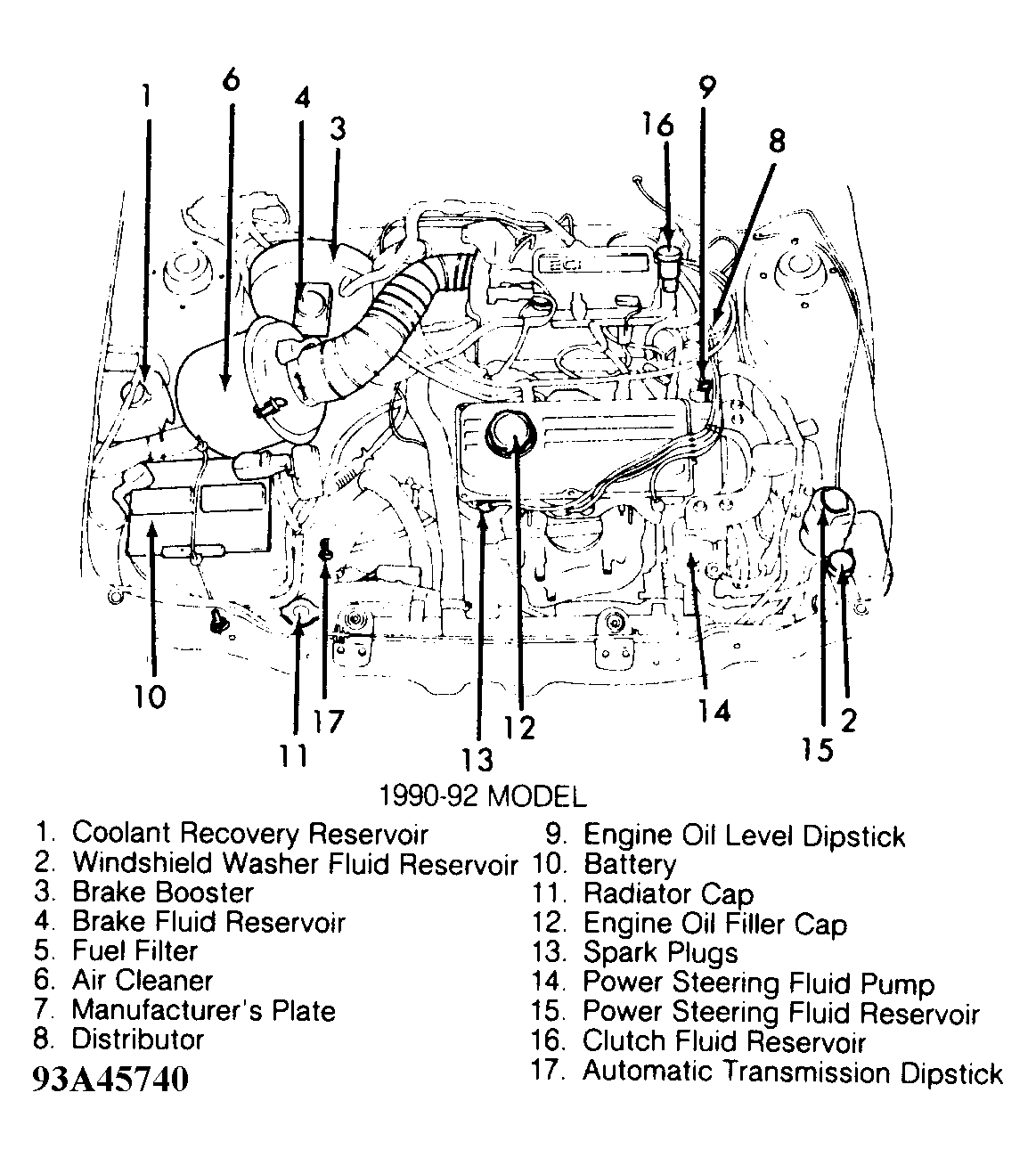

Fig 2: Service Point Locations (1990-92 Engines)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

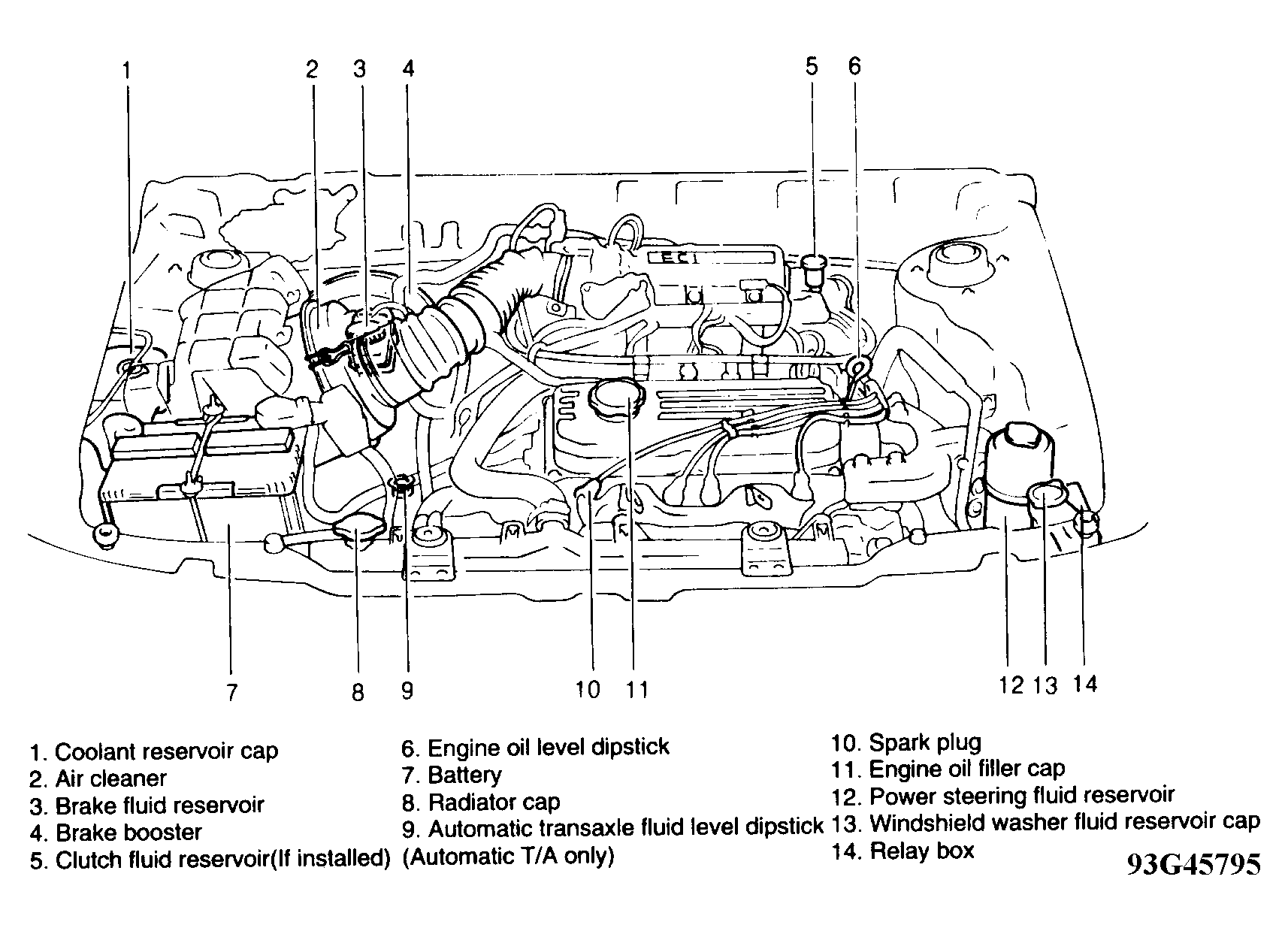

Fig 3: Service Point Locations (1993-94 Engines)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
