Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

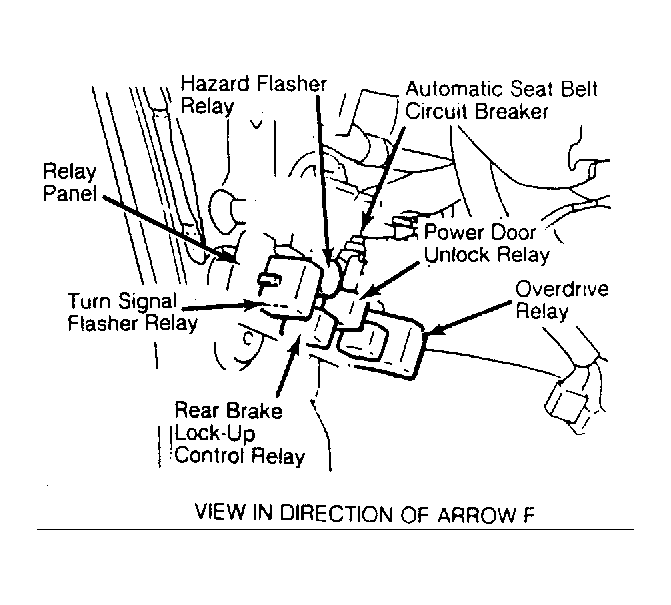

Automatic Seat Belt Circuit Breaker Under left side of dash. See Figure .
Fuse Block Under left side of dash.
Fusible Links
Main Fusible Link Near positive battery terminal.
Sub-Fusible Link No. 1 Next to front relay panel. See Figure .
Sub-Fusible Link No. 2 Near positive battery terminal.
