Control Units

CONTROL UNITS LOCATION

Component Location
Auto. A/C Control Unit Behind automatic A/C panel.
Auto. A/C Temp. Controller On evaporator housing.
Auto. Seat Belt Control Unit Under center console, below radio.

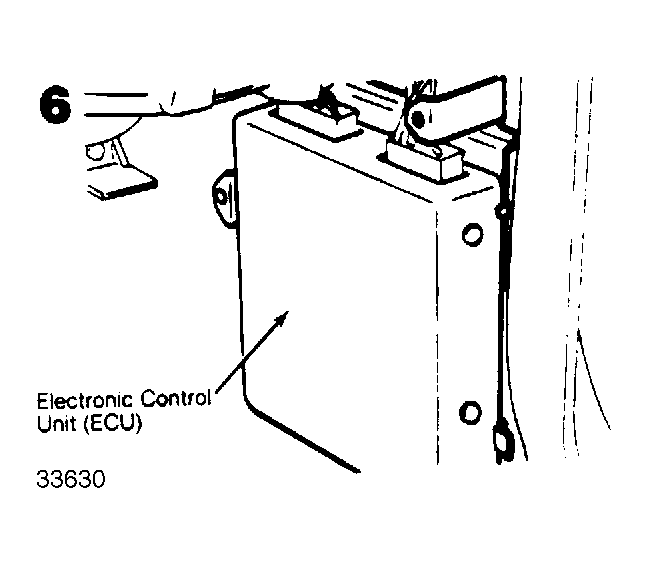

Electronic Control Unit (ECU) On right side kick panel. See Figure .

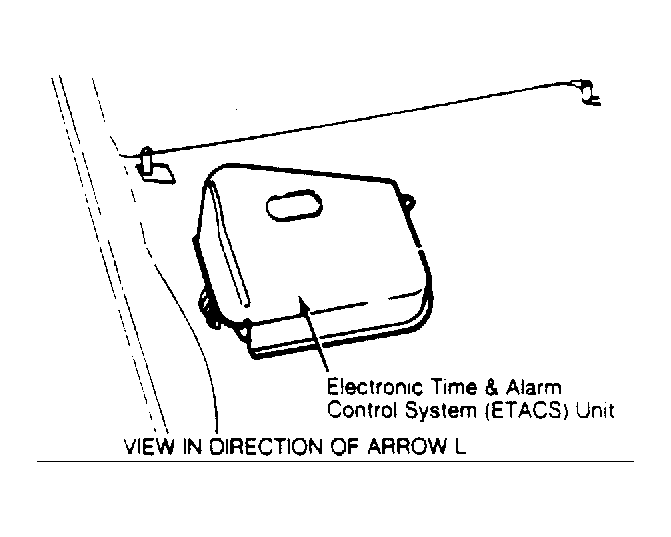

Electronic Time & Alarm Control System (ETACS) Unit Under driver's seat. See Figure .

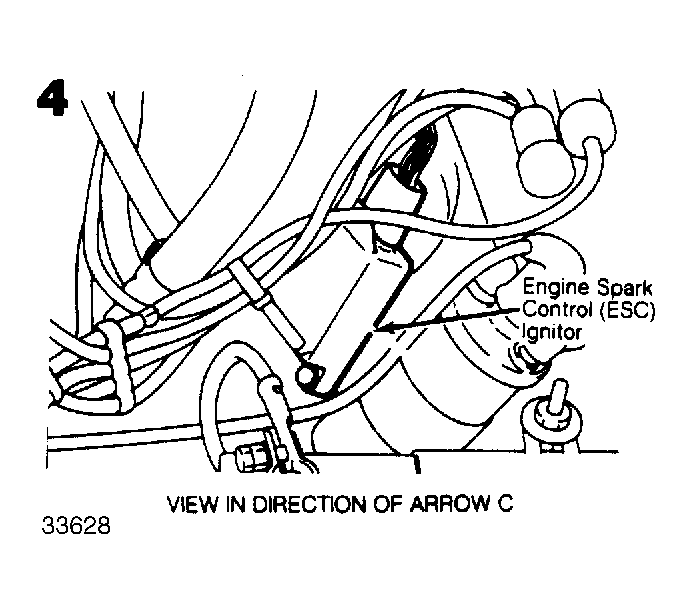

Engine Spark Control (ESC) Ignitor On left inner fender panel. See Figure .
Instrument Panel Lighting Control On A/C evaporator housing.

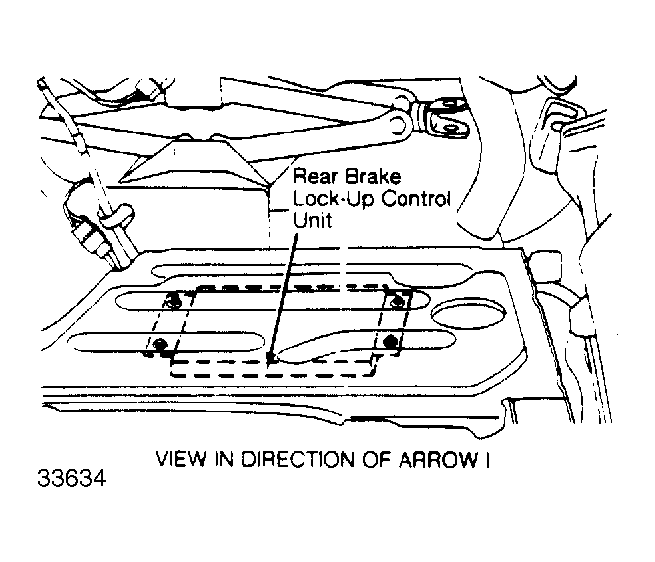

Rear Brake Lock-Up Control Unit Under luggage compartment panel. See Figure .
Speed Control Unit Behind left quarter trim panel, behind door.
