Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location |
|---|---|
| A/C-Heater Blower Motor Resistor | On blower motor housing. |
| Auto. A/C Power Transistor | On blower unit air outlet. |
| A/T Diode | Above left kick panel. |
| Diagnostic Connector | Under right side of dash. |

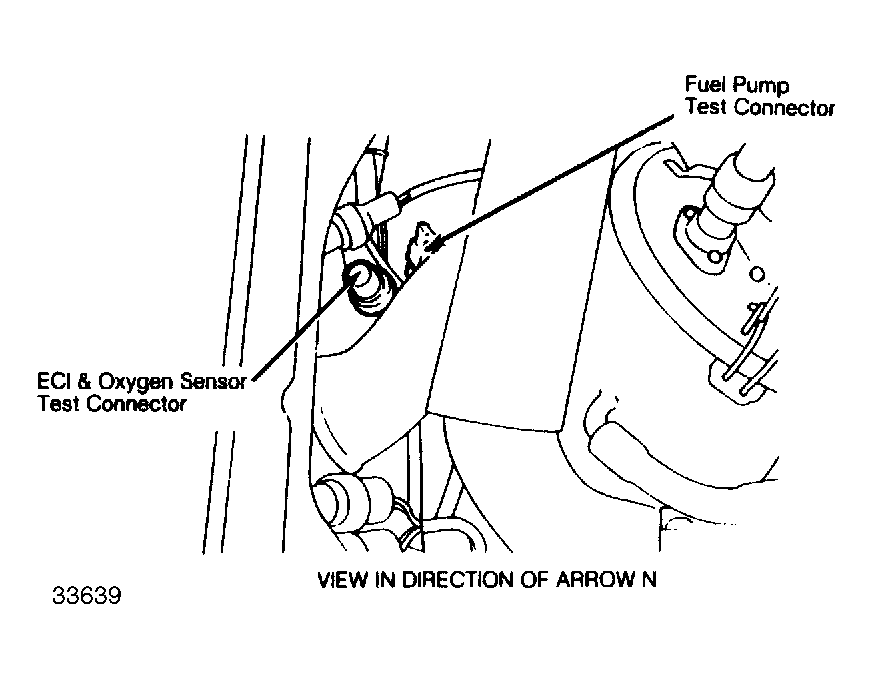

| ECI & Oxygen Sensor Test Conn. | Near right shock tower. See Figure . |
| Electric Controlled Injection (ECI) Diodes | One behind right kick panel, and one behind left side of dash. |

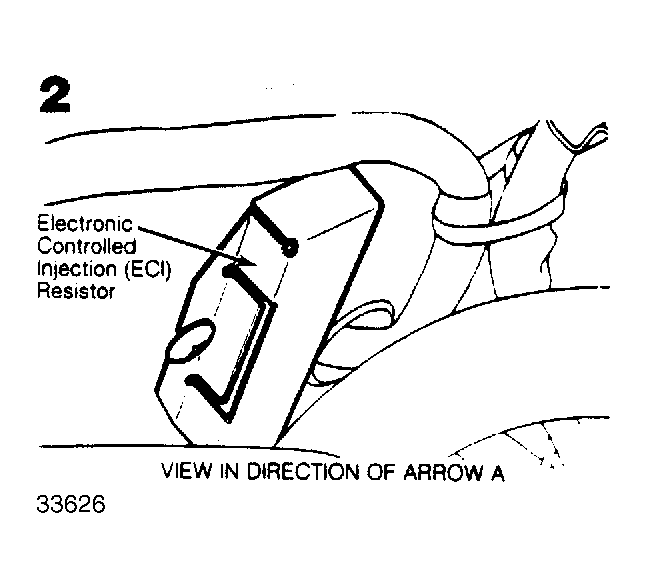

| Electronic Controlled Injection (ECI) Resistors | On right headlight support. See Figure . |
| Fog Light Diodes | One behind dash, and one to right of center console. |
| Fuel Pump Test Connector | Near right shock tower. See Figure . |

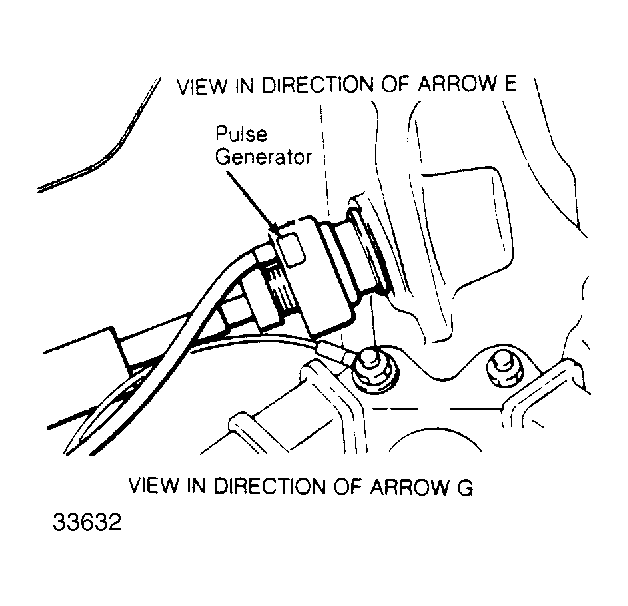

| Pulse Generator | On transmission extension housing. See Figure . |
| Rear Brake Lock-Up Diode | Above left kick panel. |
| Rear Brake Lock-Up Cont. Modulator | In right rear corner of engine bay. |
| Rear Brake Lock-Up Resistor | Above left kick panel. |
| Relay Panels | On left kick panel, and on left front corner of engine bay. See Figure & Figure . |
