Ecu Terminal Identification

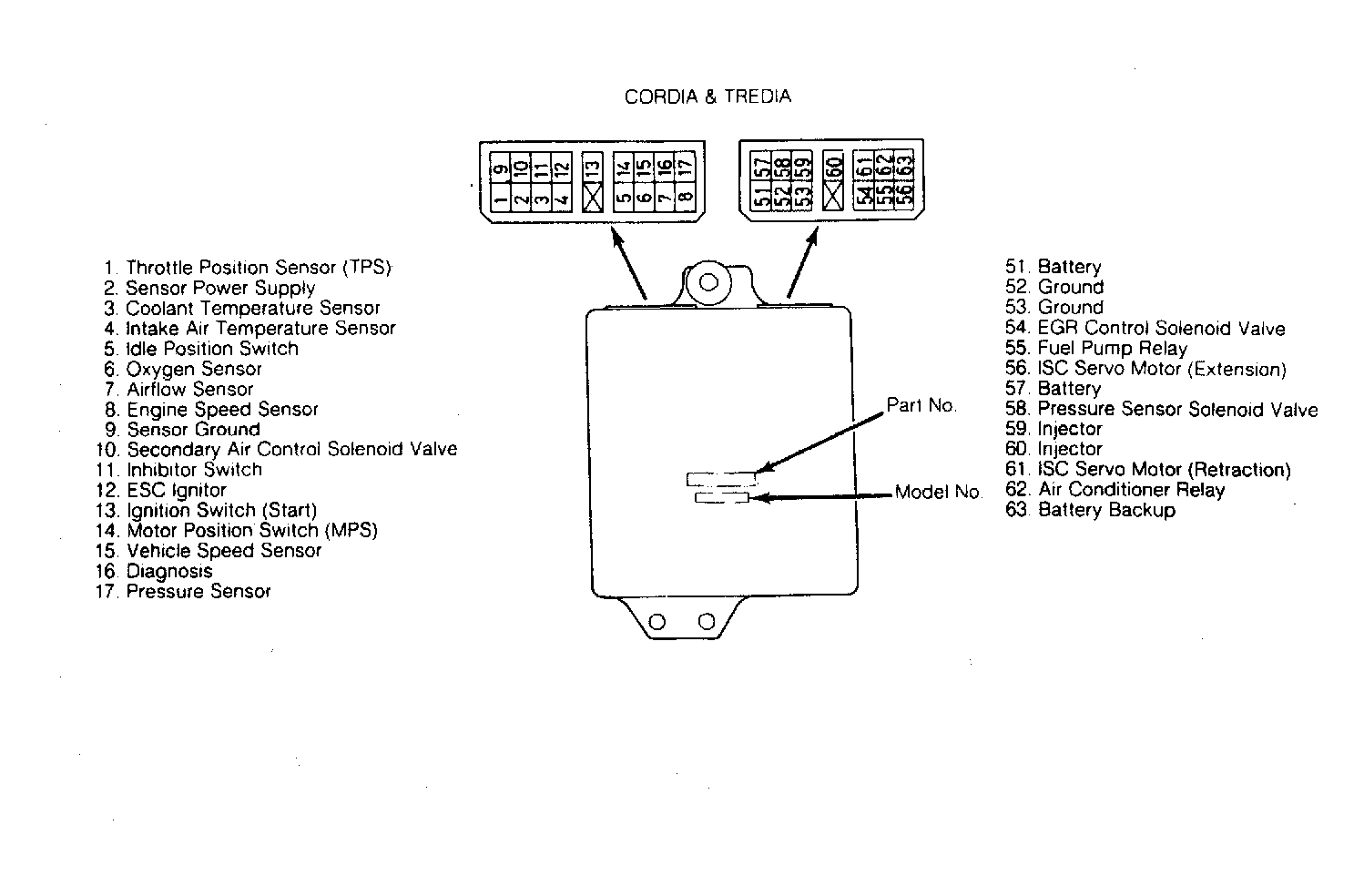

Fig 1: Electronic Control Unit Connector Pin Location & Function (Cordia & Tredia)
G61403

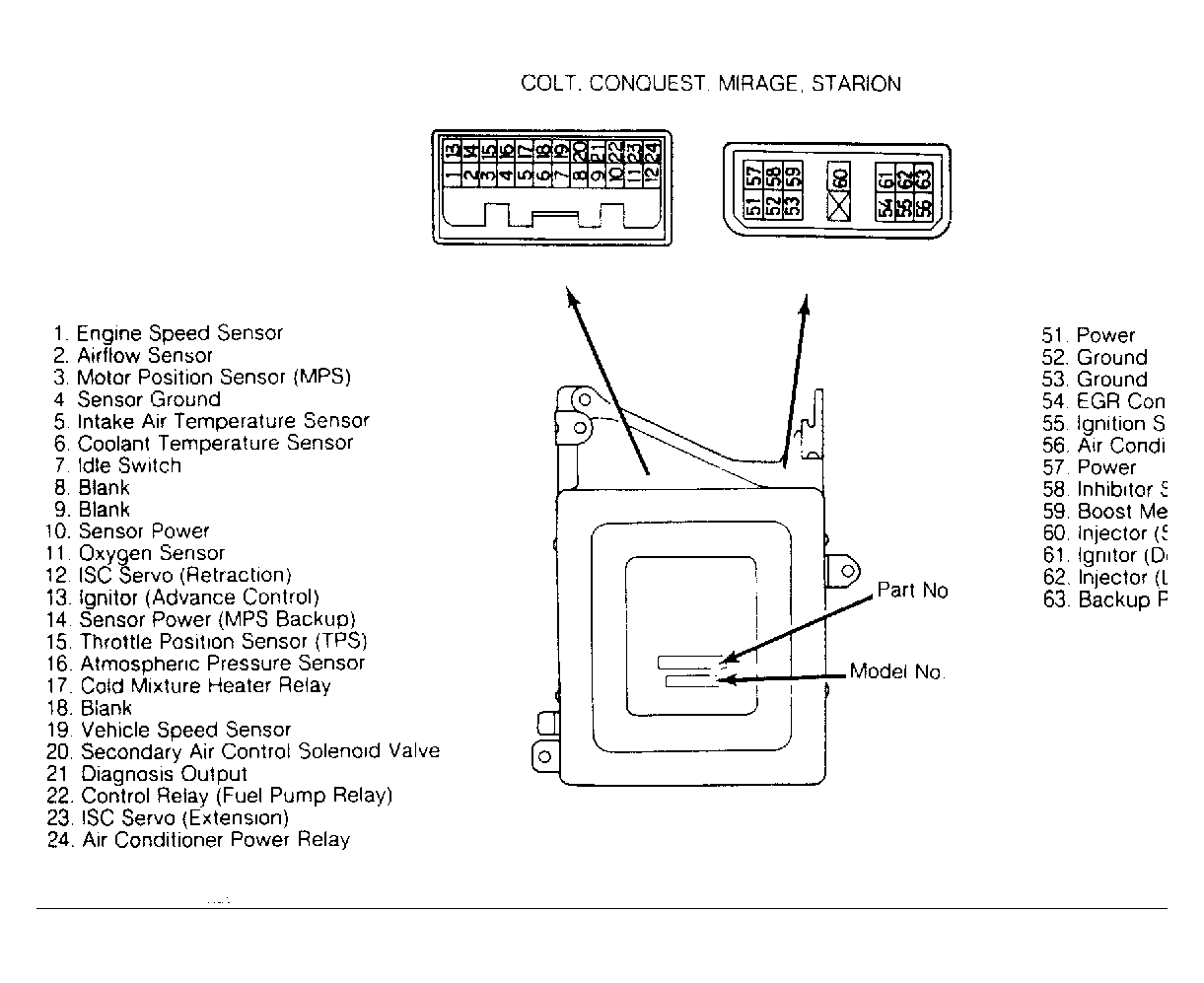

Fig 2: Electronic Control Unit Connector Pin Location & Function (Mirage & Starion)
G61402
