Output Signal Charts

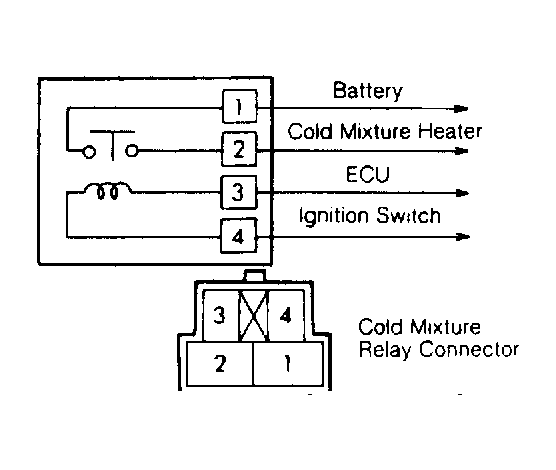

Fig 1: Checking Cold Mixture Heater Relay

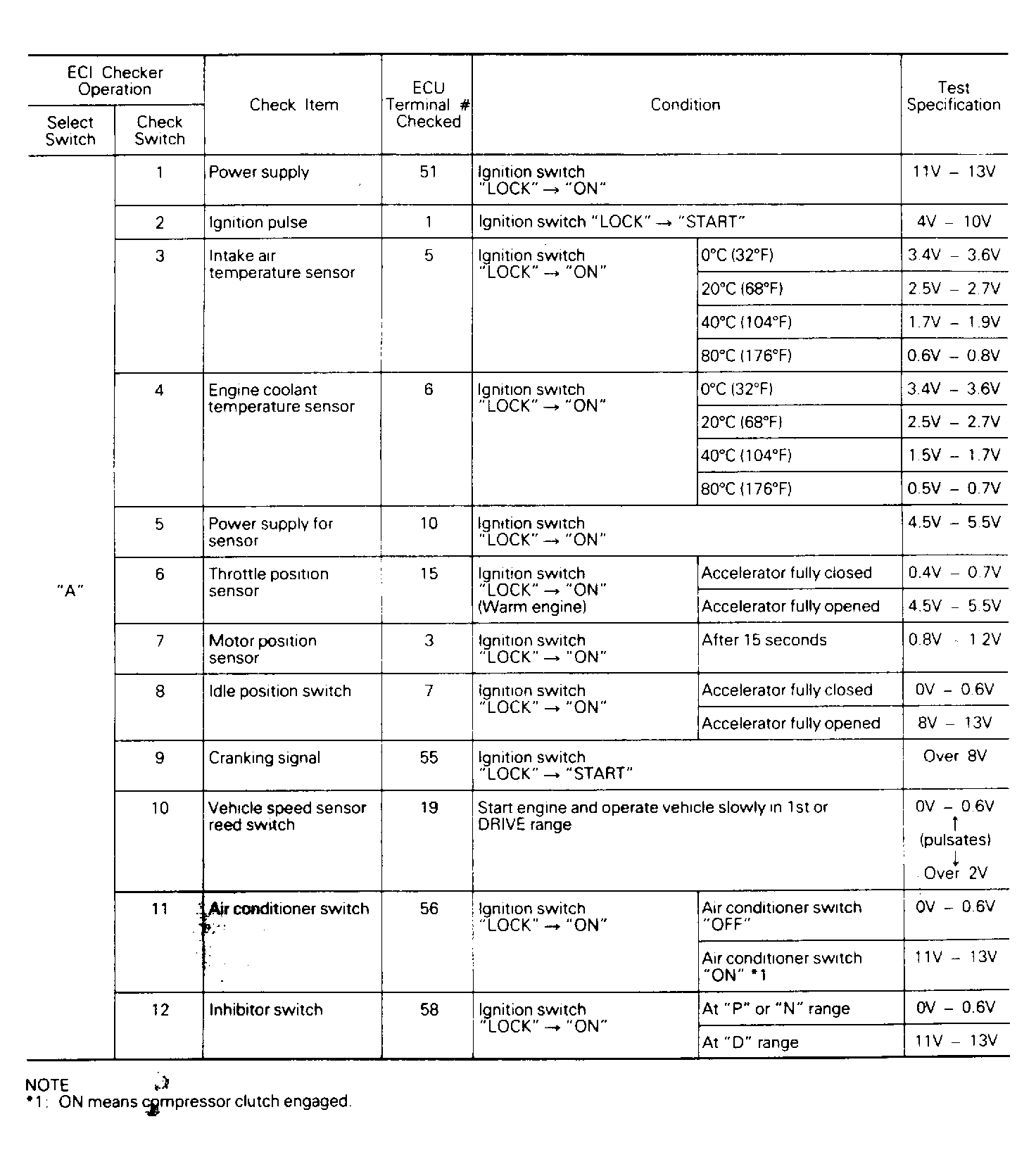

Fig 2: Output Signal Chart for Cordia & Tredia

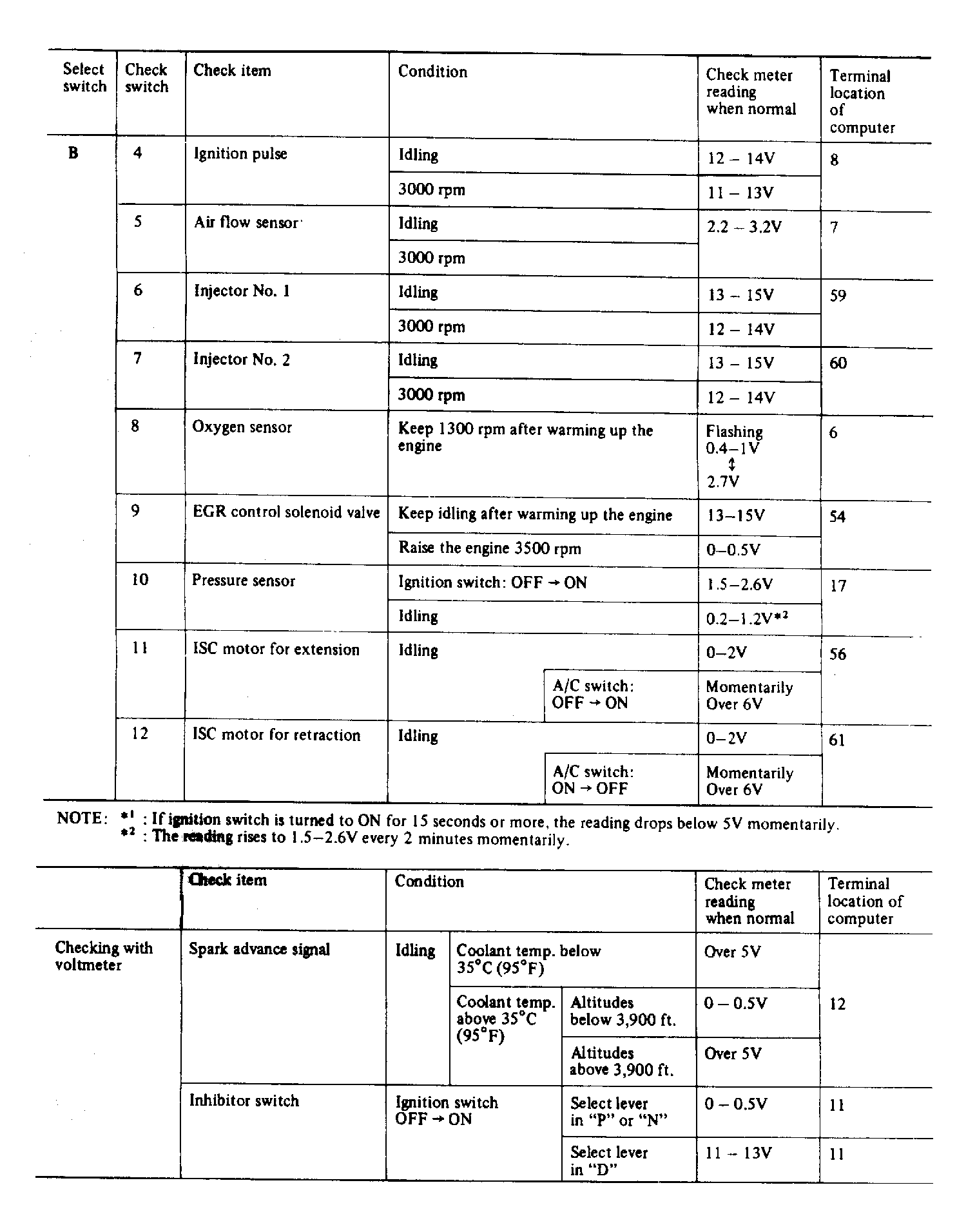

Fig 3: Output Signal Chart for Cordia & Tredia (Continued)

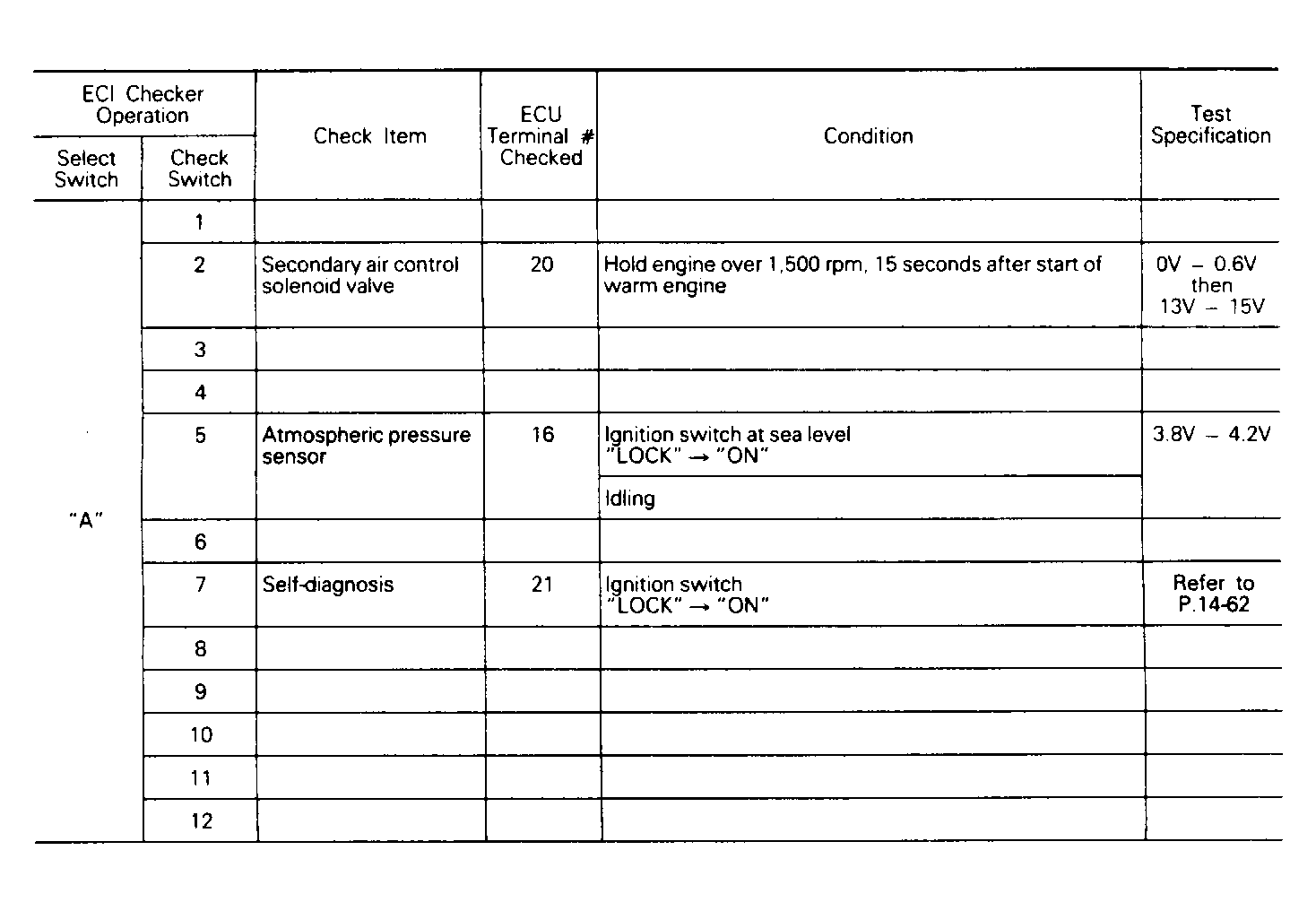

Fig 4: Output Signal Chart for All Others (Step 1)

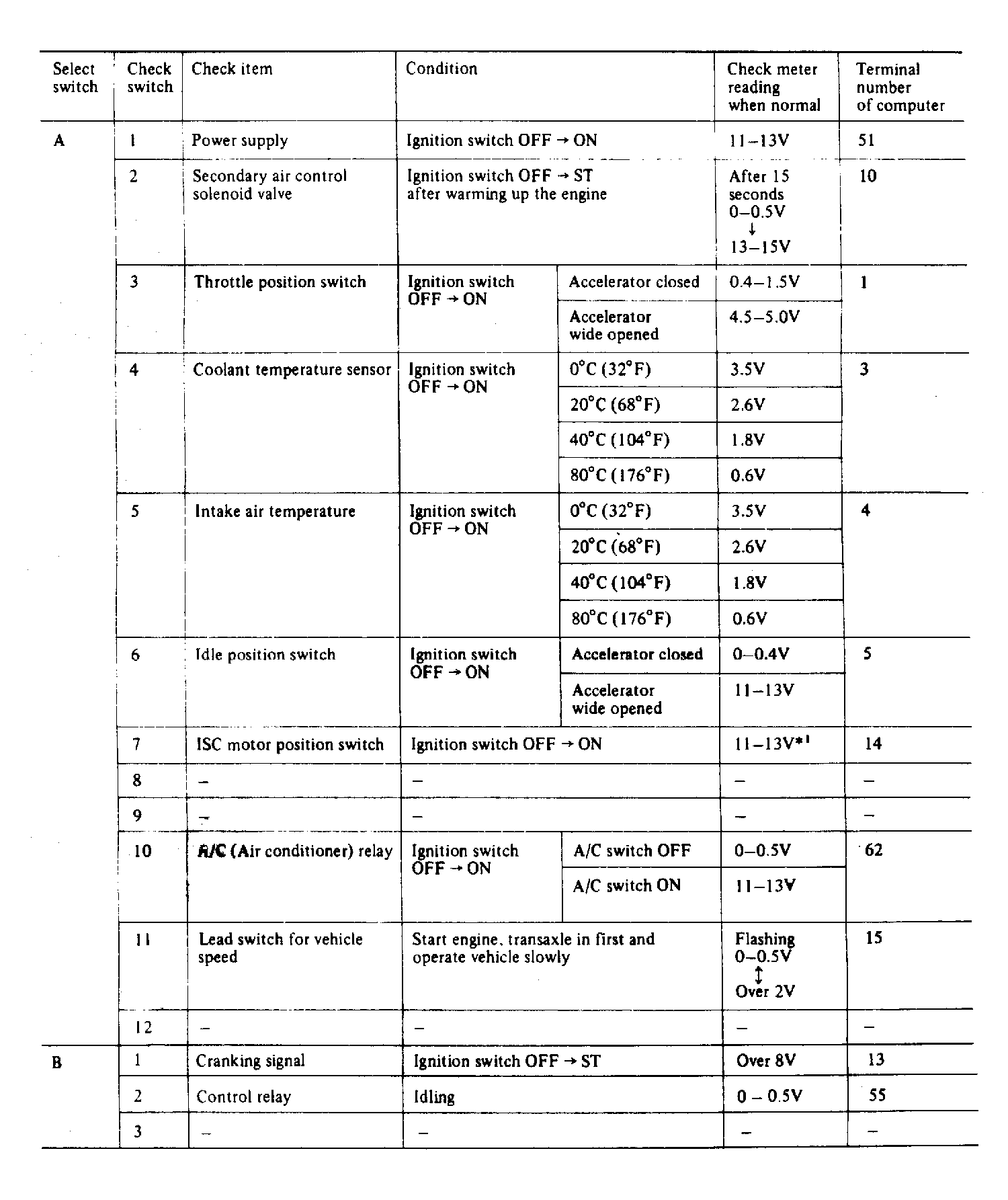

Fig 5: Output Signal Chart for All Others (Step 1 Cont.)

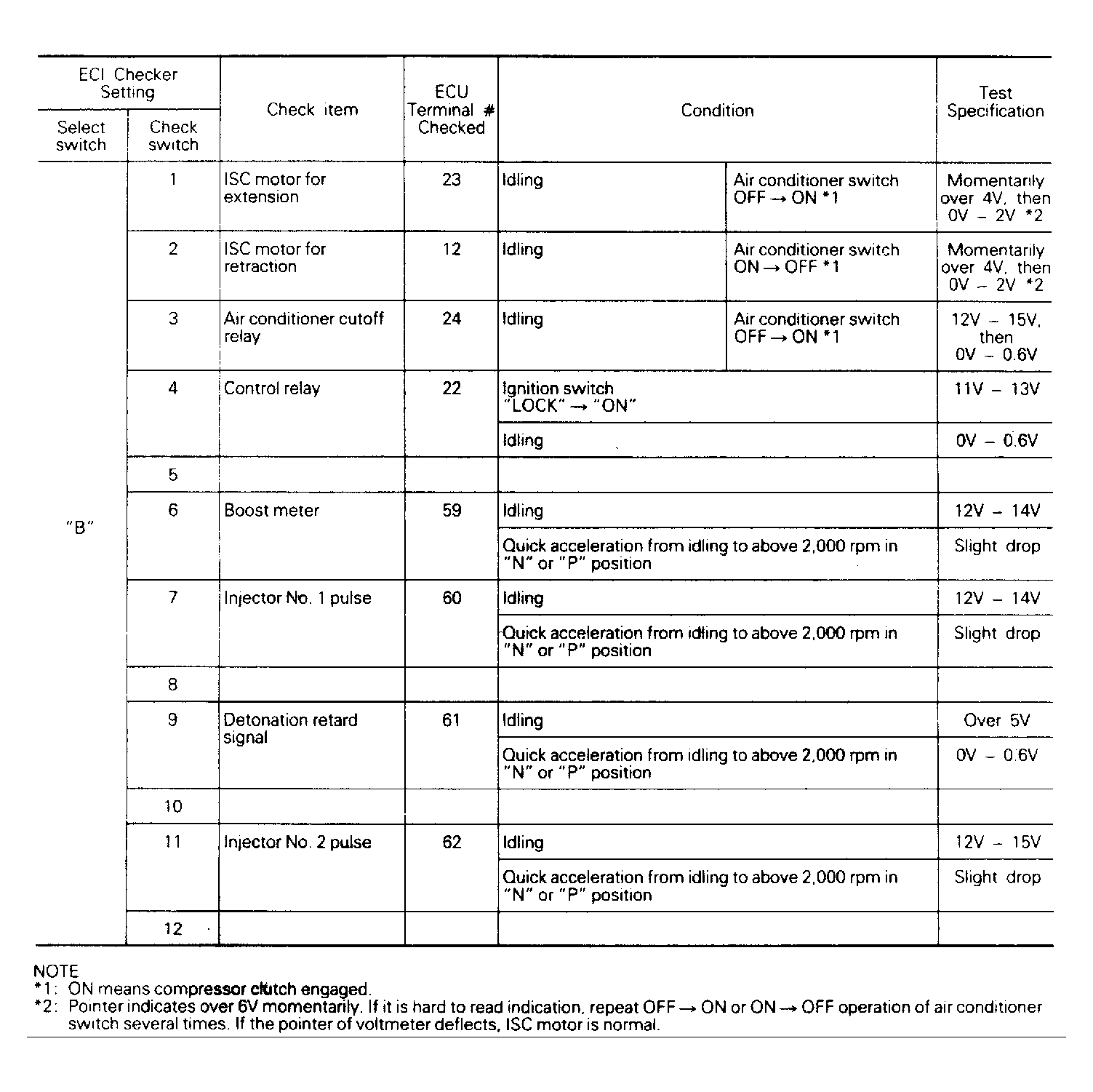

Fig 6: Output Signal Chart for All Others (Step 2)

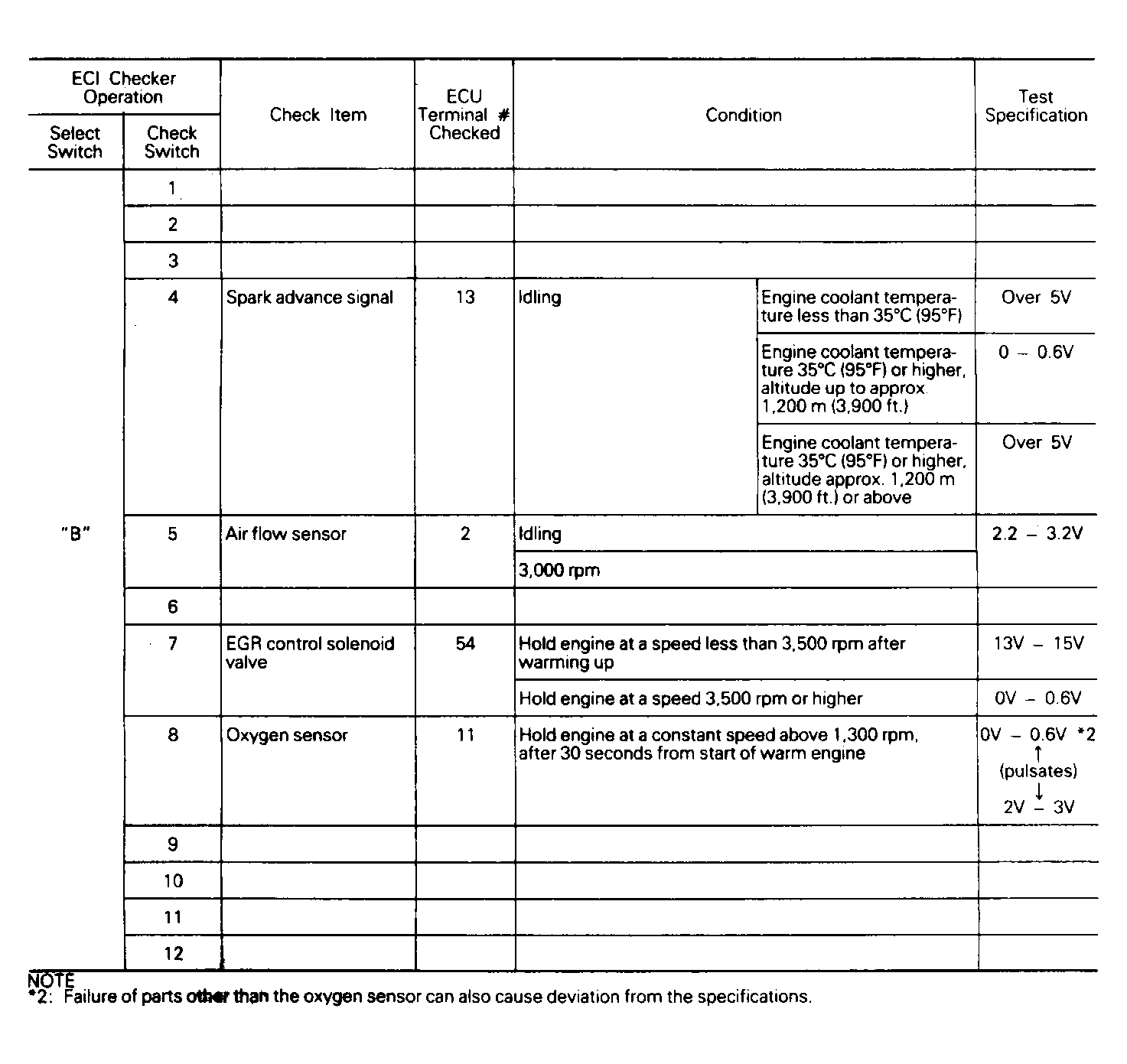

Fig 7: Output Signal Chart for All Others (Step 2 Cont.)
