Wiring Diagrams

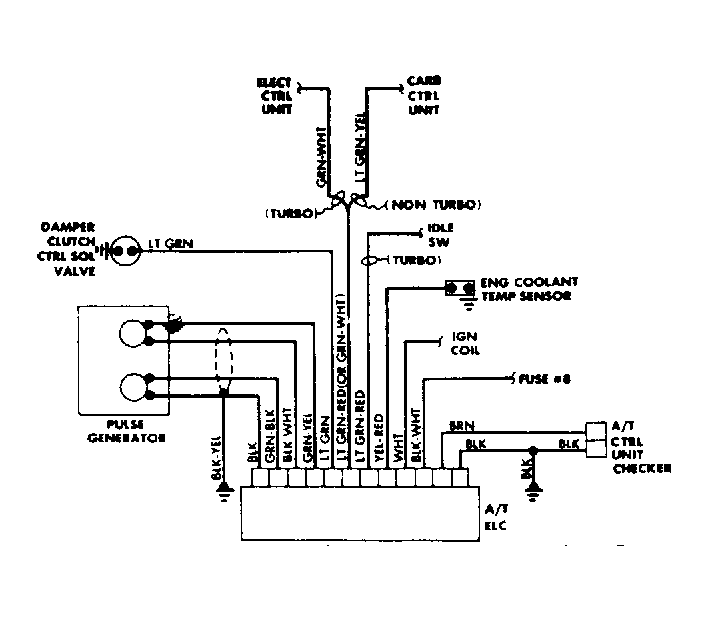

Fig 1: Wiring Diagram for Mirage

G61432

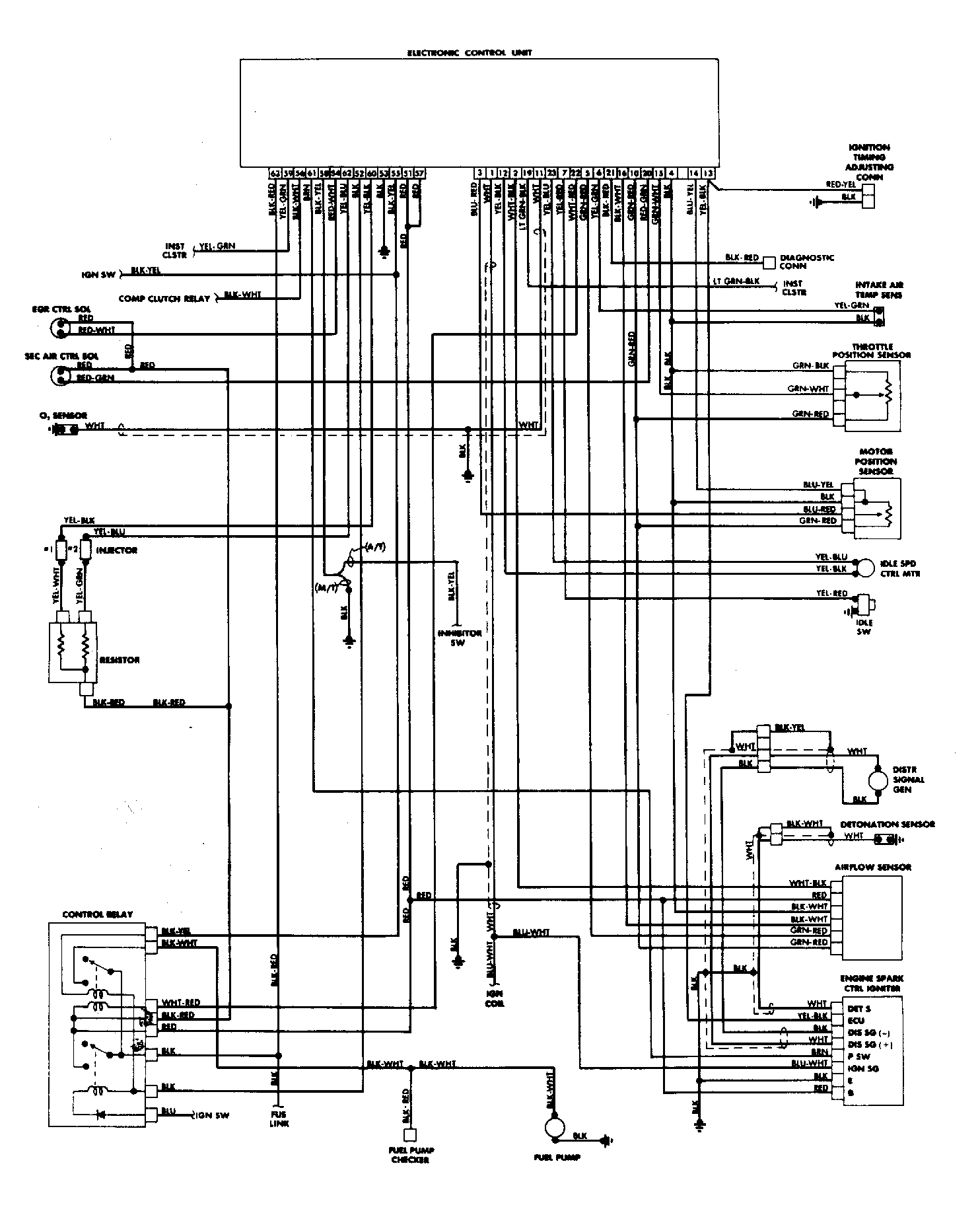

Fig 2: Wiring Diagram for Starion

G61411

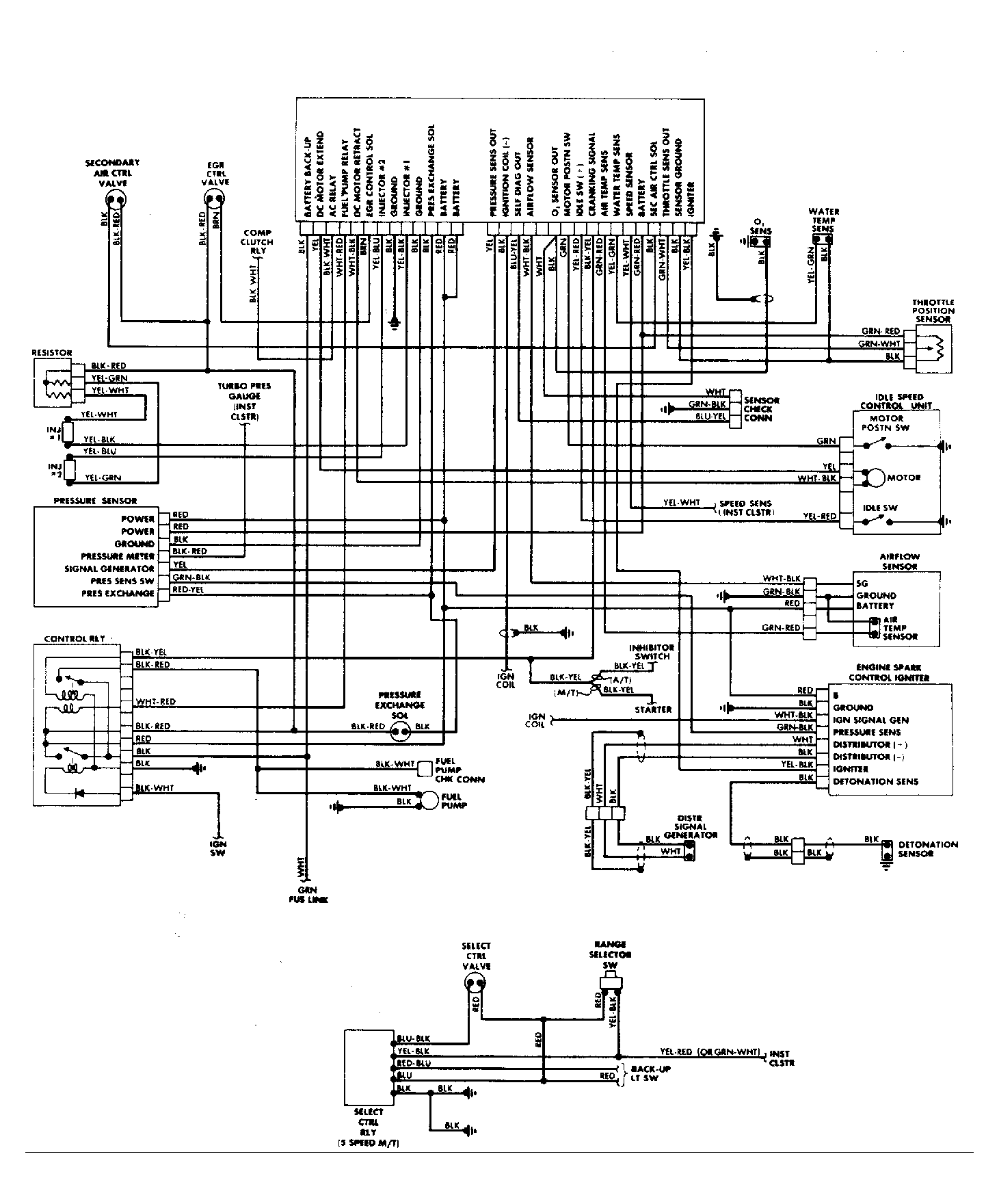

Fig 3: Wiring Diagram for Cordia & Tredia

G61412
