Fuel Injected

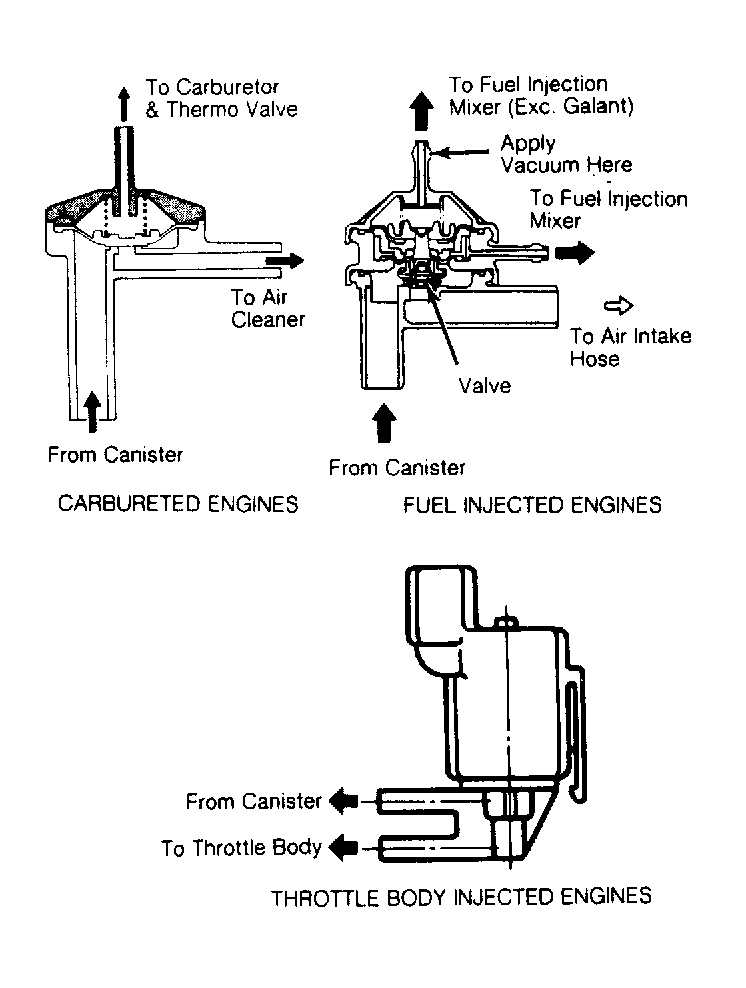

Disconnect hoses from purge control valve and remove valve. On all except Galant, Van and Wagon models, apply 7.8 in. Hg to top vertical nipple of purge control valve. On Galant, Van and Wagon models, apply 7.8 in. Hg to bottom nipple of purge control valve. See Figure . Blow into purge control valve's port to canister and check that air flows through valve. Replace valve if it does not operate as outlined.
