Idle Switch (ISC Servo)

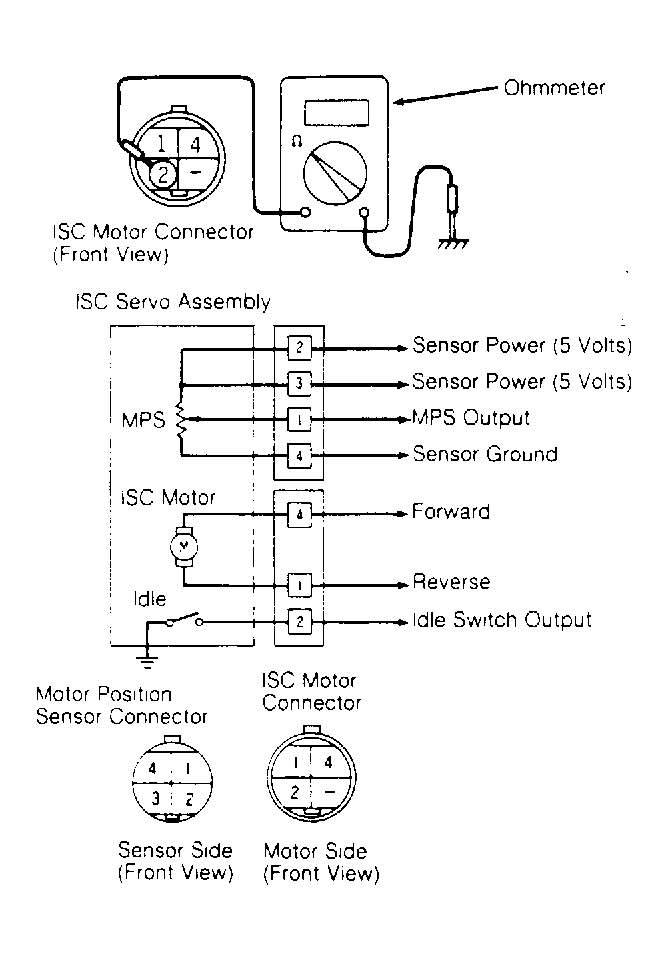

Ensure ignition switch is in "OFF" position. Disconnect ISC motor connector. Using an ohmmeter, check continuity between terminal No. 2 and ISC motor ground. See Figure . With accelerator pedal depressed, no continuity should be present. With accelerator released, continuity should be present. If as specified, replace ISC servo assembly.
