Jacking & Hoisting: OUTERBODY

These points designated on the outline of the body were specifically designed to facilitate the use of the vehicle's own jack. These jacking points are indicated by circular dots on the outline of the body. See Fig 1. If floor jack or hoist are used, extreme care should be taken to avoid damaging the outer body shell.

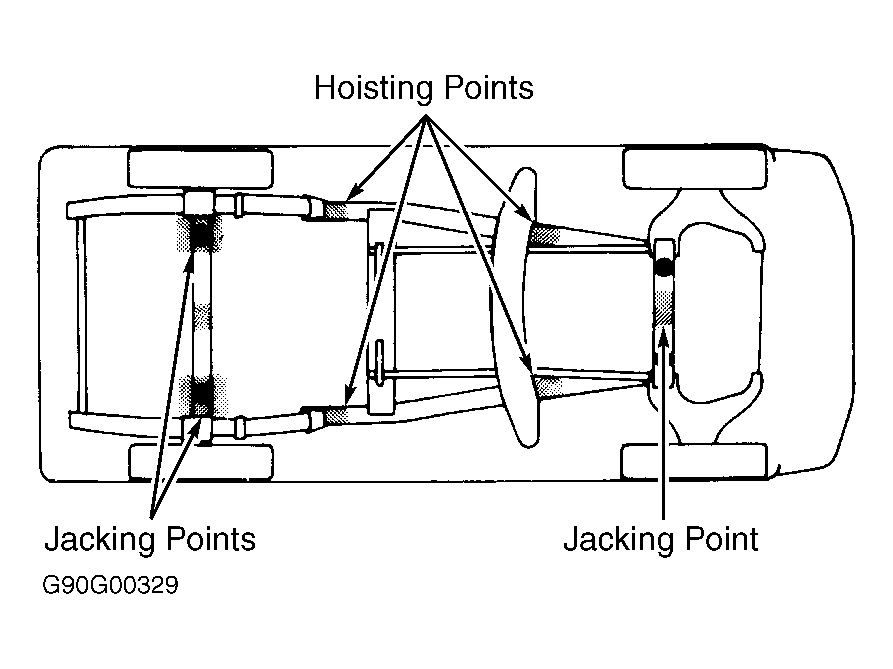

Fig 1: Sample: Jacking & Hoisting Points (Typical Illustration)

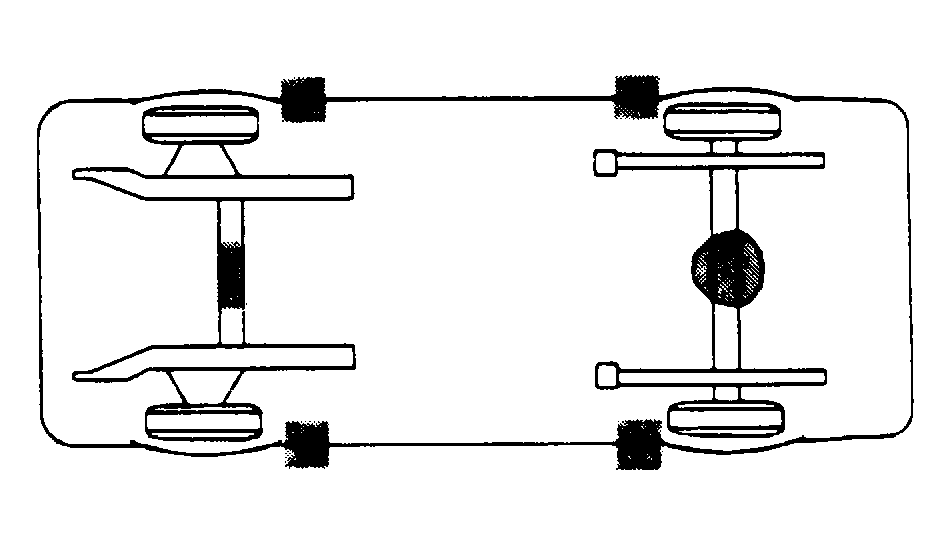

Fig 2: Jacking & Hoisting Points (Starion) Courtesy of Mitsubishi Motor Sales of America.

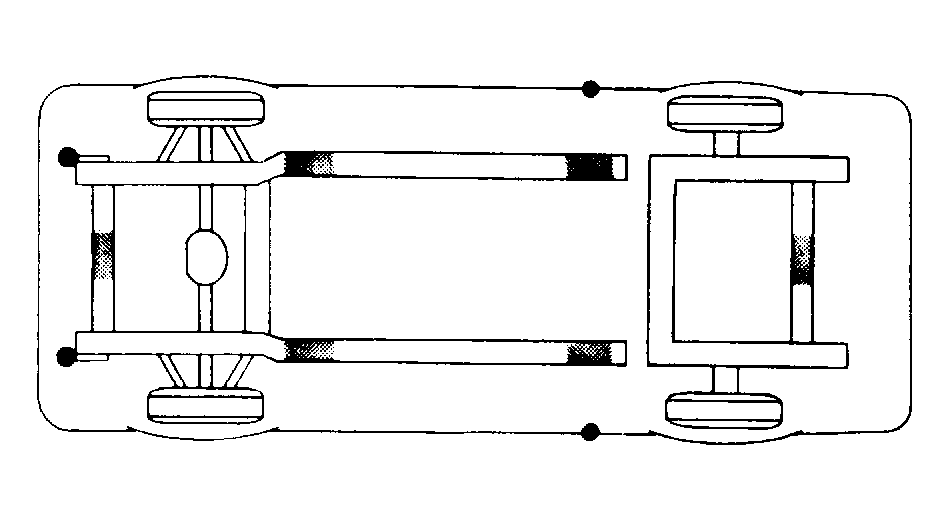

Fig 3: Jacking & Hoisting Points (Mirage) Courtesy of Mitsubishi Motor Sales of America.

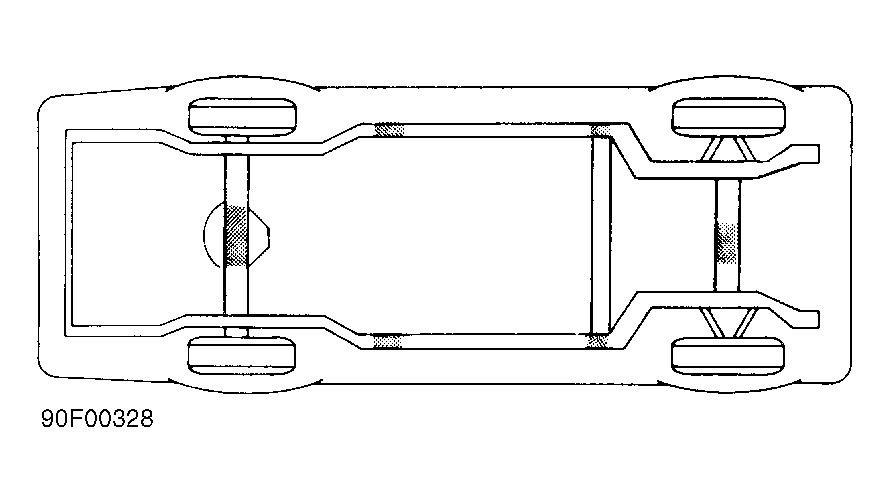

Fig 4: Jacking & Hoisting Points (Pickup) Courtesy of Mitsubishi Motor Sales of America.

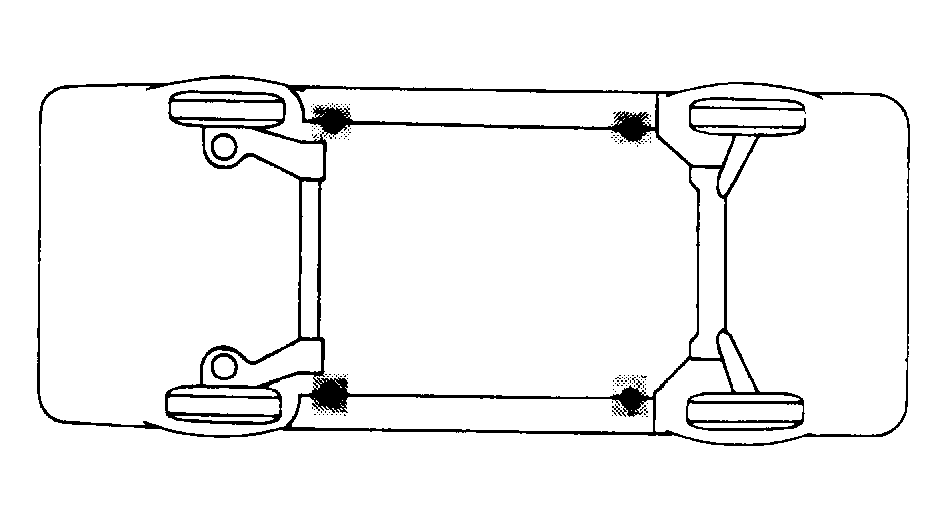

Fig 5: Jacking & Hoisting Points (Montero) Courtesy of Mitsubishi Motor Sales of America.

Fig 6: Jacking & Hoisting Points (Galant & Sigma) Courtesy of Mitsubishi Motor Sales of America.
