Harness Inspection

For harness inspection, see Fig 1 . For component locations and connector terminal identification, see Figure .

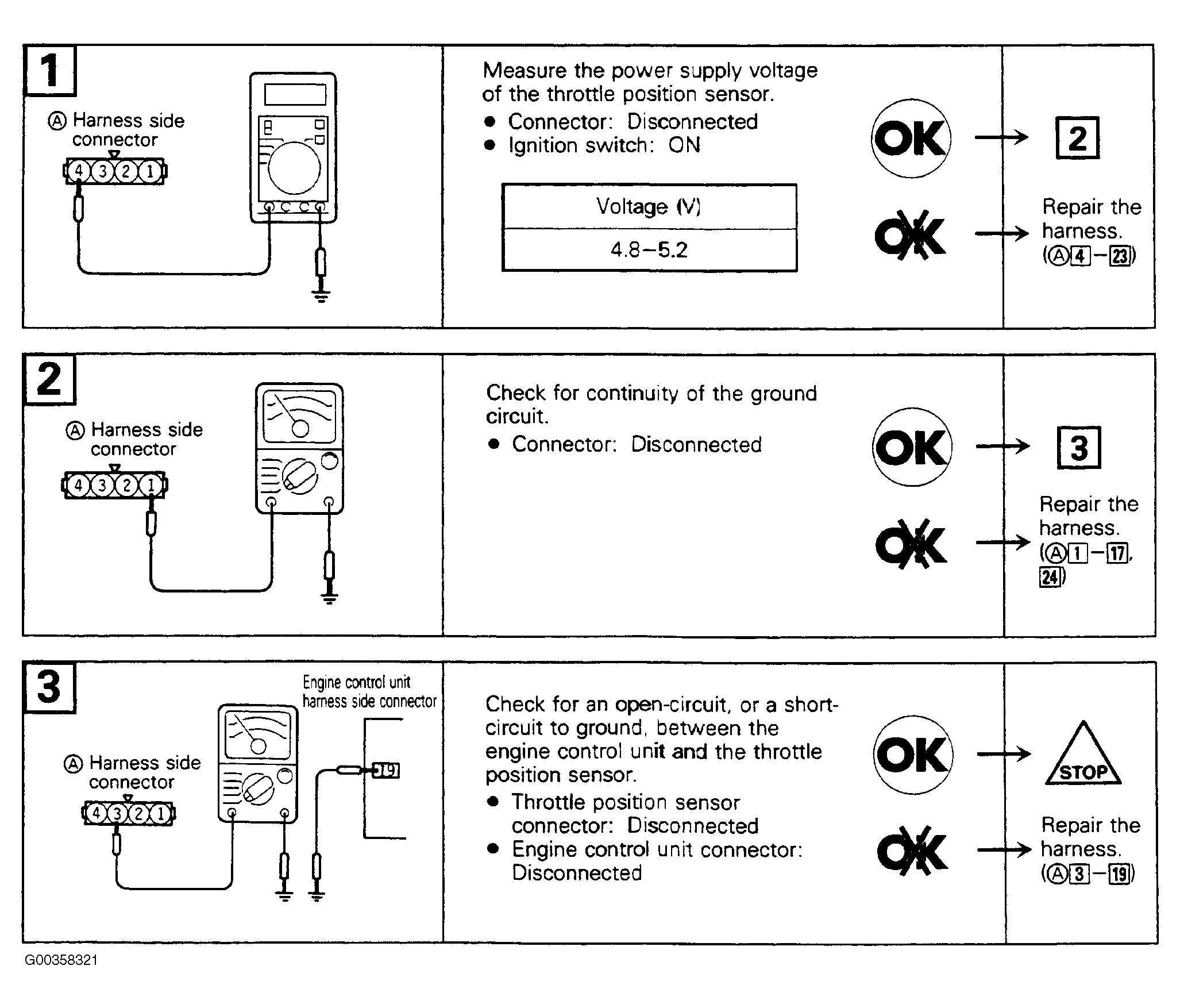

Fig 1: Throttle Position Sensor Harness Inspection
G00358321Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
