Inspection Using Multi-Use Tester

See COMPONENTS INSPECTION PROCEDURE USING MULTI-USE TESTER  . For normal condition, see Fig 1 .

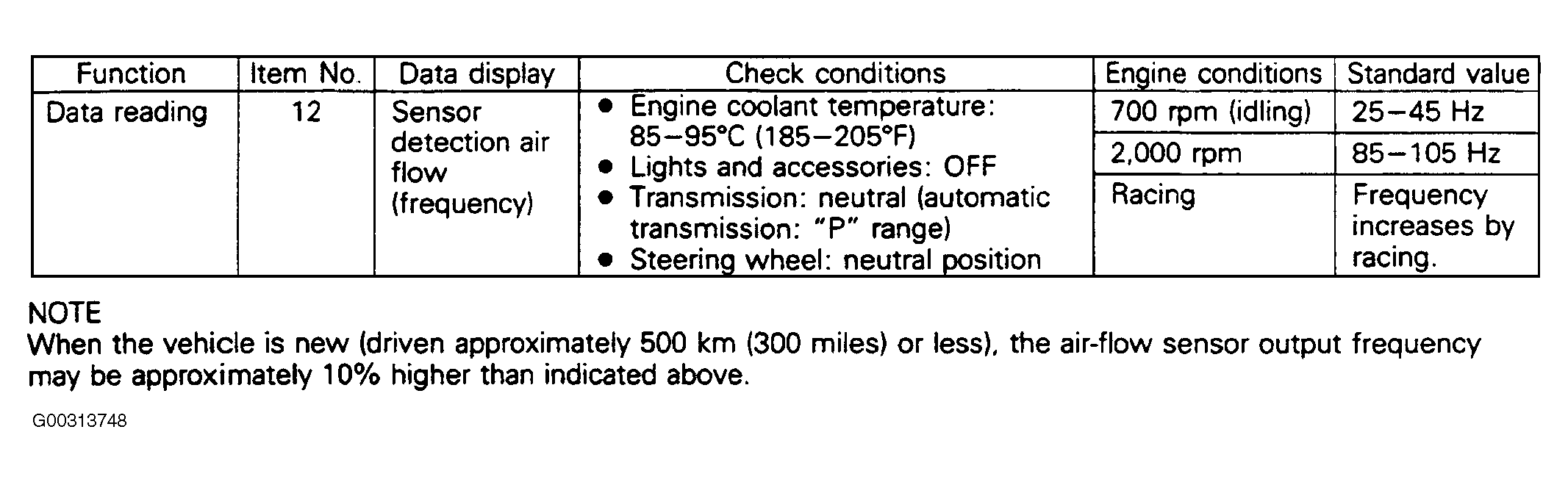

Fig 1: Airflow Sensor Inspection Using Multi-Use Tester
G00313748Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
