Inspection Using Multi-Use Tester

See COMPONENTS INSPECTION PROCEDURE USING MULTI-USE TESTER  . For normal condition, see Fig 1 .

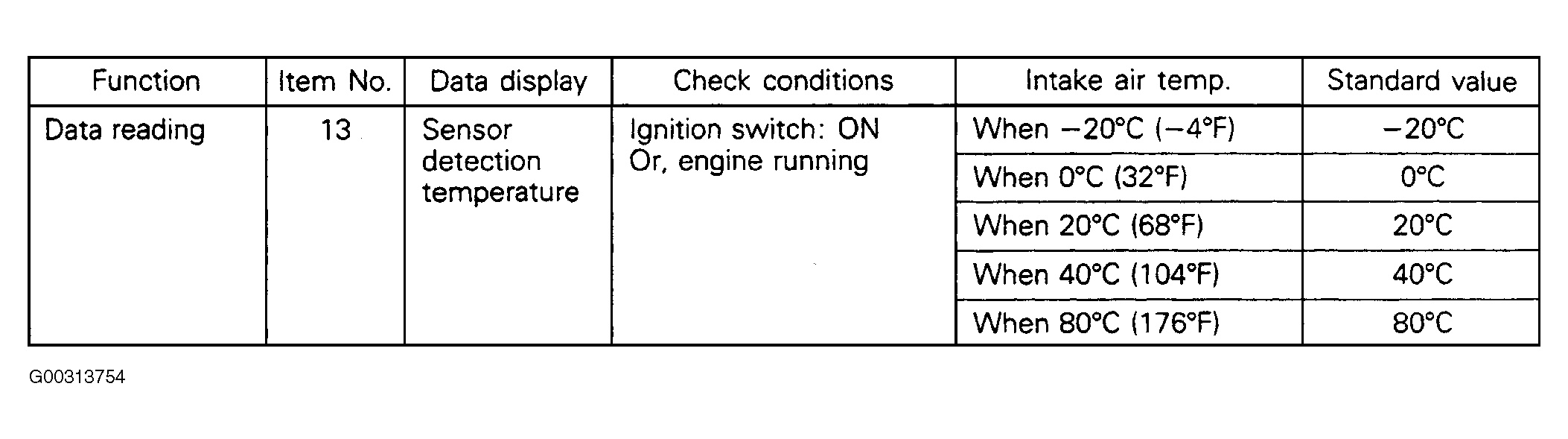

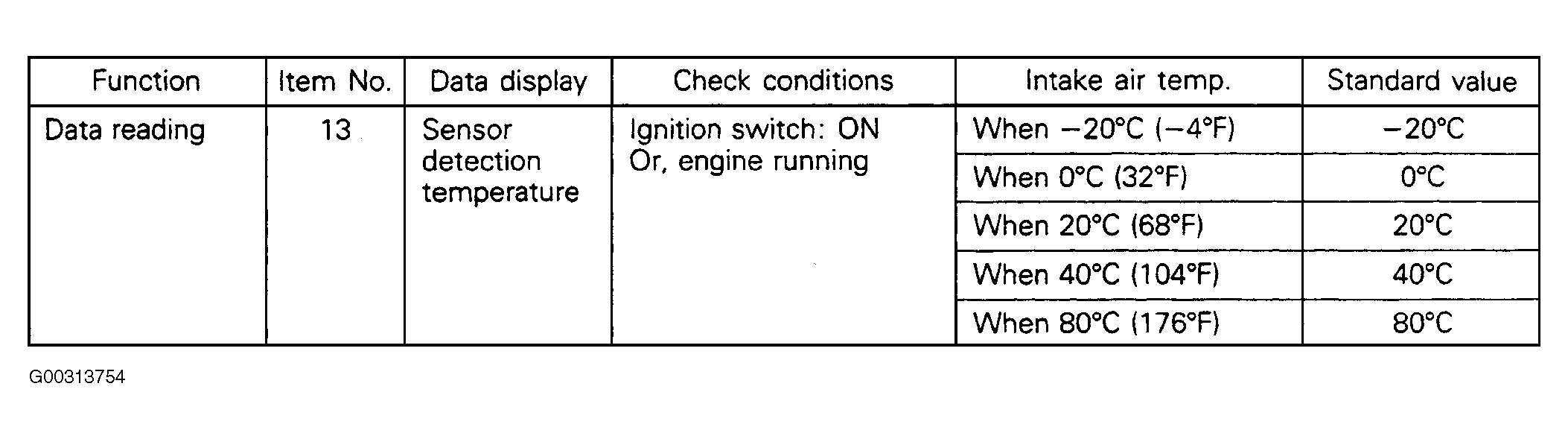

Fig 1: Intake Air Temperature Sensor Inspection Using Multi-Use Tester
G00313754Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
