Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|

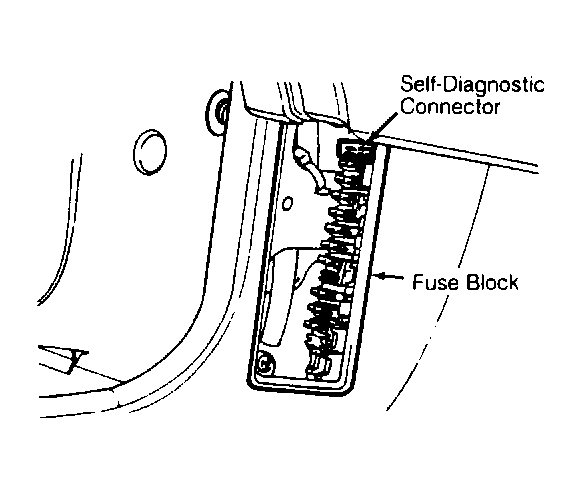

| Fuse Block | Under left side of dash. See Figure . | |
| Fusible Links | ||
| Main | Near positive terminal of battery. | |
| Sub | In relay block, in left front corner of engine compartment. | |
| Relay Block (Engine Compartment) | In left front corner of engine compartment. | |

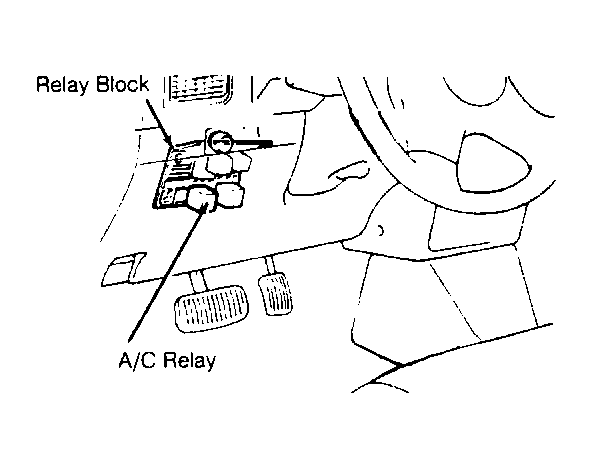

| Relay Block (Passenger Compartment) | Under left side of dash. See Figure . | |
