Firing Order (Eclipse 1.8L)

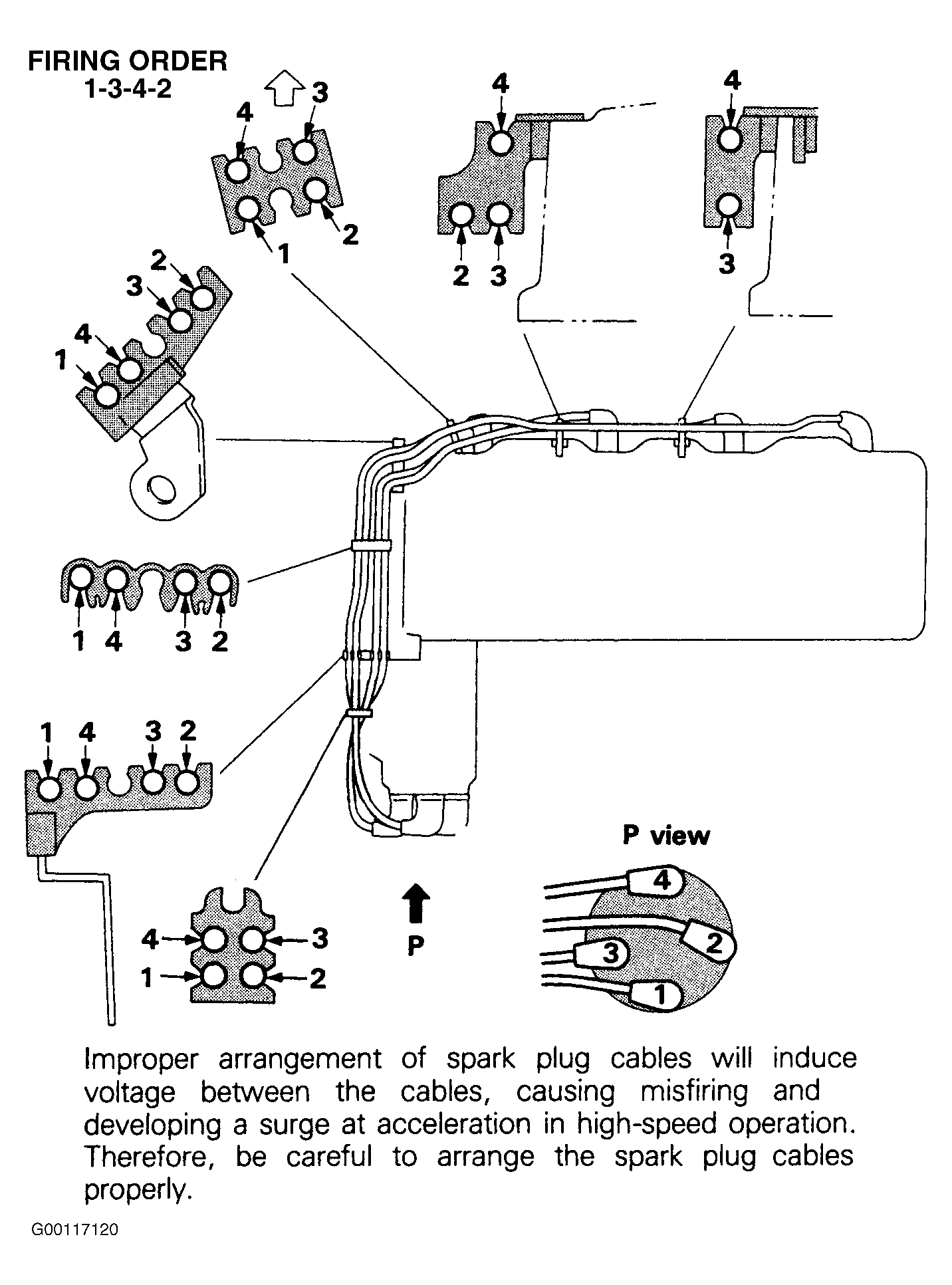

Fig 1: Firing Order & Plug Wire Routing (Eclipse 1.8L)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
