Power Transistor (Eclipse 2.0L)

Disconnect power transistor connector. Using an analog ohmmeter, connect positive ohmmeter lead to terminal No. 3 and negative lead to terminal No. 1. See Fig 1 -Fig 2 . Ensure there is no continuity.
Using a 1.5-volt dry cell battery, connect positive end of 1.5-volt battery to power transistor terminal No. 2 and negative end to terminal No. 3. Ohmmeter should now read continuity between power transistor terminals No. 3 and No. 1.
Connect positive end of 1.5-volt battery to power transistor terminal No. 5 and negative end to terminal No. 3. Connect positive ohmmeter lead to terminal No. 3 and negative lead to terminal No. 6. Ohmmeter should read continuity. Replace power transistor if it does not test as described.

Fig 1: All Models Except Eclipse 2.0L Power Transistor Connector Identification (DIS Models)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

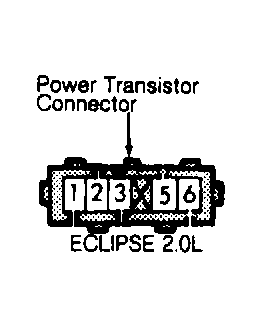

Fig 2: Eclipse 2.0L Power Transistor Connector Identification (DIS Models)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
