Idle Speed Control (ISC) Motor Operation Test
CAUTION:
DO NOT
apply more than 6 volts to ISC motor.

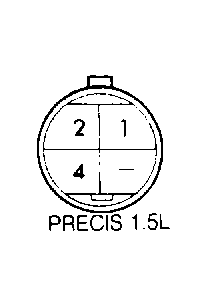

Connect 6-volt DC source across terminals No. 1 and 2 of ISC motor connector. See Fig 1 . Reverse polarity of 6-volt source by reversing leads. If motor does not operate in both directions, replace ISC motor assembly.
