Passive Restraint Systems: Wiring Diagram

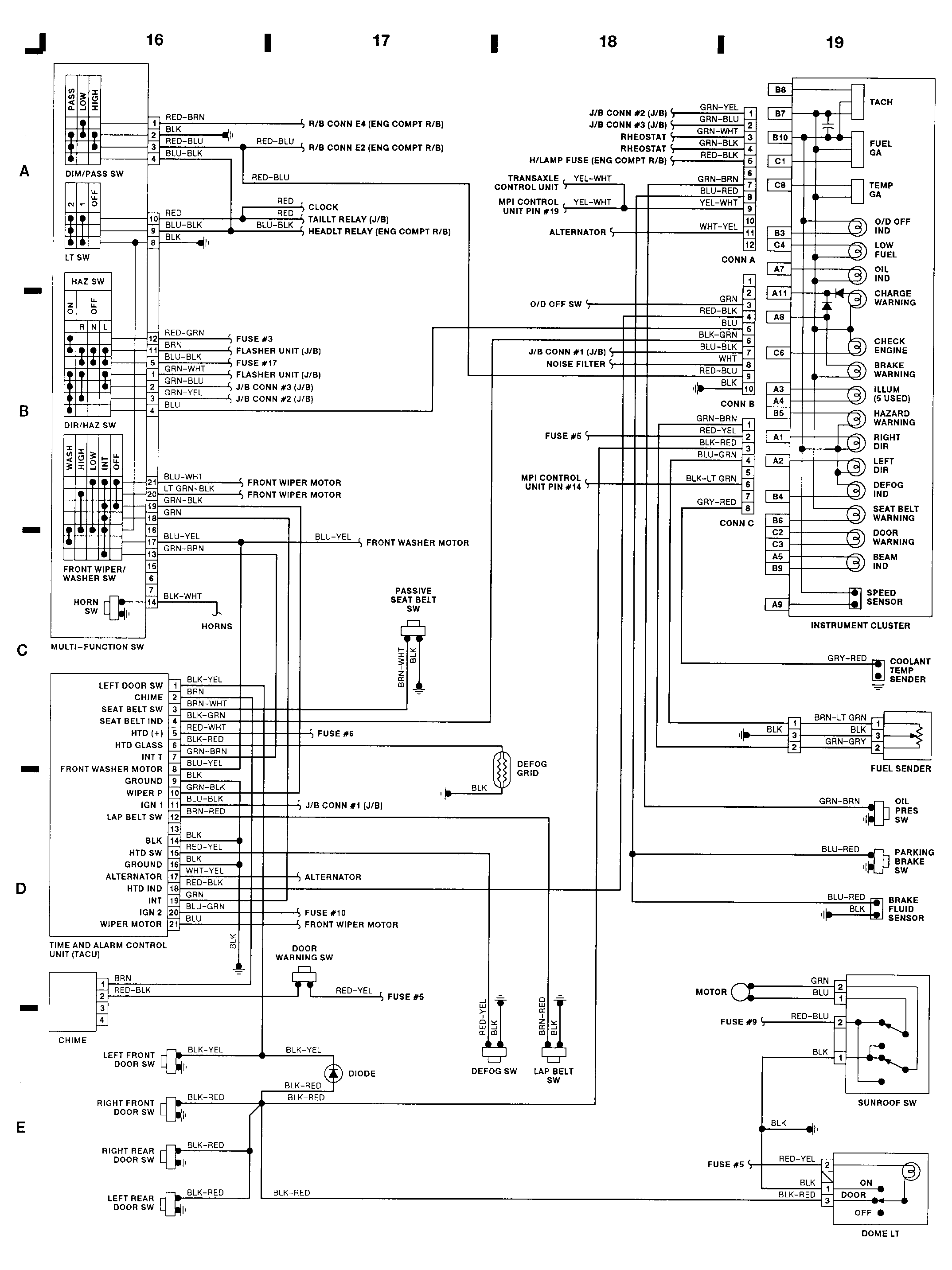

Fig 1: Instrument Cluster, Time & Alarm Control Unit, & Multifunction Switch Wiring Diagram (Grid 16-19)
G92I11575
